8200
Hydrel

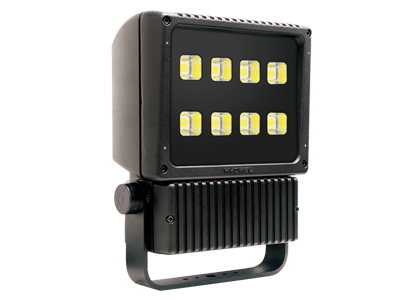

8200 LED Floodlight

Floodlight - High Output LED
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Specifications
Hydrel 8200 Series LED floods are designed to provide long-lasting, energy efficient illumination even in the most demanding environments. Ready to withstand the rigors of weather, high pressure sprinkler heads, corrosive fertilizers and even lens impacts that would destroy most products, Hydrel 8200 Series LED floods are particularly suited for ground mounted, upwardly aimed applications. With an expected service life of over 100,000 hours, Hydrel 8200 Series LED floods avoid the multiple lamp changes associated with HID sources. A precision optical system provides controlled beam angles with excellent uniformity and superior glare control for effective floodlighting. Generating up to 35,000 lumens, the Hydrel 8200 LED flood can easily replace over a 1000W metal halide flood, saving 66% in energy costs.
Read More
Read Less
Light Source LED - Static
Lumens 34,900 LM
CCT / LED Color 3000 K, 4000 K, 5000 K, Amber Limited Wavelength, Amber Phosphor Corrected, Blue, Green, Red
CRI 70
Product Type Floodlight
Environmental Listing Wet Location
Regulatory Listing cCSAus, NOM
Light Distribution Flood, Horizontal Flood, Medium Flood, Narrow Flood, Vertical Flood, Wide Flood
Fixture Wattage 220, 259, 300, 338, 371, 77
Voltage Rating 120-277
Mounting Type Knuckle, Pole Mount, Surface, Yoke
Color Beige, Black, Bronze, Brown, Gray, Green, Silver, White
Series 8200

Read More Read Less
