KBR8 LED

Round LED Bollard

By Lithonia Lighting

    Buy America(n)
  • Overview
  • Specifications

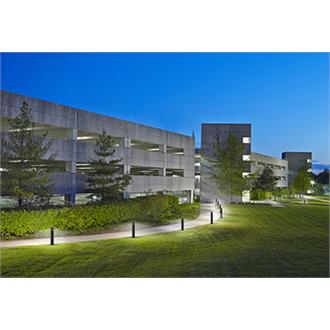

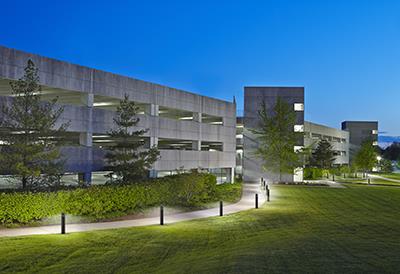

The rugged construction and clean lines of the KBR bollard is ideal for illuminating building entryways, walking paths, and pedestrian plazas, as well as any other location requiring a low mounting height light source with fully cutoff illumination.

CONSTRUCTION
One-piece 8-inch round extruded aluminum shaft with thick side walls for extreme durability, a high-impact clear acrylic lens and welded top cap. Die-cast aluminum mounting ring allows for easy leveling even in sloped locations and a full 360-degree rotation for precise alignment during installation. Three ½” x 11” anchor bolts with double nuts and washers and 3 ¾” bolt circle template ensure stability. Overall height is 42” standard.

FINISH
Exterior parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering for maximum retention of gloss and luster. A tightly controlled multi-stage process ensures a minimum 3-mil thickness for a finish that can withstand the elements without cracking or peeling. Available in both textured and non-textured finishes.

OPTICS
Two fully cutoff optical distributions are available: symmetrical and asymmetrical. IP66 sealed LED light engine provides smoothly graduated illumination without any uplight. Light engines are available in standard 4000K (>70 CRI) or optional 3000K (>80 CRI) or 5000K (67 CRI). Limited-wavelength amber LEDs are also available.

ELECTRICAL
Light engines consist of high-efficacy LEDs mounted to metal-core circuit boards to maximize heat dissipation and promote long life (L95/100,000 hours at 700mA at 25°C). Class 2 electronic drivers are designed for an expected life of 100,000 hours with < 1% failure rate. Electrical components are mounted on a removable power tray.

Read More
Read Less
Shape Round
Light Source LED - Static
Lumens 300 LM, 1000 LM, 2000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K, Amber Limited Wavelength, Amber Phosphor Corrected
CRI 70
Product Type Bollard
Compliance Listing BAA
Regulatory Listing UL
Voltage Rating 120, 208, 240, 277, 347, MVOLT
Color Black, Bronze, Silver, White
Mounting Type Anchor Based
Series KBR8, DSXB

Read More Read Less
