By Peerless

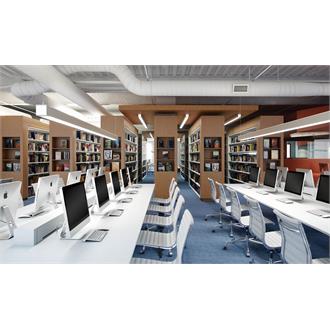

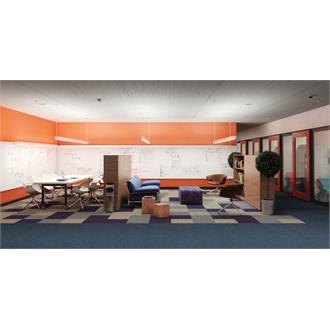

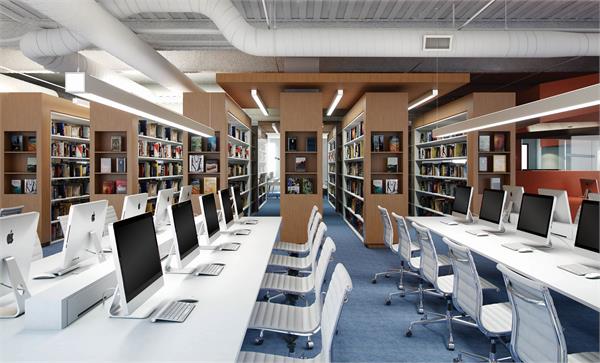

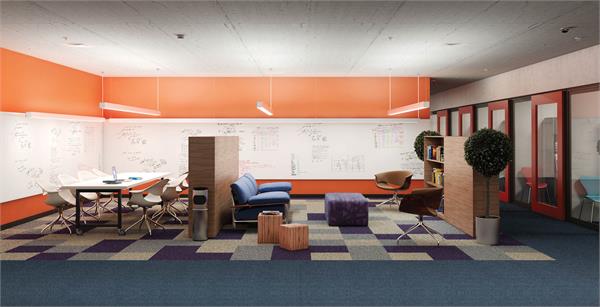

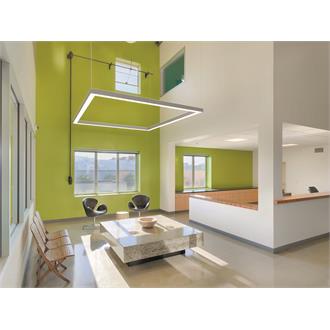

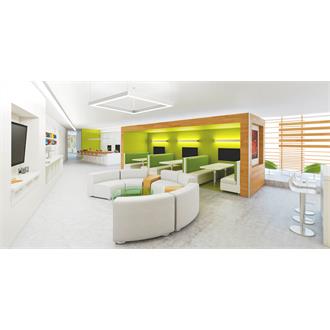

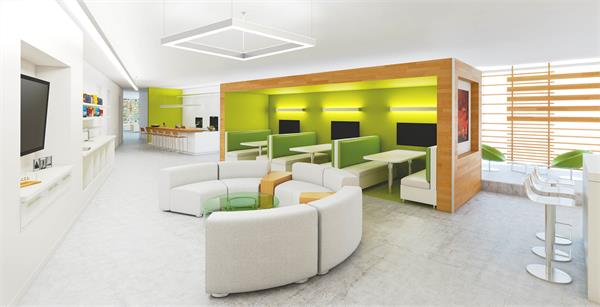

Available in multiple indirect-direct distributions (70/30, 50/50 or 30/70), Square I/D is specifiable with high and low lumen packages that make the luminaire well suited for a variety of applications.

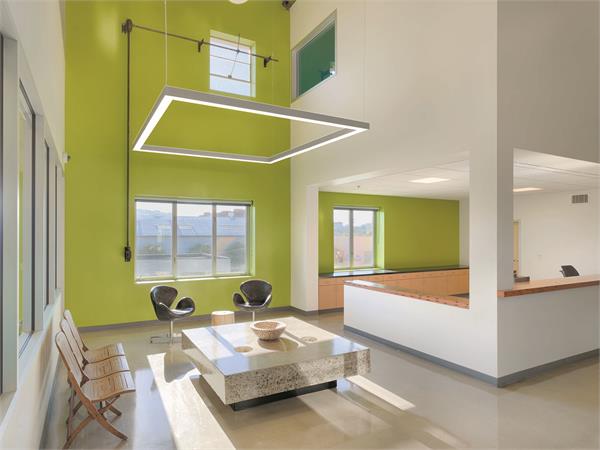

Square I/D can be specified as nLight®-enabled to provide network controls connectivity, digital lumen management or both. It is also available with an integrated sensor for daylight dimming and occupancy detection control. Plus, Square I/D can be configured with an “L” connector to provide seamless corner illumination.
Square luminaires feature glare-free, Softshine® comfort optics and eldoLED® drivers that provide smooth, flicker-free digital dimming to black (0.1% low end).
|
|
Shape | Square |
Light Source | LED - Static |
Lumens | 400 LM, 500 LM, 800 LM, 900 LM |
CCT / LED Color | 3000 K, 3500 K, 4000 K |
CRI | 80 |
Product Type | Linear |
Compliance Listing | BAA, Chicago Plenum |
Environmental Listing | Damp Location |
Regulatory Listing | CSA |
Dimming Protocol | 0-10V, DALI |
Mounting Type | Suspended |
Voltage Rating | 120, 277, 347 |
Series | SQM4 |
