VTL

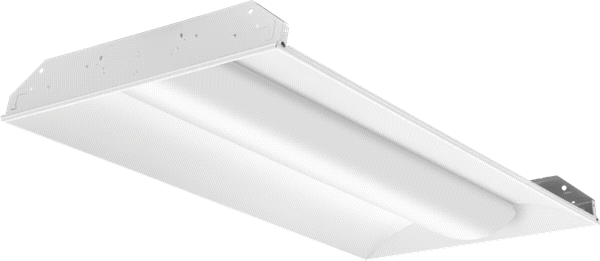

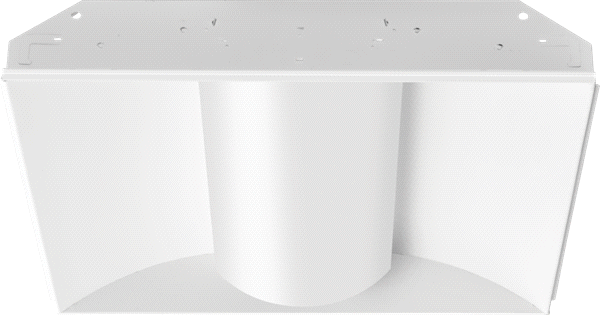

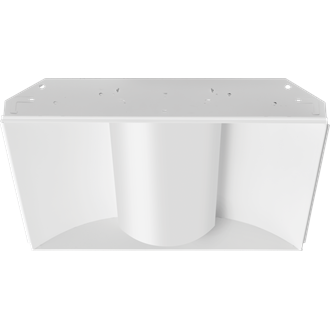

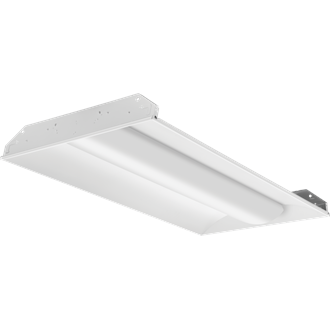

VT Series LED Troffer

By Lithonia Lighting

    DLC Standard / PremiumBuy America(n)
  • Overview
  • Specifications

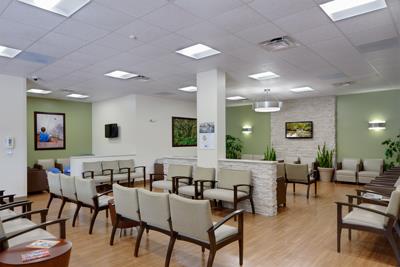

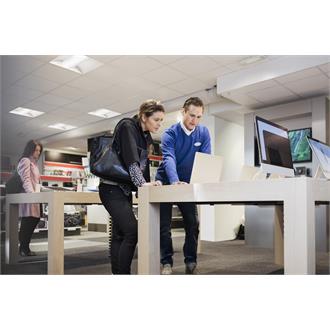

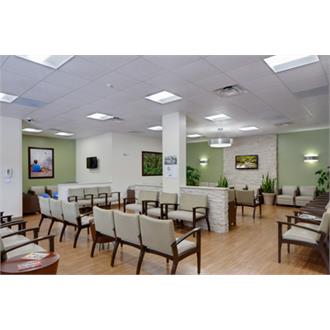

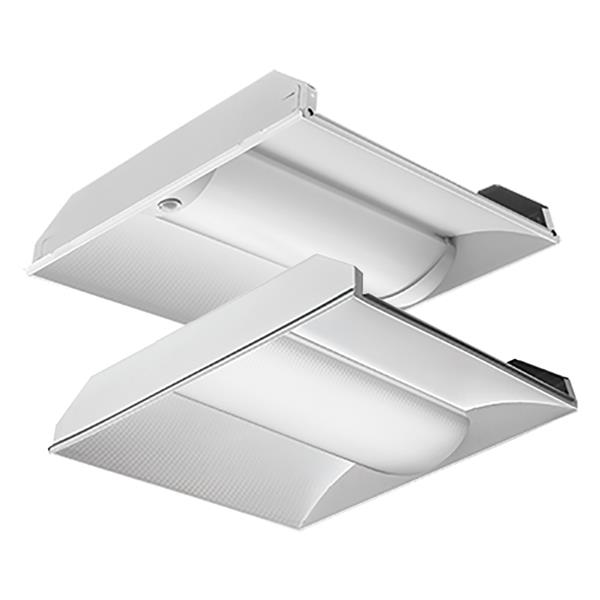

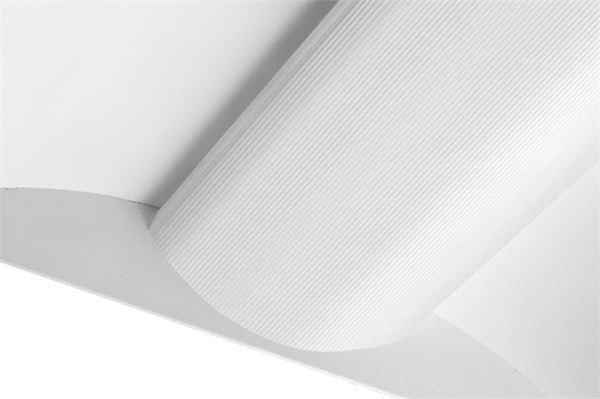

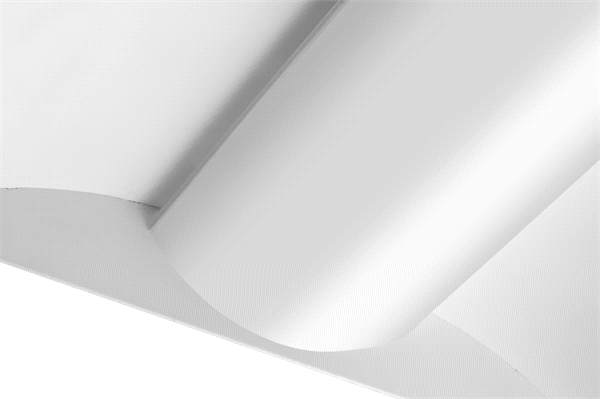

The VTL and VTS series offer wide center elements with volumetric distribution, embedded nLight® lighting controls options and a sleek design. This high-performance fixture is ideal for commercial offices, education, healthcare, and retail applications.
Read More
Read Less
Size 1x4, 2x2
Shape Rectangular, Square
Light Source LED - Static
Lumens 1500 LM, 1700 LM, 2000 LM, 2400 LM, 3000 LM, 3300 LM, 3400 LM, 3600 LM, 4000 LM, 4800 LM, 6000 LM, 7200 LM, 8500 LM, 10,000 LM, 12,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing BAA, Chicago Plenum, DLC Premium, DLC Standard
Environmental Listing IC
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Not Applicable
Fixture Wattage 15.9, 17.6, 26.3, 26.6, 33.1, 35.6, 38.3, 42.4, 49, 55, 57
Voltage Rating 120, 120-277, 277, 347, HVOLT
Color White
Mounting Type Recessed
Series 2VTL2, 2VTL4, VTL4, RK22VTL4, RK22VTL2, RK2VTL4, 2VTS4, 2VTS2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET VT Series LED (VTL), 2'x2' Volumetric Luminaire VT Series LED (VTL), 2'x2' Volumetric Luminaire 5/4/2022 View
    SPEC SHEET VTL 2x2 Spec Sheet 2VTL2 and 2VTS2 5/4/2022 View
    SPEC SHEET VTL 2x4 Spec Sheet 2VTL4 and 2VTS4 5/4/2022 View
    SPEC SHEET VTL-1X4 VT Series LED (VTL), 1'x4' Volumetric Luminaire 5/4/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions SMKSH Installation Instuctions REV B.pdf Installation guide with images 8/5/2019 View
    Installation Instructions VTL LED Instructions.pdf VTL Installation Instructions View
    Material Safety Data Sheet Nicd-Sds.pdf MSDS for all Power Sentry NiCad brand battery packs View
    Material Safety Data Sheet PS1055LCP MSDS - C98- IFR26650N3000 3S1P MSDS sheet for PS1055LCP (PS10LBP) 4/13/2022 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet VTL Series Replacement Part Kits 2.6.2020.pdf VTL Series Replacement Parts 5/12/2021 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Catalogs Lithonia Lighting Commercial Indoor Guide Comparison of Key Panels, Troffers and Linear Fixtures 9/11/2020 View
  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information (Lighting Fixtures)

    •  Contact Us (Lighting Fixtures)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


Compatible Products

  • Accessories

Product Family

Lithonia Lighting

Volumetric Recessed Lighting | VT ...

The VT Family includes a volumetric recessed, surface mount and linear solution along with relight kit, all with one matching lo...
