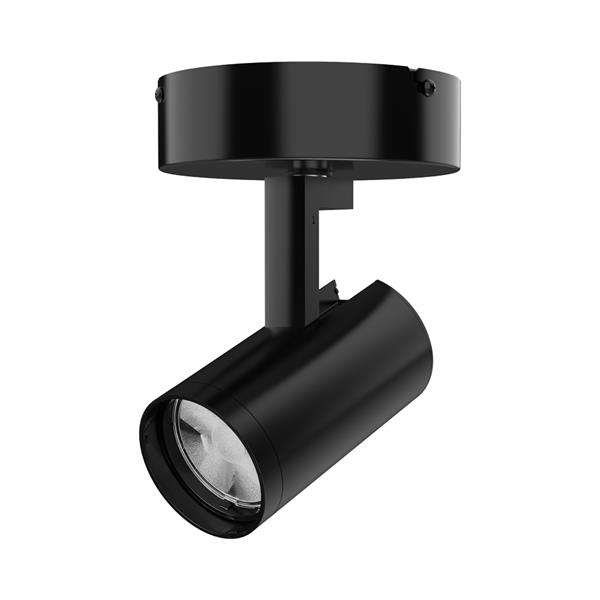

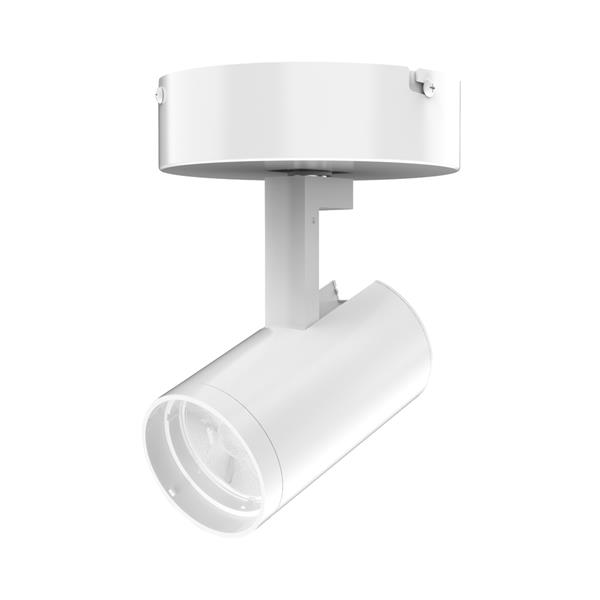

R620L CPY Canopy Mount Fixture

Trac-Lites™ Adjustable Beam LED Cylinder Trac Head with Direct Canopy Mount Option
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Specifications
The R620L Series 15W Adjustable Beam LED Cylinder Series with Canopy Mount option is an economical and affordable fixture, with a simple and timeless cylindrical aesthetic. It features a proprietary, patented optical system that enables the beam distribution to be adjusted continuously between 17° and 53° simply by rotating the front bezel, without the use of tools or requiring any additional accessories. This makes the R620L perfect for applications that require a range of beam patterns or where the desired beam pattern is unknown at the time of specification/purchase. These fixtures can be mounted on horizontal surfaces (ceilings) or vertical surfaces (walls) or any orientation in between. Ideally suited to help with energy code compliance, the CPY option also enables 120V, 277V, or 347V operation and enables phase or 0-10V dimming.
Read More
Read Less
Shape Cylinder
Light Source LED - Static
Lumens 1200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Track Head
Environmental Listing Damp Location, Dry Location
Regulatory Listing C-UL-US, cUL, UL
Dimming Protocol 0-10V, Electronic Low Voltage, Forward Phase, Incandescent, Magnetic Low Voltage, Reverse Phase
Color Black, White
Mounting Type Surface, Track/Monopoint
Voltage Rating 120-277, 347
Fixture Wattage 16
Track Mounting Adapter CANOPY
Series R620L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet R620L.pdf R620L 15W Adjustable Beam LED Cylinder 10/14/2024 View
    Spec Sheet R620L-DIM.pdf R620L Dimmer Compatibility 9/8/2025 View
