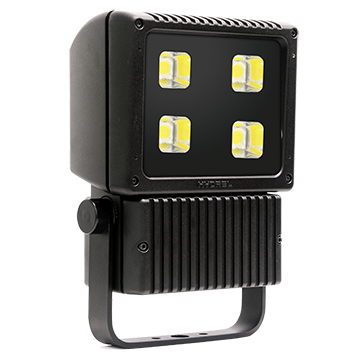

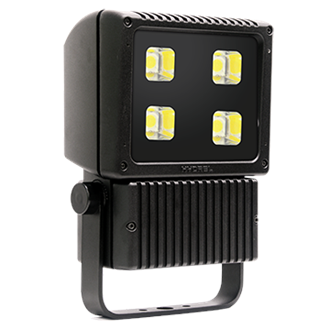

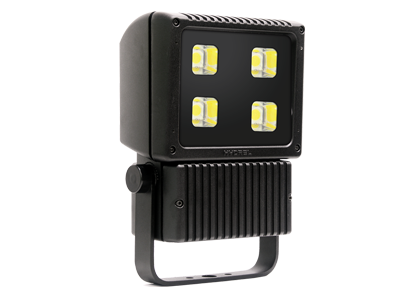

8100 LED Hazardous Floodlight

Hazardous Location LED Floodlight

By Hydrel

    Buy America(n)
  • Overview
  • Specifications
Hydrel 8100HL Series LED floods listed for hazardous locations and 3G vibration ratings. They are designed to provide long-lasting, energy efficient illumination even in the most demanding environments. Ready to withstand the rigors of weather, high pressure sprinkler heads, corrosive fertilizers and even lens impacts that would destroy most products, Hydrel 8100HL Series LED floods are particularly suited for ground mounted, upwardly aimed applications. With an expected service life of over 100,000 hours, Hydrel 8100HL Series LED floods avoid the multiple lamp changes associated with HID sources. A precision optical system provides controlled beam angles with excellent uniformity and superior glare control for effective floodlighting. Generating up to 18,000 lumens, the Hydrel 8100HL LED flood can easily replace a 400W metal halide flood, saving 65% in energy costs.
Read More
Read Less
Light Source LED - Static
Lumens 18,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Floodlight
Compliance Listing BAA
Environmental Listing Class I, Div 1, Class II, Div 2, IP67, Wet Location
Regulatory Listing CSA, CSAus, NOM
Dimming Protocol Forward Phase
Light Distribution Flood, Horizontal Flood, Medium Flood, Narrow Flood, Vertical Flood, Wide Flood
Fixture Wattage 100, 110, 129, 163
Voltage Rating 120-277
Mounting Type Pole Mount, Surface, Yoke
Color Beige, Black, Bronze, Gray, Green, Silver, White
Series 8100HL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 8100HL 4COB 8100 LED hazardous floodlight 5/17/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 8100HL LED Installation Sheet.pdf Hydrel 8100HL LED Installation Sheet View
    Installation Instructions ABL Form 503_203.pdf ABL LED General Warning, Form 503-203 View
    Installation Instructions ABL General Warnings form no_503_204.pdf ABL General Warning, Form 503-204 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions 8000 LED Optics Installation.pdf 8000 LED Optics Installation View
    Replacement Part Spec Sheet PARTS-8100.pdf Replacement Parts sheet for 8100 series flood 3/25/2021 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Product Presentation Hydrel 8000 Series LED Floodlight Presentation - July 2015.pdf View
