OLB
- Overview
- Specifications

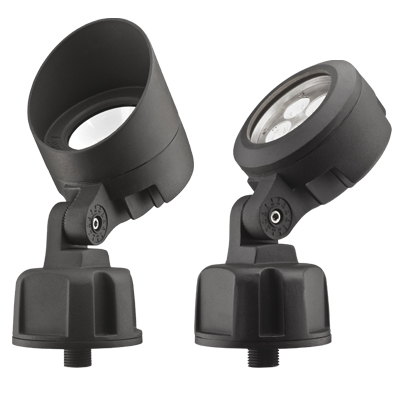

The OLB LED Bullet Floodlight is a long-lasting energy-efficient landscape flood light. Available with spot or flood optics making it ideal for many commercial and residential outdoor applications such lighting of landscapes, building details and flag poles.
Construction
Die-cast aluminum housing has integral heat sink fins to optimize thermal management through conductive and convective cooling. The LED driver is mounted in the lower housing promoting a low operating temperature and long life. Housing is sealed against moisture and environmental contaminants (IP65).
Finish: Exterior parts are protected by a thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling.
Optics
Optics are engineered for superior field-to-beam ratios, uniformity and spacing. Available with 5H x 4V flood optics for illuminating larger objects or 2H x 2V spot optics for illuminating targets up to 50 feet away. Light engines are available in 3000K (80 CRI min.) or 5000K (66 CRI min.) configurations.
Electrical
MVOLT driver operates on any line voltage from 120-277V (50/60 Hz). Light engine consists of four (4) discrete LEDs directly mounted directly to the heat sink to maximize heat dissipation and promote long life (100,000 hrs at 40°C, L82). Driver is thermally isolated in base to promote long-life. Operating temperature -30°C to 40°C.
Installation
Integral adjustable knuckle with 1/2-14 NPS threaded pipe facilitates quick and easy installation in a variety of mounting methods.
Note: Specifications subject to change without notice.
Shape | Round |
Light Source | LED - Static |
Lumens | 600 LM, 700 LM, 800 LM |
CCT / LED Color | 3000 K, 5000 K |
CRI | 56, 76 |
Product Type | Floodlight |
Regulatory Listing | UL |
Voltage Rating | MVOLT |
Color | Bronze |
Mounting Type | Knuckle |
Series | OLBF, OLBS |
