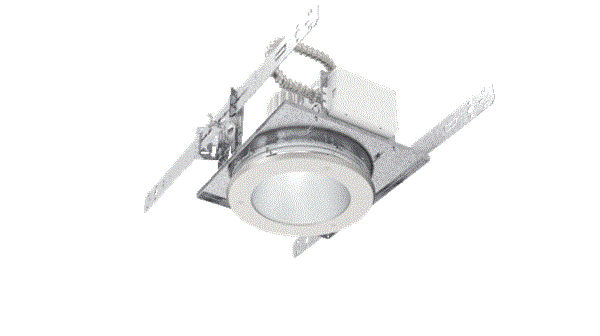

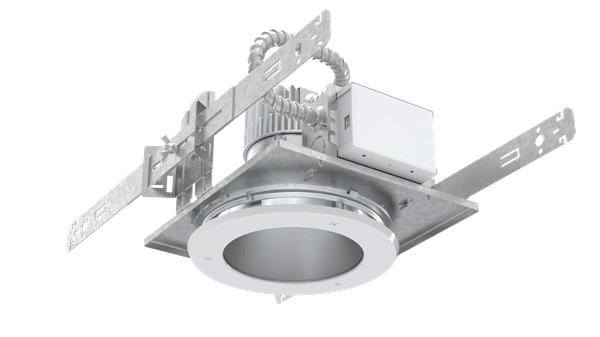

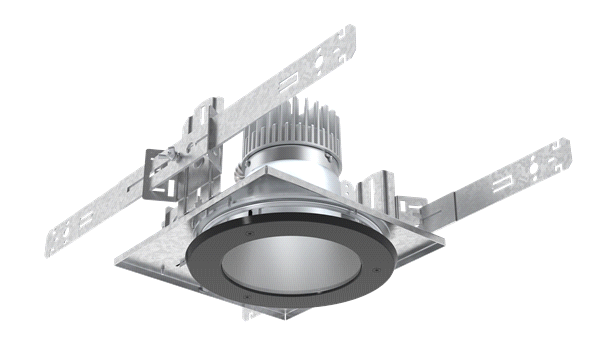

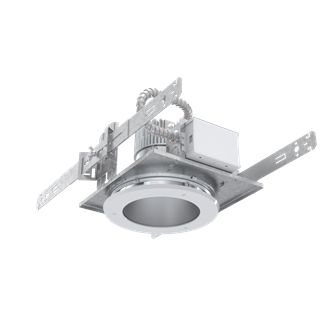

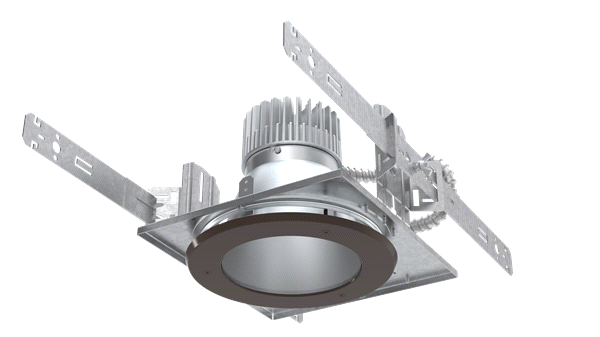

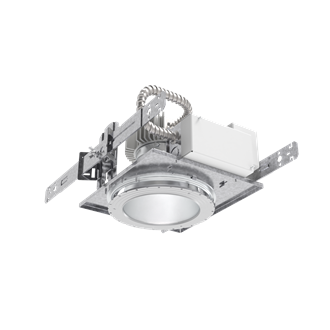

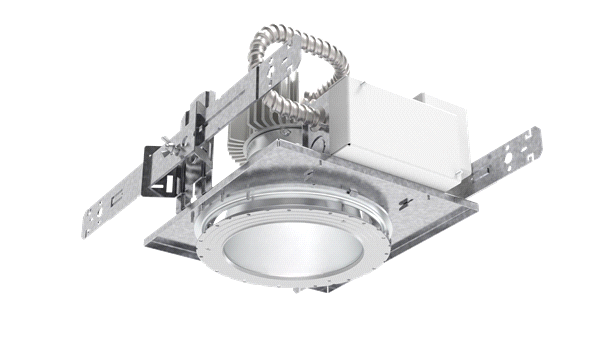

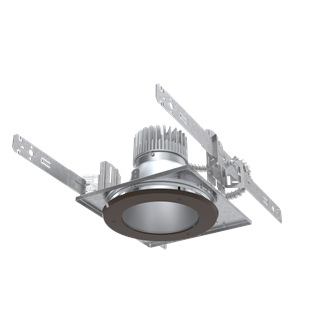

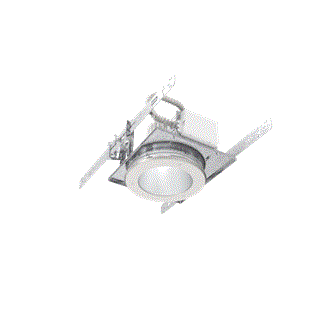

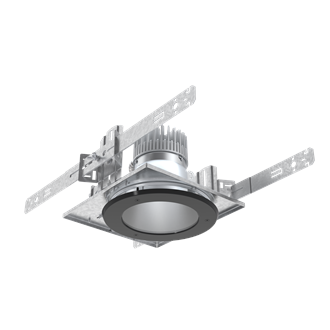

VRDL6 Tunable white

6" Vandal resistant downlight featuring ligature resistant construction for behavioral health and vandal prone environments. IK10 and IP66.

By Luminaire LED

    Tunable WhiteCA Title 20Buy America(n) Option Available
  • Overview
  • Specifications
VRDL is up to the task in a wide range of hostile and harsh environments. IK10 rated for impact resistance, it is built to withstand vandalism in transport and transit hubs, parks and recreation facilities, and other demanding locations. IP66 rated for resistance against water and dust in all harsh environments, and ligature resistant for behavioral or correction settings. These downlights perform under the very toughest conditions and against the most determined tampering. With the VRDL we IK10 tested and then sent that same product into IP66 testing… and it passed! Tough. All ways.

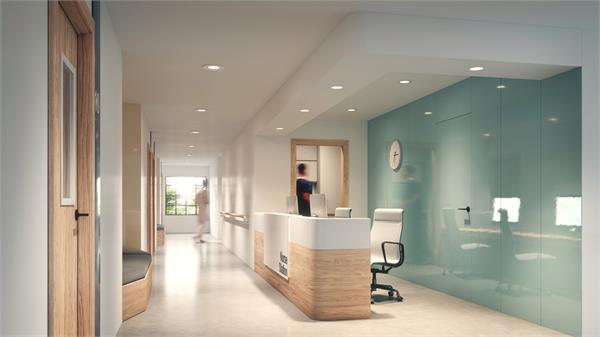

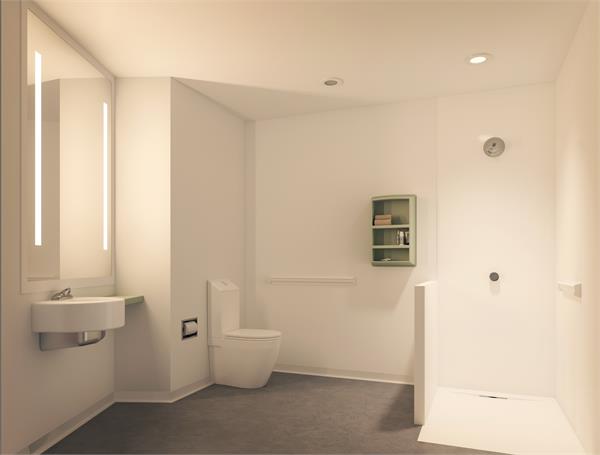

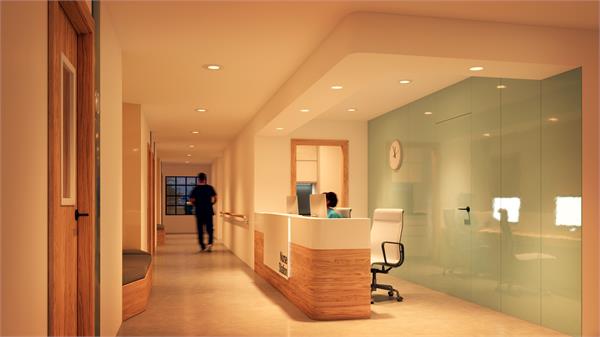

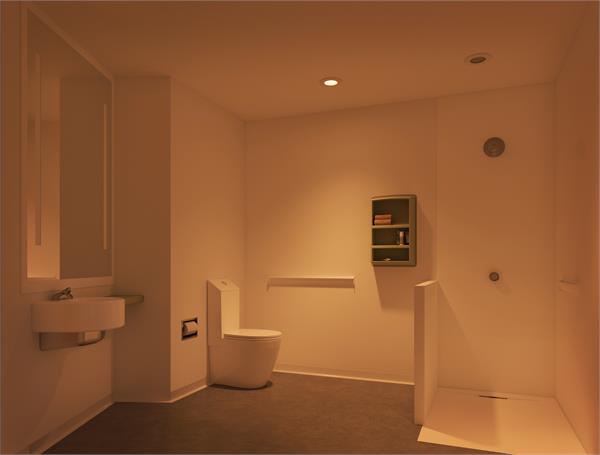

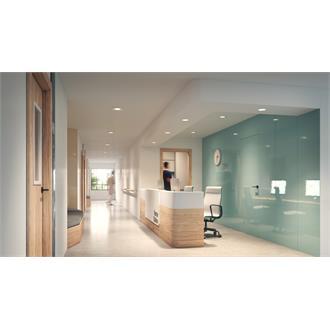

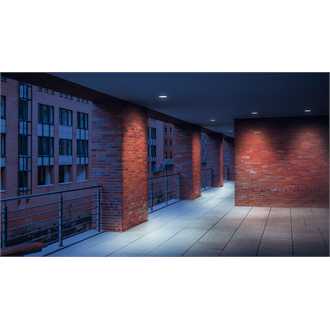

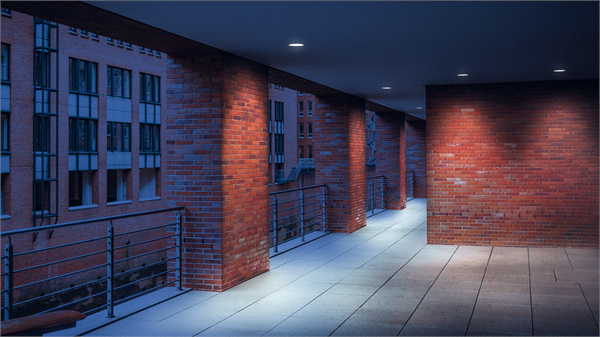

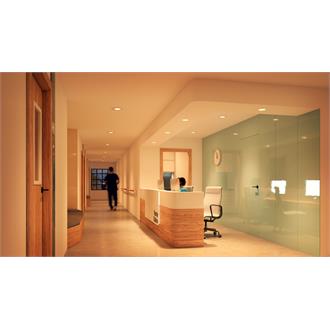

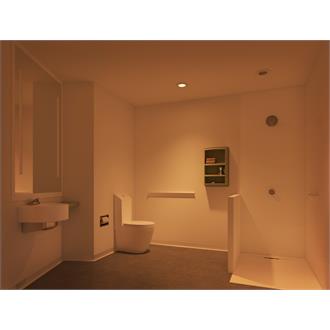

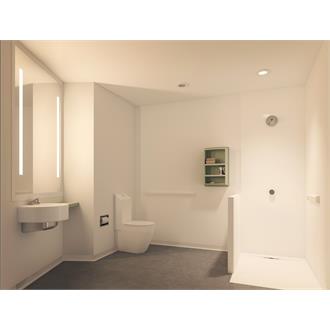

Outdoor, under canopy, behavioral health, confinement, vandal prone areas, natatorium, locker rooms, exterior walkways, secure rooms, secure spaces, transit hubs, parks and recreation facilities.
IK10 (1/4” Polycarbonate) – Non IK10 acrylic option IP66 NSF2 Ligature Resistant Flanged and flangeless (mud in) 1800K through 5000K Static White, Tunable White, Warm Dimming, Red, Amber Center pin reject TORX hardware, Spanner option Brushed stainless, white, black, silver, bronze paint. nLight® and nLight® air Battery and GTD
Read More
Read Less
Light Source LED - Dynamic
Lumens 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM
CCT / LED Color 1800K, 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Compliance Listing BAA, CA Title 20, Chicago Plenum
Environmental Listing IK10, IP66, NSF, Wet Location
Regulatory Listing CSA, UL
Product Type Downlight
Series VRDL6
Application Type Behavioral Health, Confinement, Education, Food Service, Healthcare, Manufacturing, Natatorium, Nurse Station, Parking Garage, Patient Room, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Vandal Resistant
Fixture Wattage 11.4, 12.4, 14.4, 17.6, 18.3, 18.6, 19.3, 20.6, 21.3, 25.1, 25.4, 26.1, 26.4, 28.1, 28.4, 31.4, 32.4, 33.6, 34.4, 34.6, 36.6, 40.7, 41.7, 42, 43, 43.7, 45, 48.8, 49.8, 52, 53, 55, 58, 59, 61
Voltage Rating 120, 120-277, 277, 347

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUMINAIRE-LED-VRDL6-TUWH.pdf VRDL6 Tunable White 6/28/2023 View
