D-Series MA Area Size 1

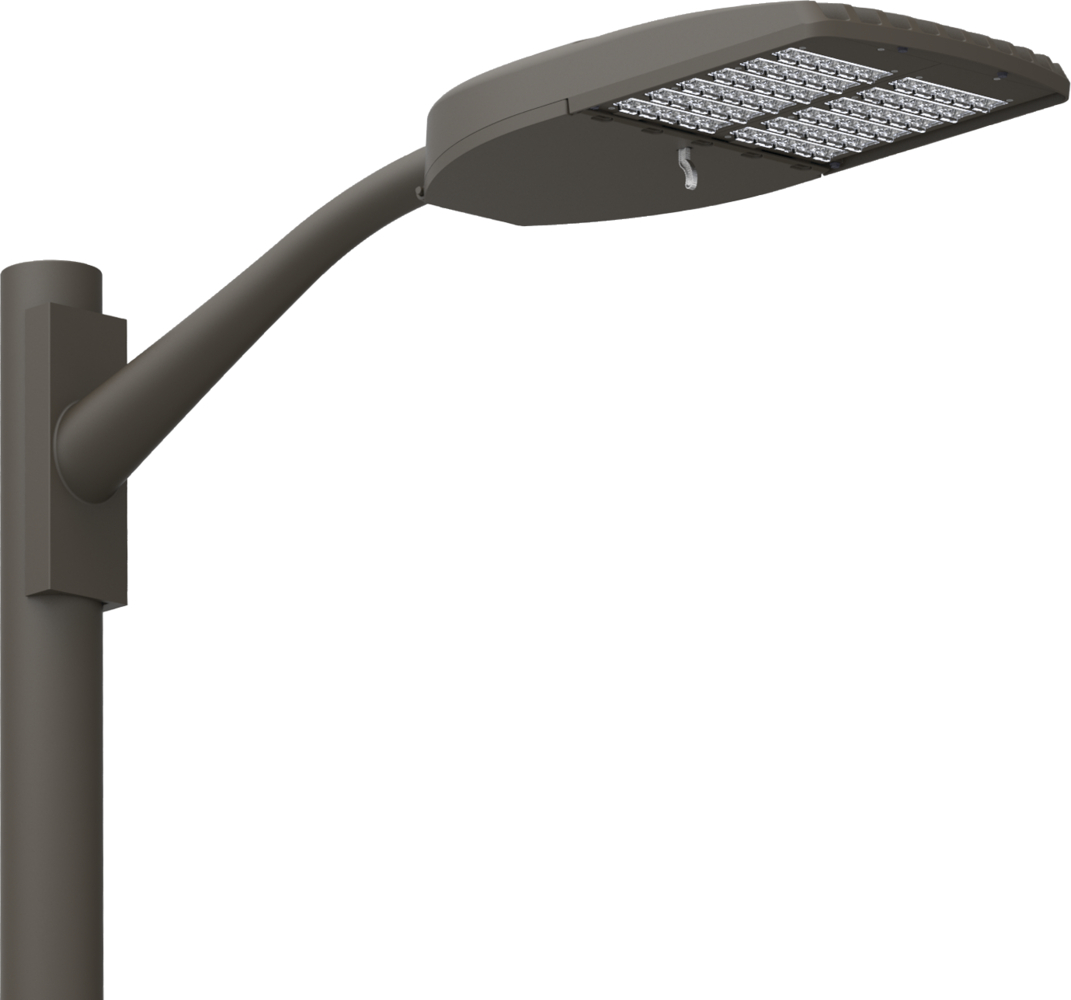

DSX1 Mast Arm LED Area Luminaire

By Lithonia Lighting

  • Overview
  • Specifications

The sleek design of the D-Series Size 1 reflects the embedded high performance LED technology. It is ideal for many commercial and municipal applications, such as parking lots, plazas, campuses, and streetscapes.


Construction

Single-piece die-cast aluminum housing has integral heat sink fins to optimize thermal management through conductive and convective cooling. Modular design allows for ease of maintenance and future light engine upgrades. The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life. Low EPA (0.9 ft2) for optimized pole wind loading.

Finish
Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling. Available in both textured and non-textured finishes.

Optics

Precision-molded proprietary acrylic lenses are engineered for superior area lighting distribution, uniformity, and pole spacing. Light engines are available in 3000K (80 CRI), 4000K (67 CRI) or 5000K (67 CRI) configurations. The D-Series Size 1 has zero uplight and qualifies as a Nighttime FriendlyTM product, meaning it is consistent with the LEED® and Green GlobesTM criteria for eliminating wasteful uplight.

Electrical

Light engine(s) consist of 30 high-efficacy LEDs mounted to a metal-core circuit board to maximize heat dissipation and promote long life (100,000 hrs at 40°C, L87). Class 1 electronic driver has a power factor >90%, THD <20%, and has an expected life of 100,000 hours with <1% failure rate. Easily-serviceable surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).

Installation

Four-bolt mast arm mount provides easy, secure installation for nominal 1-1/4” to 2”diameter arms (1-5/8” to 2-3/8” O.D.) and enables the D-Series Size 1 to withstand up to a 3.0 G vibration load rating per ANSI C136.31. Housing includes cast-in wildlife shield and tool-less “lift and turn” NEMA photocontrol receptacle. Die-cast trigger latch on door provides tool-less entry for easy and secure opening with one hand; top-side leveling crosshairs and internal bubble level assist with installation.

Other: Note: Specifications subject to change without notice.

Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM, 14,000 LM, 15,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM, 23,000 LM, 24,000 LM, 25,000 LM, 26,000 LM, 27,000 LM, 28,000 LM, 29,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing Nighttime Friendly
Regulatory Listing UL
Dimming Protocol 0-10V
Fixture Wattage 105, 131, 138, 209, 68, 89
Voltage Rating 120-277
Color Black, Bronze, Silver, White
Mounting Type Pole Mount
Series DSX1

Read More Read Less
