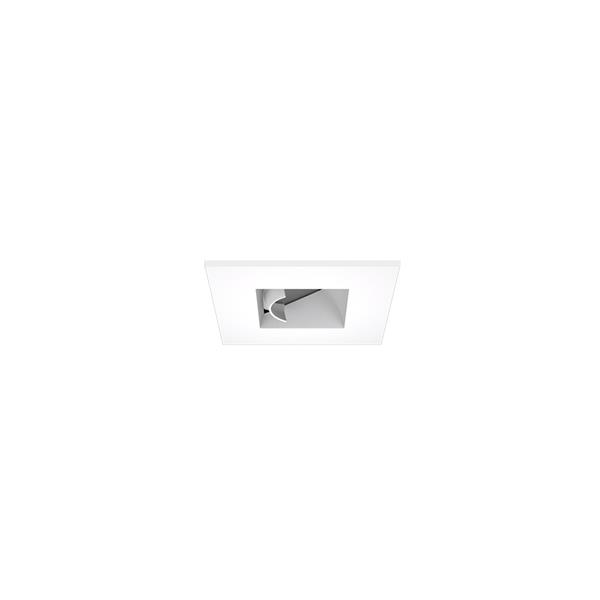

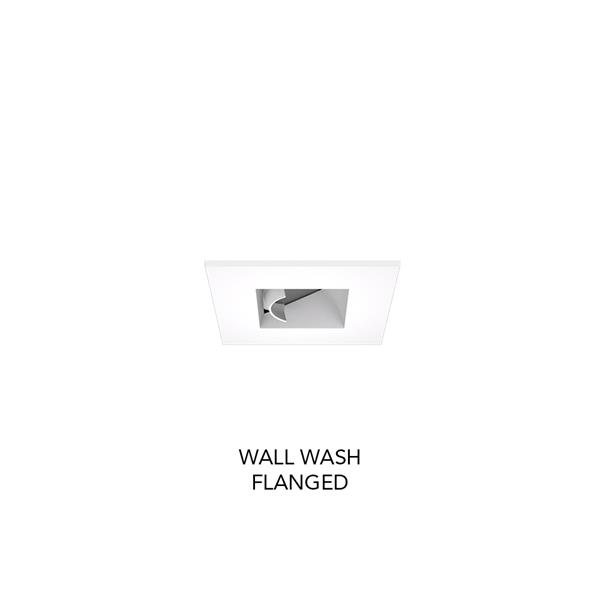

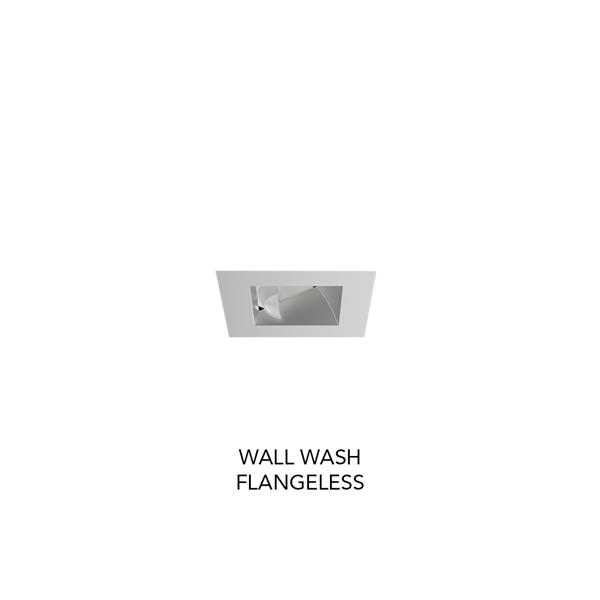

AX2SQ 2" Square Wall Wash

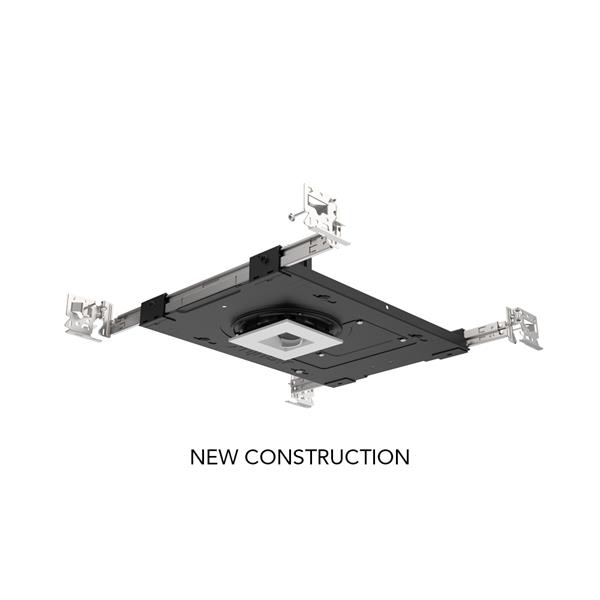

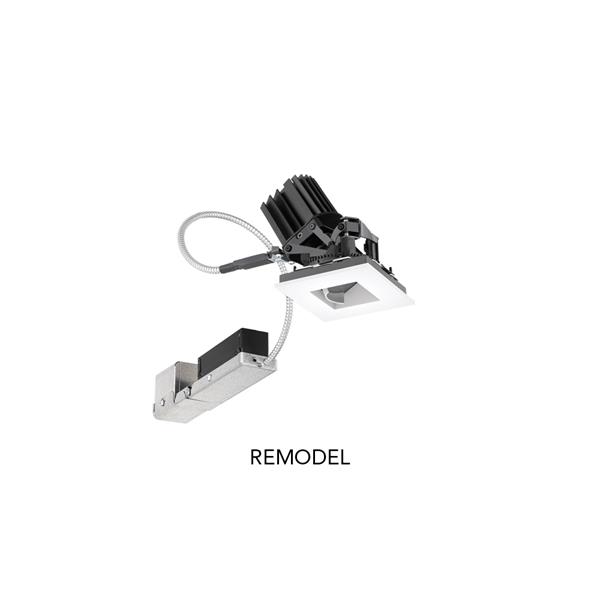

2" Precision Recessed New Construction & Remodel
    Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 2 IN
Shape Square
Light Source LED - Static
Lumens 800 LM, 1200 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Housing
Compliance Listing BAA and BABA, Chicago Plenum, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 10, 14.3, 14.7, 16.5, 17.3, 9.9
Voltage Rating 120, 120-277

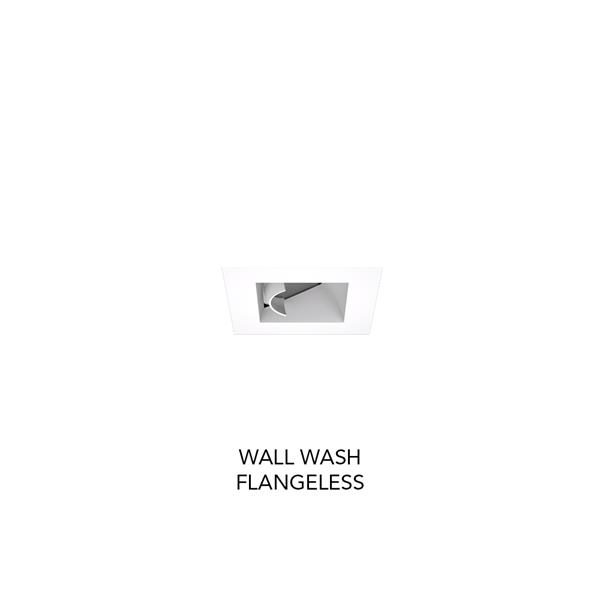

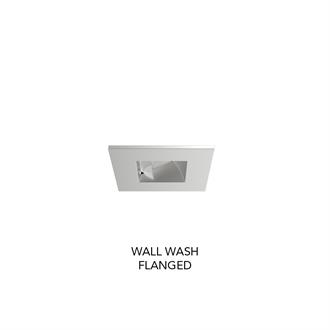

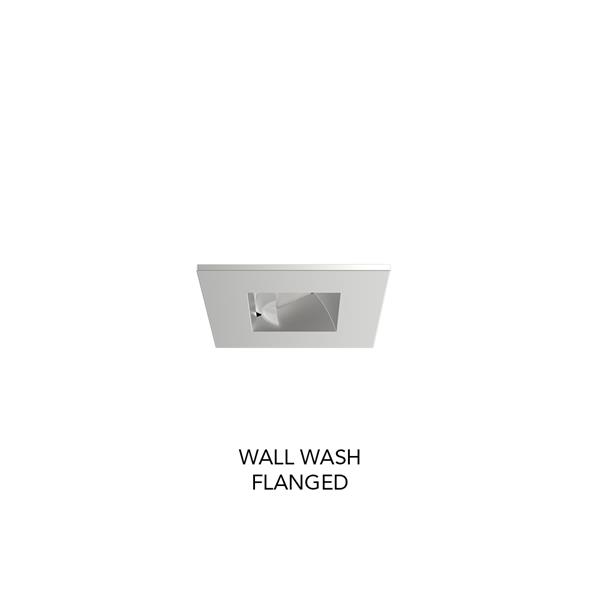

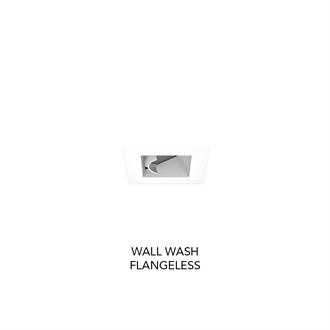

Trim Style Single Wallwash
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX2SQ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Aculux--AX2SQ-Recessed-2in-Square-Adjustable--.pdf AX2SQ Square Adjustable/Wall Wash New Construction & Remodel 8/31/2023 View

    Design Select
    Take Me There
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3704.pdf AX2(SQ) New Construction Flangeless Adapter Ceiling Thickness less than .75" (FMA2/075,FMA2SQ/075) 6/5/2018 View
    Installation Instructions P3705.pdf AX2(SQ) Remodel Flangeless Adapter Ceiling Thickness .5" to 1.5" (FMA2R & FMA2SQR) 6/6/2018 View
    Installation Instructions P3707.pdf AX2 and AX2SQ 2" IC New Construction Housing 12/27/2018 View
    Installation Instructions P3708.pdf AX2 and AX2SQ 2" Non-IC New Construction Housing 12/27/2018 View
    Installation Instructions P3709.pdf AX2 and AX2SQ 2" Non-IC Remodel Housing 10/28/2021 View
    Installation Instructions P3739.pdf AX2SQ 2" Square Adapter Ceiling Thickness .75" to 1.50" (CTA2SQ/120,CTA2SQ/150) 6/5/2018 View
    Installation Instructions P4691.pdf AX2SQ 2" New Construction Flangeless Adapter Ceiling Thickness .75" to 1.50" (FMA2SQ/120,FMA2SQ/150) 6/5/2018 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Aculux 2in Precision Recessed LED Brochure Aculux AX2 Brochure 6/7/2023 View
