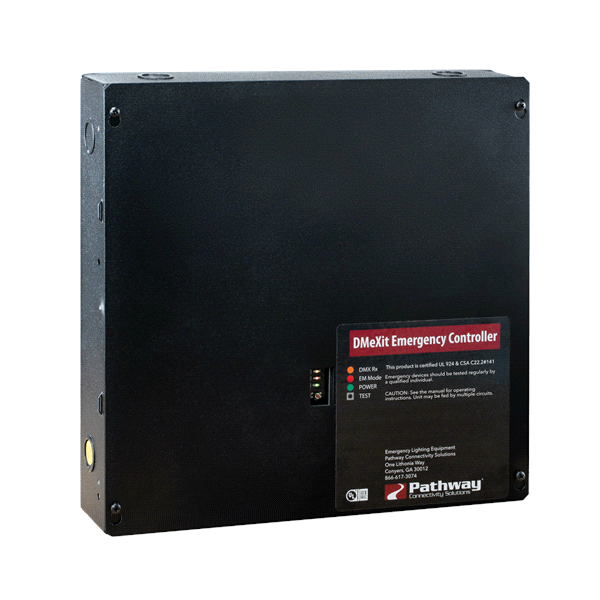

PWEMDMX Emergency DMX Controller

DMeXit UL924 Controller with DMX-RDM Opto-Splitter

By Pathway

    Buy America(n) Option Available
  • Overview
  • Specifications
The Pathway DMeXit is a UL924 compliant controller designed to send a control signal to DMX lighting in emergencies to satisfy minimum luminance levels for egress lighting. Using a wet or dry contact closure from other building management system, or the optional integrated phase loss detection device. User Recordable snapshot of a single universe DMX will be transmitted to four separate data runs.

  • UL924 Compliant DMX512 Controller
  • One universe of DMX input and four optically isolated four outputs
  • RDM compliant splitter on all outputs
  • Factory Default Snapshot sets all levels at full

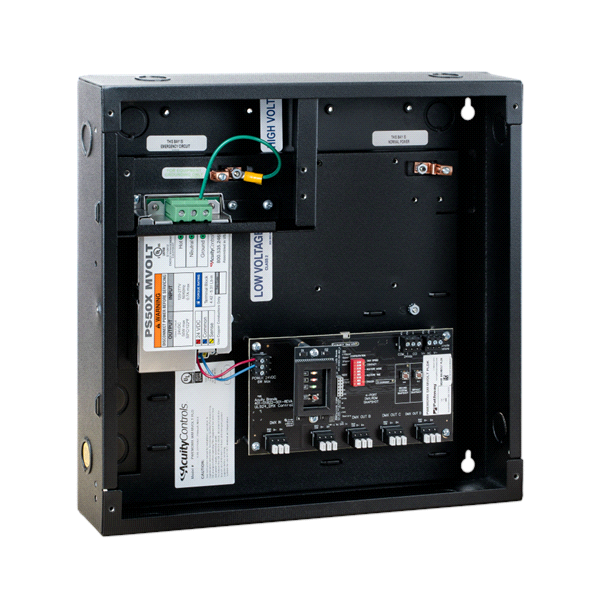

  • May be triggered by external contact closure, integrated phase loss detection or on loss of DMX Input signal

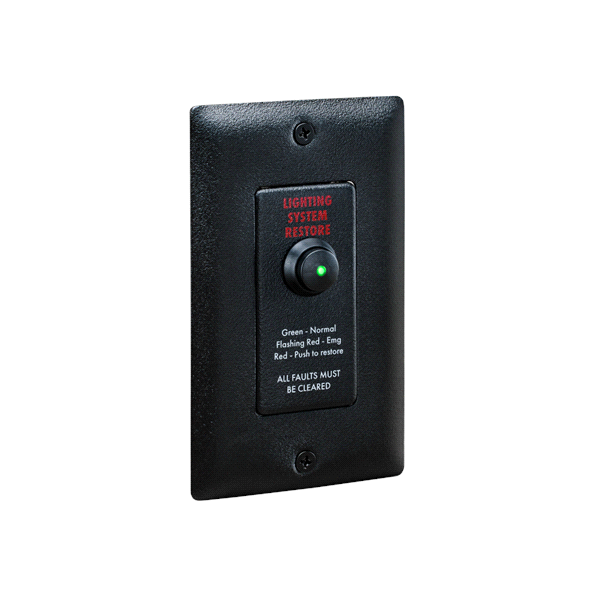

  • Programmable Restore operations

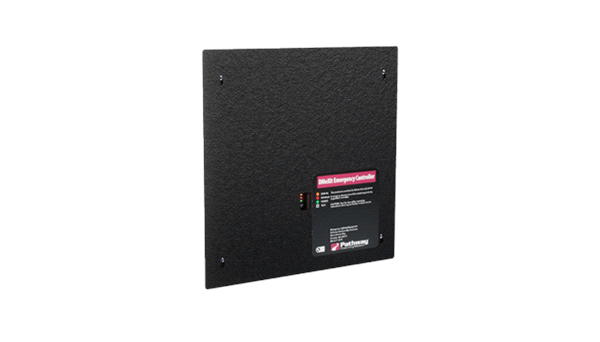

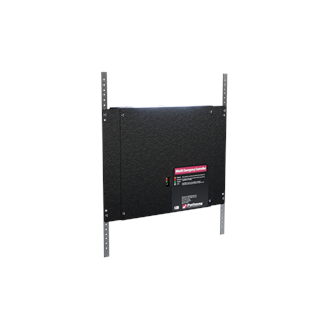

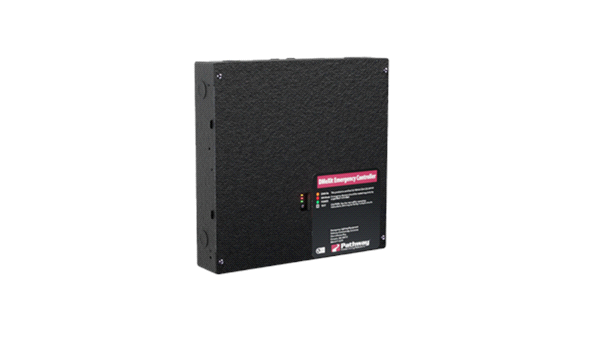

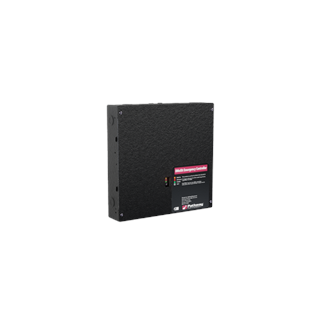

  • Three mounting options

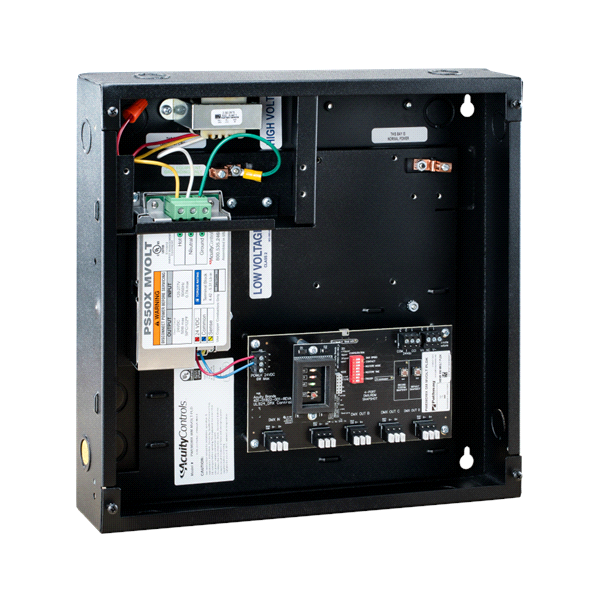

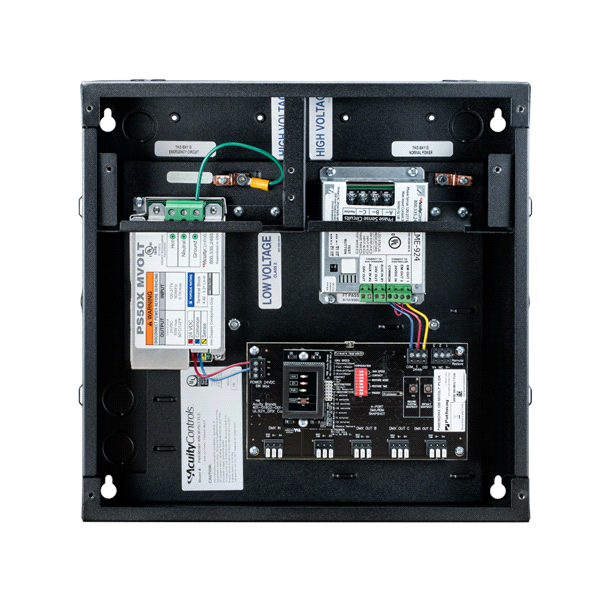

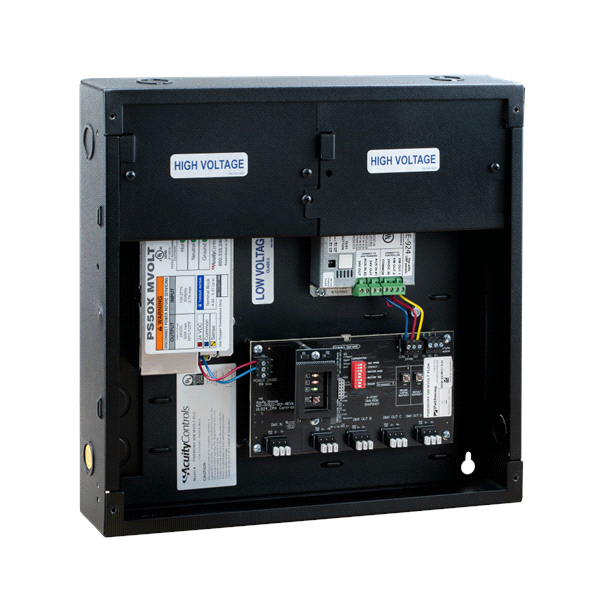

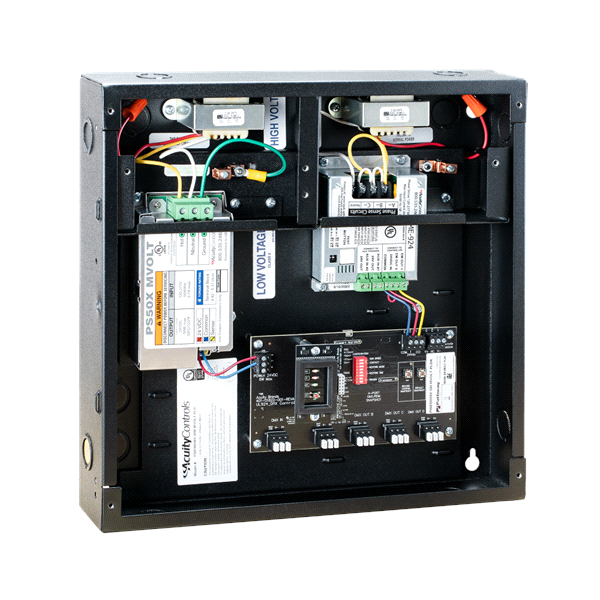

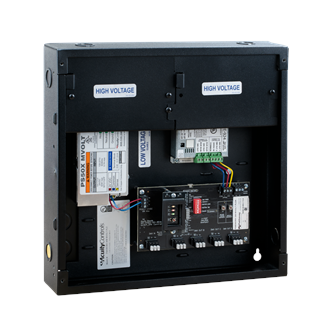

  • Optional Phase Loss Detection - 1, 2 or 3 phase 120-277VAC with optional 347VAC single phase detection.
Read More
Read Less
Color Black
Control Device Type Interface Device
Mounting Location Cabinet, Portable, Wall

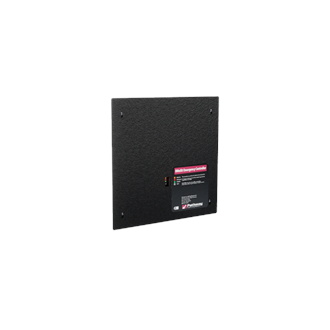

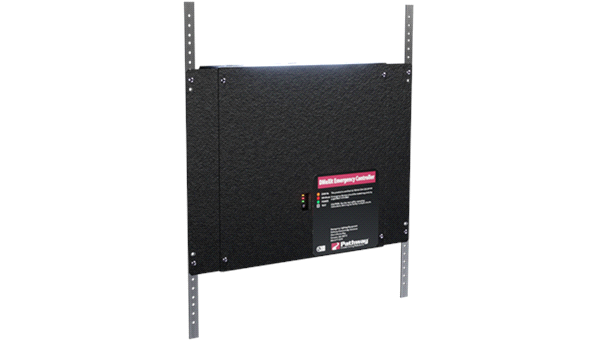

Mounting Type Flush, Rack Mount, Surface
Product Type System Controller
Voltage Rating 120-277, 347
# of Comm. Ports 4
Receiving Protocol DMX, Dry Contact, RDM
Sending Protocol DMX, RDM
Compliance Listing BAA
Regulatory Listing CSA, cUL, UL924

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View

    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets PWEMDMX (DMeXit) CSI Specification.docx CSI Div 26 Part 2 7/3/2023
  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD block-PWACC EMRR.DWG Blocks and Drawing (PWACC EMRR) DWG 7/13/2023
    CAD block-PWACC EMRR.pdf Blocks and Drawing (PWACC EMRR) PDF 7/13/2023 View
    CAD block-PWEMDMX.dwg Blocks and Drawing (PWEMDMX) DWG 12/14/2022
    CAD block-PWEMDMX.pdf Blocks and Drawing (PWEMDMX) PDF 12/14/2022 View
    Installation Instructions PWEMDMX Installation Guide.pdf DMeXit Install Guide 3/30/2023 View
    Line Drawing line-PWACC EMRR.DWG Dimensions and notes (PWACC EMRR) DWG 7/13/2023
    Line Drawing line-PWACC EMRR.pdf Dimensions and notes (PWACC EMRR) PDF 7/13/2023 View
    Line Drawing line-PWEMDMX.dwg Dimensions and notes (PWEMDMX) DWG 12/12/2022
    Line Drawing line-PWEMDMX.pdf Dimensions and notes (PWEMDMX) PDF 12/12/2022 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet DMeXit Emergency Controller Sell Sheet_03.23.pdf DMeXit Sell Sheet 3/31/2023 View
