4750L INJB

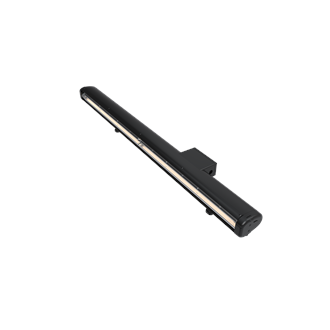

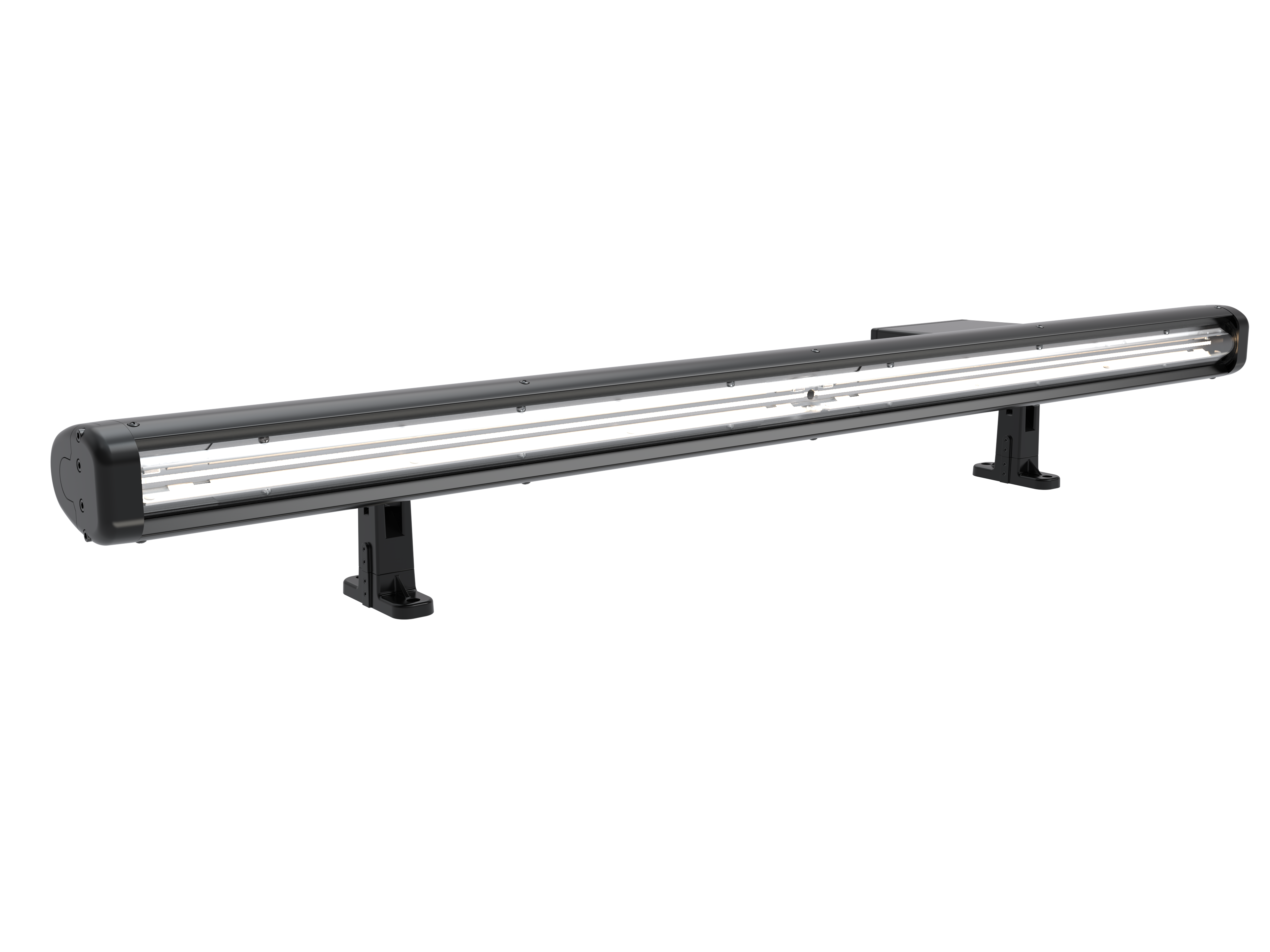

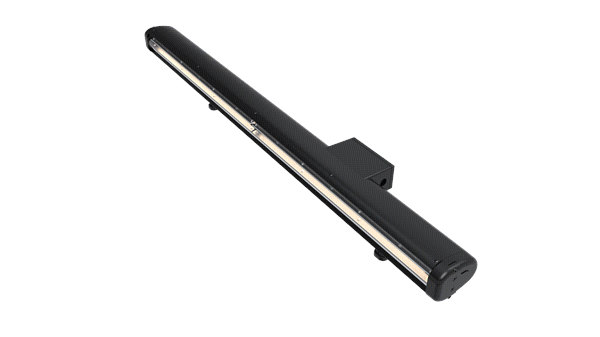

4750L Linear Floodlight with Integral Junction Box

By Hydrel

    Color ChangingBuy America(n) Option Available
  • Overview
  • Specifications
With its high-tech look, the 4750L INJB offers a discreet integral j-box for locations that need to impress. Installation simplified, 4750L INJB is a high-performance linear luminaire with consistent illumination designed to create bold expressions of light.


The architectural linear floodlight is designed for challenging outdoor applications delivering high performance and efficacy.

  • Easy to install
  • Clean aesthetics
  • No extra control boxes required –with the INJB, the 4750L connects directly to line voltage and control output
  • Ground mounted applications: protects the fixture and power cable
  • Meets electrical code compliance based on certain locations
  • 3G vibration rating per ANSI C136.31
  • Standard 0-10V, Reverse phase dimming to 1%
  • Flow-thru technology: water flows around the independently sealed integral driver module and sealed LED module
  • Color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K and amber 591nm
  • IP67 rated
  • Mounting accessories for ground and wall
  • Available in a range of finishes
Read More
Read Less
Size 2FT, 4FT
Light Source LED - Static
Lumens 2000 LM, 4000 LM, 8000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength
CRI 80
Product Type Linear
Compliance Listing BAA
Environmental Listing IP67, Wet Location
Regulatory Listing ANSI C136.31-2010 (Vibration), CSA, CSAus, NOM
Dimming Protocol 0-10V, DALI, DMX, Reverse Phase
Light Distribution Medium Flood, Narrow Spot, Very Narrow Spot, Wall Wash, Wide Flood
Fixture Wattage 21, 42, 63
Voltage Rating 120-277, 347
Mounting Type Knuckle
Color Beige, Black, Bronze, Gray, Green, Silver, White
Series 4750L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 4750L_Static_White.pdf 4750L Flood Linear Static 6/19/2023 View
    SPEC SHEET DPI4WHYD.pdf Power Integrator Box 10/24/2019 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Installation Instructions_4750L Linear LED Flood_rev 5.pdf 4750L LED Linear 8/16/2022 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet Replacement parts 4750L_ (002).pdf Replacement Parts list for the 4750L Linear Flood light 9/12/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Hydrel 4750L Brochure Hydrel 4750L Linear Floodlight Brochure, Architectural Lighting 8/30/2022 View
    Sell Sheet 4750L Reference Card 4750L Reference Card 5/20/2019 View
    Sell Sheet Architectural Linear Lighting Product Sheet Architectural Linear Lighting Product Sheet 8/18/2022 View

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent

    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Contact Us (Lighting Fixtures)

    •  Contact Us (Controls Services & Support)

    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


View Stocked Products

  • Stock-Sku-FeedbackIs the new stocked product detail helpful? Please tell us what you think, CLICK HERE.

    SKU data not available, please contact your local agent.

    Clear Filters

    {{getMinimumDisplayedIndex()}} - {{getMaximumDisplayedIndex()}} of {{filteredStockedProducts.length}} results

    {{icon.AltText}}
    Close Details View
    Product Details
    By Hydrel
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Catalog #
    {{popupSku.details.SHORT_DESCRIPTION ? popupSku.details.SHORT_DESCRIPTION : 'N/A'}}
    Description
    {{popupSku.details.LONG_DESCRIPTION ? popupSku.details.LONG_DESCRIPTION : 'N/A'}}
    CI Code
    {{popupSku.details.CICODE ? popupSku.details.CICODE : 'N/A'}}
    Pallet Qty
    {{popupSku.details.PALLET_QUANTITY ? popupSku.details.PALLET_QUANTITY : 'N/A'}}
    Weight
    {{popupSku.details.WEIGHT ? popupSku.details.WEIGHT + ' (lbs)' : 'N/A'}}
    UPC
    {{popupSku.details.UPC ? popupSku.details.UPC : 'N/A'}}
    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    Agent Price Levels
    Name
    Price
    Commision
    {{priceResult.LABEL}} {{priceResult.NO_PRICE_MESSAGE}} ${{priceResult.UNIT_PRICE | number : 2}} {{priceResult.COMM_PCT}} %
    Distr. Price
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Price ${{popupSku.Price | number : 2}}
    {{popupSku.noQuotesMessage}}
    Read More
    Read Less
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Read More
    Read Less
    Available Inventory (Stocked)
    Qty.
    Est. Ship Date
    Location
    Qty. In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}} {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Production Lead-Time
    Production lead-time is not available at this time.
    Mfg. Time
    Total Time
    Est. Ship Date
    Location
    {{loc.MfgLeadTime}} {{loc.TotalLeadTime}} {{loc.EstShipDate}} {{loc.Location}}
    (No Products Found)
    {{icon.AltText}}
    {{result.Title}}
    {{result.Title}}
    {{result.Description}}
    Quantity
    {{(result.Quantity > 0) ? result.Quantity : 0}} in {{result.Location.substring(result.Location.indexOf("(")+1, result.Location.indexOf(")"))}}
    Total at all DCs: {{result.EnterpriseAvailability}}
    Distr. Price
    ${{result.Price | number : 2}}
    Distr. Price
    Contact Acuity
    Distr. Price
    Contact Rep
    Distr. Price
    GET PRICE
    Distr. Price
    No pricing established

    No Locations Could Be Found.


    This catalog # is not available at any location at this time. Inventory is replenished daily, please check back or contact your local sales representative or agency further details.

    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Important Notice Orders entered before noon will ship same day, and orders entered after noon will ship next day within your given timezone.
    Available Est. Ship Date Location In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}}     {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Available
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}}
    Est. Ship Date
    {{loc.ESTIMATED_SHIP_DATE}}
    Location
    {{loc.LOCATION}}
    In Transit
    {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}
    {{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
Configurator

Build Cat. # / Submittal Spec Sheet

  • Start Configurating a Product

Gallery

Product Family

Hydrel

Linear Flood Lights | 4750L Linear...

4750L is an exterior linear flood light designed for challenging outdoor applications delivering high performance and efficacy. ...

product thumbnail

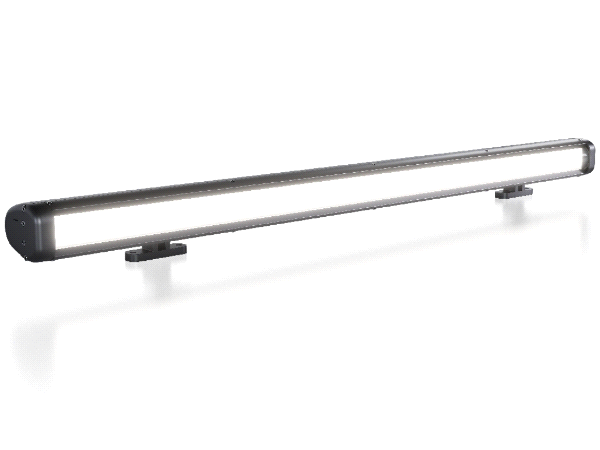

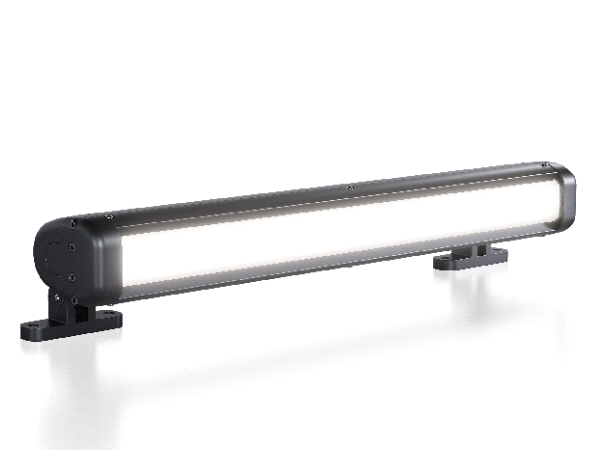

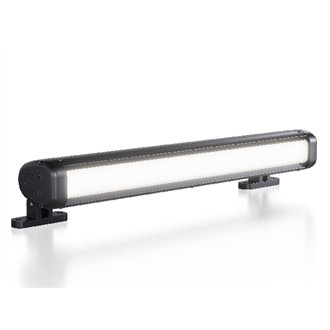

4750L Static White Linear Flood
