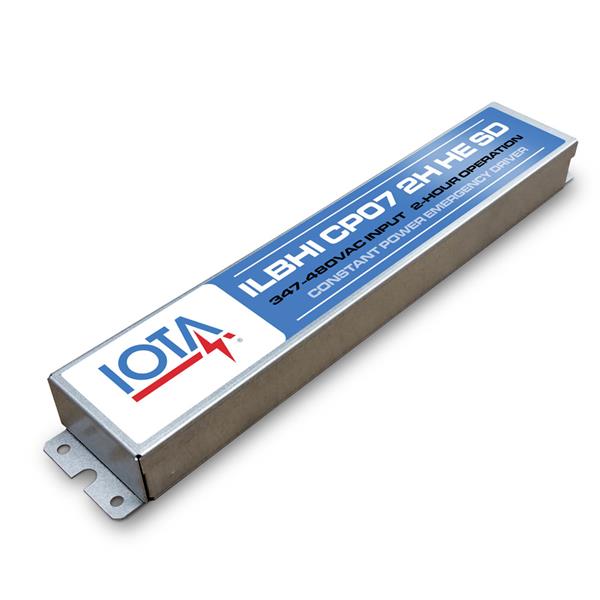

ILBHI CP07 2H HE SD Emergency LED Driver

7 Watt, 347-480 VAC Input, 2 Hour Runtime


    CA Title 20
  • Overview
  • Specifications
The IOTA ILBHI CP07 2H HE SD is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 15-55VDC Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBHI CP07 2H HE SD switches from the existing AC driver to operate the fixture from the battery supply for 120 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure for integral installation within the compartment or wireway. The patented Constant Power design of the unit maintains the rated output wattage to the LED array even as the battery voltage diminishes, resulting in a constant illumination level for the entire emergency runtime. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
LED Operation
  • 7 watts Constant Power
  • 15-55 VDC Nominal Output
Product Advantages
  • Two-Hour Operation for FEMA and Canada requirements
  • 347 to 480V Input Accommodates fixtures using a high-voltage AC input from 347-480VAC, 50/60 Hz
  • Auto-Sensing Class 2 Output Auto-adjusting 15-55 VDC output range accommodates a wide range of Class 2 forward voltage designs
  • Constant Power Performance
    Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
  • UL 924 Listed for U.S. and Canada
  • AC-Activate circuity simplifies wiring by eliminating the need for manual battery connection during installation
  • Maintenance-free, high-temp recyclable LiFePO4 for significantly reduced space requirements
  • Durable, galvanized steel enclosure
  • Single-piece test switch and charge indicator can be remote-mounted up to 25 ft.
  • For use with switched or unswitched fixtures
  • 5-Year Warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified to CA Title 20 and registered in the Modernized Appliance Efficiency Database (MAEDBS)
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 347-480
Frequency 50/60HZ
Output Power 7 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 120 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US
Compliance Listing CA Title 20, ROHS
Series ILBHI

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IOTA-ILBHI-CP07-2H-HE-SD Spec Sheet.pdf Spec sheet for ILBHI CP07 2H two-hour 347-480VAC Emergency Driver 6/29/2023 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IOTA--ILBHI-CP-2H-HE-SD-B_Instruction-Manual.pdf Installation and user instructions for ILBHI two-hour integral mount emergency driver 6/28/2023 View
    Material Safety Data Sheet MSDS - 9.6V LiFePO Batteries Material Data Safety Sheet for 9.6V LiFePO Batteries 6/10/2021 View
    Technical Bulletins TC Point Reference Identifies unit's TC point for thermal testing 6/2/2021 View
    Wiring Diagram (English) Typical Installation PDF Format - Typical installation of ILBHI emergency drivers 6/3/2021 View
    Wiring Diagram (English) Typical Installation DWG Format - Typical installation of ILBHI emergency drivers 6/3/2021
    Wiring Diagram (French) Installation Typique PDF Format - Installation typique pour les modèles ILBHI 6/3/2021 View
    Wiring Diagram (French) Installation Typique DWG Format - Installation typique pour les modèles ILBHI 6/10/2022
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Brochures IOTA ILBHI Flipbook An at-a-glance overview of the IOTA ILBHI Series products and application 11/8/2021 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 View
    Sell Sheet IOTA 2-Hour Emergency Drivers Sell Sheet Introduction to the applications and advantages of IOTA 2-Hour Constant Power Emergency Drivers 8/15/2023 View
    Sell Sheet Sell Sheet_IOTA AC Activate.pdf AC Activate is a smarter, simpler way to install emergency drivers. 7/21/2023 View
