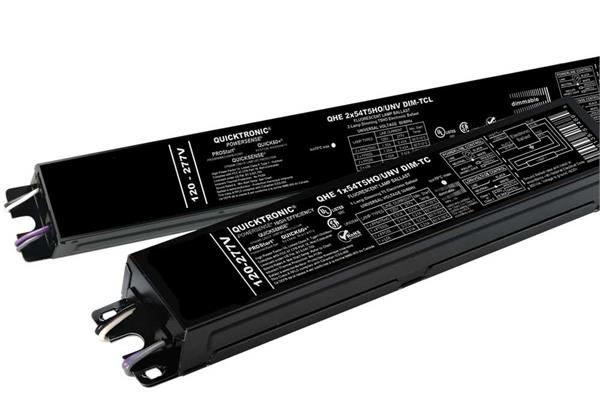

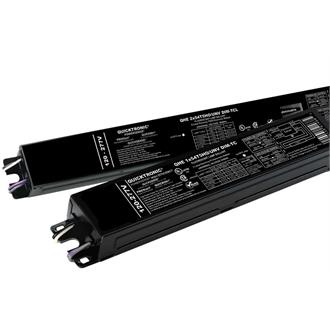

QHE T5HO Dimming Fluorescent Ballast

0-10V and Powerline

By QUICKTRONIC

  • Overview
  • Specifications
QHE T5HO Dimming Fluorescent Ballast is a QUICKTRONIC high output, high efficiency electronic T5HO ballast with POWERSENSE. The QHE T5HO POWERSENSE comes in a 1 or 2 lamp option with a wide dimming range (100% - 1%), universal voltage (120-277V) and a high power factor (> 98%). The QHE T5HO POWERSENSE ballast micro-controller technology that makes it adaptable and compatible with low voltage controls and power line fluorescent dimmers. QUICKSENSE technology provides a patented circuitry design for safe shut-off when lamps reach their end-of-life. QHE T5HO Dimming Fluorescent Ballasts are RoHS Compliant. Its standard low voltage (0-10V) is perfect for individual office lighting or automated building applications for new construction and retrofit. This also includes occupancy sensors, daylight harvesting, energy management, load shedding, commercial, retail, hospitality and institutional applications.
Read More
Read Less
Ballast Lamp Type T5HO
Voltage Rating 120-277
# Lamps Operated 1, 2
Lamp Starting Method Program Start
Ballast Factor Normal
Dimming Protocol 0-10V, Powerline
Frequency 50/60HZ
Power Factor > 0.98
Max. Operating Temp. 70
Regulatory Listing CSA, UL
Compliance Listing FCC 47CFR Part 18 Non-Consumer, ROHS
Product Type Ballast
Series QHE

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Powersense_T5HO_Dim_ECS438R1_.pdf QHE T5HO Dimming Fluorescent Ballast 5/4/2022 View
