QTP Dimmable Compact Fluorescent

Helios 0-10V

By QUICKTRONIC

  • Overview
  • Specifications

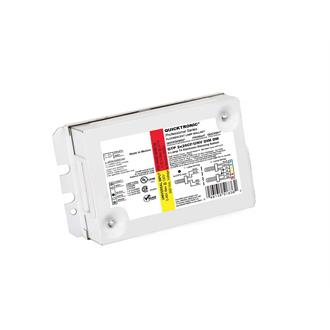

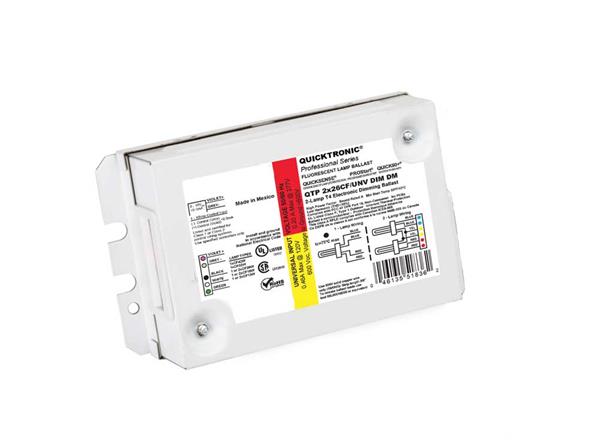

QTP Dimmable Compact Fluorescent Ballast is a QUICKTRONIC HELIOS professional series, dual entry dimming ballast that's interoperable with DL D/E and T/E lamps. The QTP HELIOS CF comes in a 1 or 2 lamp option with a wide dimming range (100% - 3%), universal voltage (120-277V) and a high power factor (> 98%). QTP Dimmable Compact Fluorescent Ballasts are RoHS Compliant. The QTP Dimmable Compact Fluorescent Ballast dual entry, color coded wire trap connectors increase the mounting flexibility and ease of installation. Its standard low voltage (0-10V) is perfect for daylight harvesting or automated building applications where you use standard low voltage devices to control the lighting system. This also includes recessed downlights, wall sconces, ceiling fixtures, commercial, retail, hospitality, institutional and load shedding applications.
Read More
Read Less
Ballast Lamp Type T4/CFL
Voltage Rating 120-277
# Lamps Operated 1, 2
Lamp Starting Method Program Start
Ballast Factor Normal
Dimming Protocol 0-10V
Frequency 50/60HZ
Power Factor > 0.98
Max. Operating Temp. 75
Regulatory Listing CSA, UL
Compliance Listing FCC 47CFR Part 18 Non-Consumer, ROHS
Product Type Ballast
Series QTP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET QUICKTRONIC_QTPCFDIMHELIOS_ECS440.pdf QTP CF DIM Helio 5/5/2022 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    Product and Technical Support

    QUICKTRONIC® is dedicated to providing outstanding product and technical support.  Feel free to
    call us at 1.877.636.5267 or email us at techsupport@quicktronic.com.
