QHE T5 Program Rapid Start Ballast

0.90 Ballast Factor


  • Overview
  • Specifications

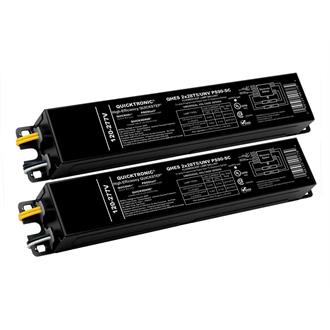

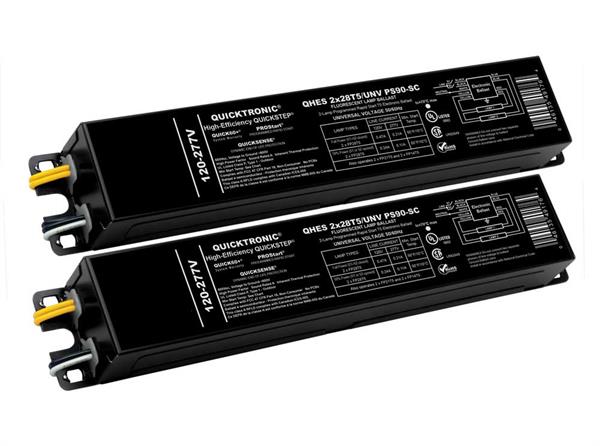

QHE T5 Program Rapid Start Ballast is a QUICKTRONIC high efficiency rapid start T5 ballast with a 0.90 ballast factor. The QHE T5 PS90 ballast comes in a 2 lamp option with universal voltage (120-277V), bi-level dimming (100% and 50%) and a high power factor (> 98%). QUICKSENSE technology provides a patented circuitry design for safe shut-off when lamps reach their end-of-life. QHE T5 Program Rapid Start Ballast are RoHS Compliant and meet California Title 24 multi-level lighting controls requirements (section 131). Title 24 application spaces include office, schools, commercial, retail, hospitality, institutional, new construction and renovations.
Read More
Read Less
Ballast Lamp Type T5
Voltage Rating 120-277, 277
# Lamps Operated 2
Lamp Starting Method Program Start
Ballast Factor 0.90
Dimming Protocol Not Applicable
Frequency 50/60HZ
Power Factor > 0.98
Max. Operating Temp. 70
Regulatory Listing CSA, UL
Compliance Listing FCC 47CFR Part 18 Non-Consumer, ROHS
Product Type Ballast
Series QHE

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET QUICKTRONIC-QHE-T5-PS-90BF-QHES-BI-Level-ECS420R1.pdf QHE T5 Program Rapid Start Ballast 11/30/2021 View
