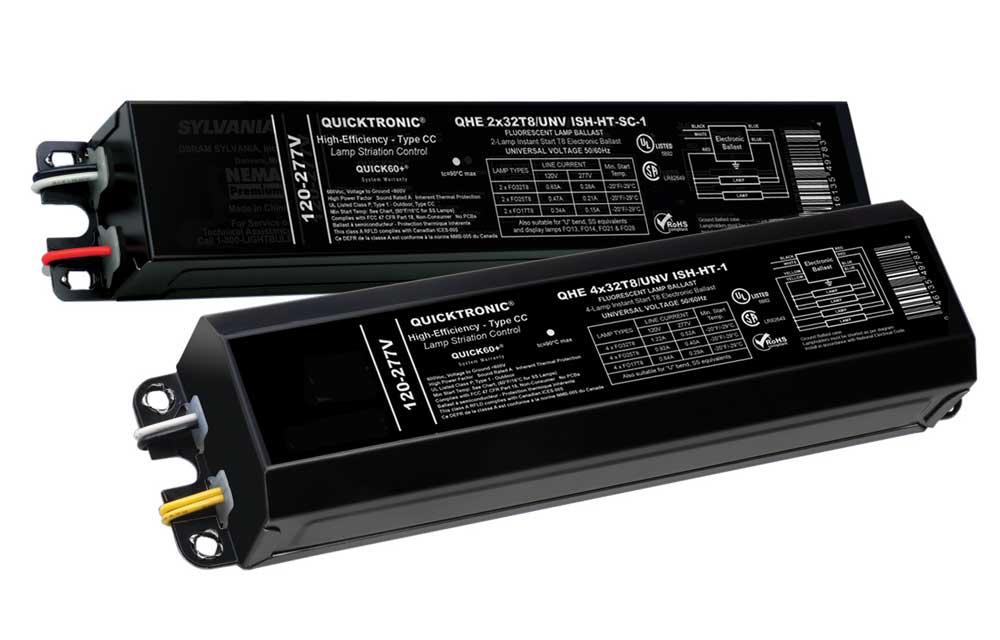

QHE T8 Instant Start Ballast – ISH HT – Type CC

High Ballast Factor - High Temp

By QUICKTRONIC

  • Overview
  • Specifications
QHE T8 Instant Start Ballast – ISH HT – Type CC is a QUICKTRONIC high efficiency Type CC (commercial cabinet), energy-saving electronic T8 ballast. The QHE T8 ISH HT Type CC ballast comes in 2 and 4 lamp options with universal voltage (120-277V) and a high power factor (> 98%). QHE T8 Instant Start Ballasts – ISH HT – Type CC are RoHS Compliant and meet the most demanding utility rebate standards. The QHE T8 ISH HT Type CC is ideal for your refrigerated cases, walk-in coolers, commercial cabinets, high bay lighting and display case UL Type CC applications where the ballast is subjected to higher ambient temperatures.
Read More
Read Less
Ballast Lamp Type T8
Voltage Rating 120-277
# Lamps Operated 2, 4
Lamp Starting Method Instant Start
Ballast Factor High
Frequency 50/60HZ
Power Factor > 0.98
Max. Operating Temp. 70
Regulatory Listing CSA, UL
Compliance Listing FCC 47CFR Part 18 Non-Consumer, ROHS
Product Type Ballast
Series QHE

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET QUICKTRONIC_QHET8ISHHT_CC_ECS408.pdf QHE T8 Instant Start Ballast – ISH HT – Type CC 11/19/2021 View
