PWACC RJ45 Patch Module

DIN-mount RJ45 Patch Module

By Pathway

  • Overview
  • Specifications

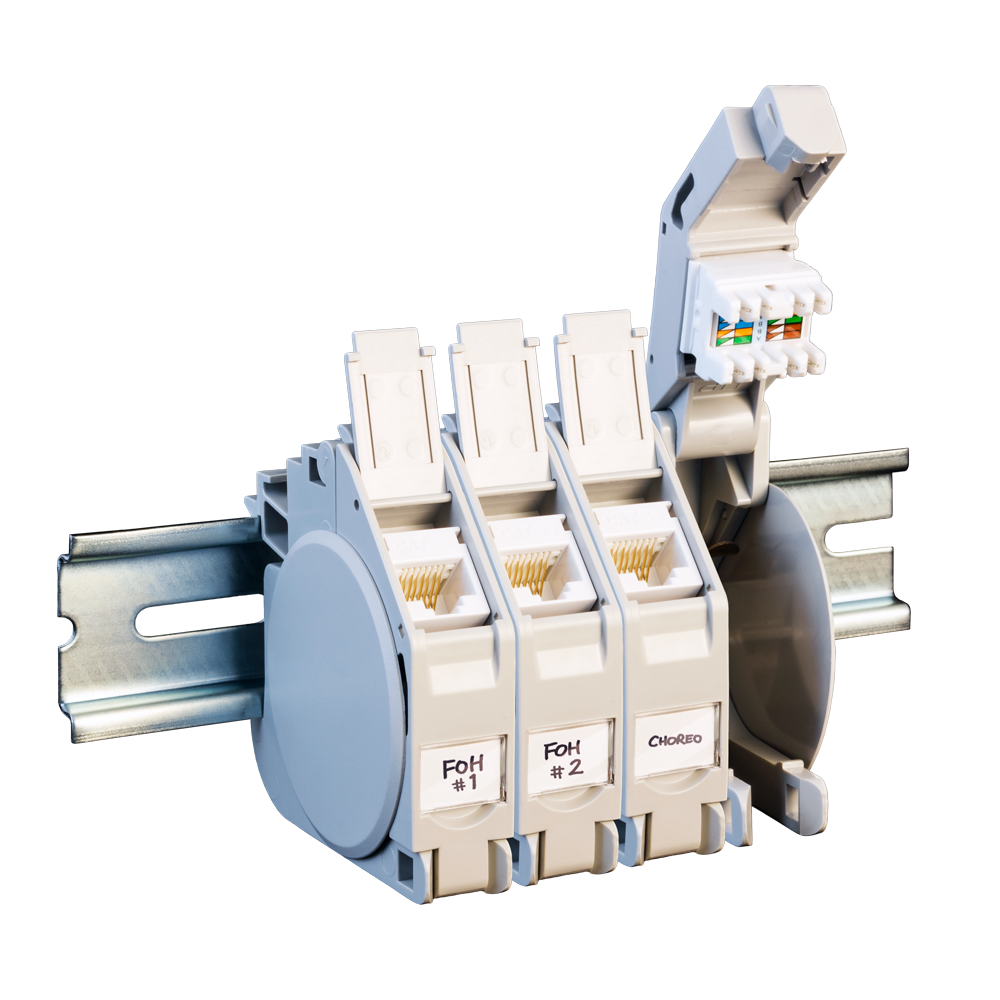

The PWACC RJPATCH accessory is a RJ45 patch module that facilitates easier and cleaner installation of VIA DIN-mount switches (PWVIA DIN) in Pathway DIN enclosures (PWENC). Terminate building Cat5 cable to the punch-down keystone jack, install onto 35mm DIN rail and use standard Ethernet patch cables to complete the wiring to the switch(es). Create custom Ethernet patch bays inside the enclosure.The PWACC RJPATCH module includes a labeling window to further organize the network wiring, and a hinged cover protects the jack when not in use. Side covers are removable to save space when installing several modules in a continuous row.
Read More
Read Less
Product Type Hardware
Series PWACC
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Pathway PWACC RJPATCH.pdf PWACC RJ45 Patch Module Spec Sheet 9/17/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets parts-1-and-3-only.docx CSI Div 26 Parts 1 and 3 only 1/10/2022
    Guideline Specification Sheets rj45-patch-accessory.docx CSI Div 26 Part 2 1/10/2022
  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD block-PWACC RJPATCH Q4.dwg Blocks and Drawing (PWACC RJPATCH Q4) DWG 8/2/2021
    CAD block-PWACC RJPATCH Q4.pdf Blocks and Drawing (PWACC RJPATCH Q4) PDF 8/2/2021 View
