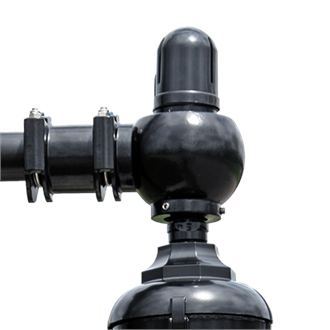

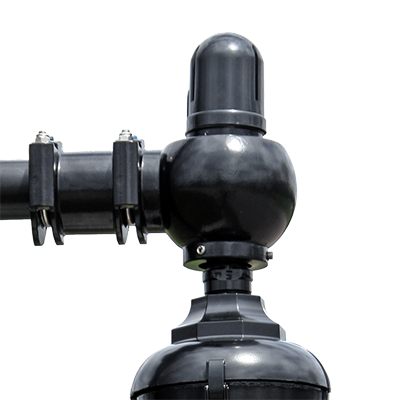

ROAM node.png

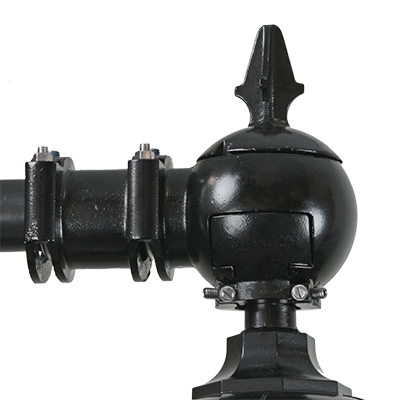

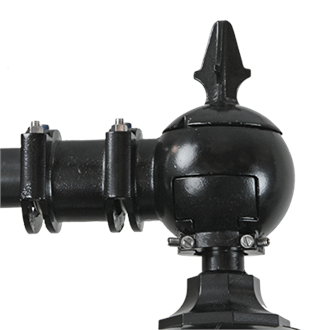

Quick-Mount Fitter I

MPL3 Pendant

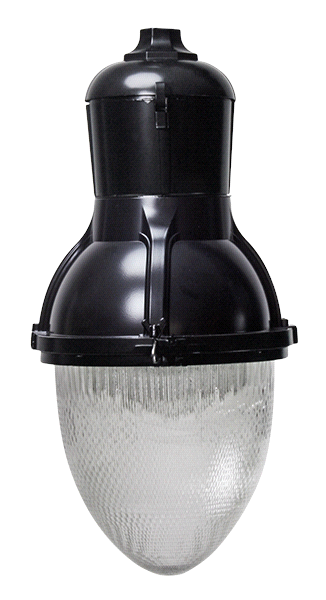

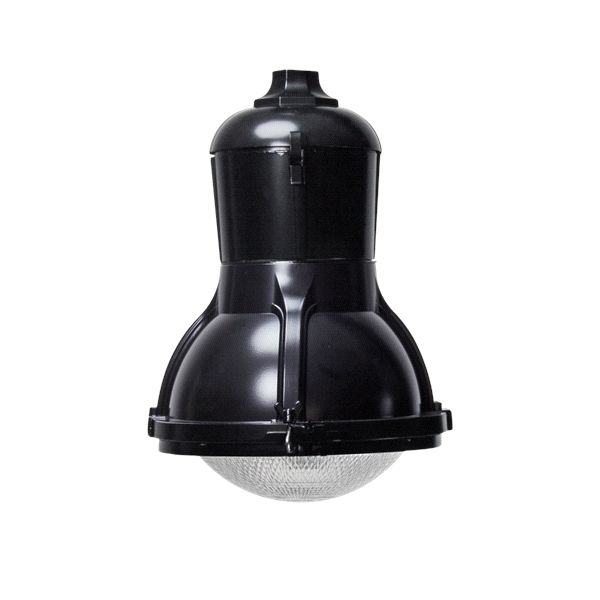

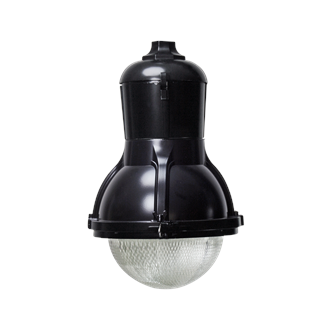

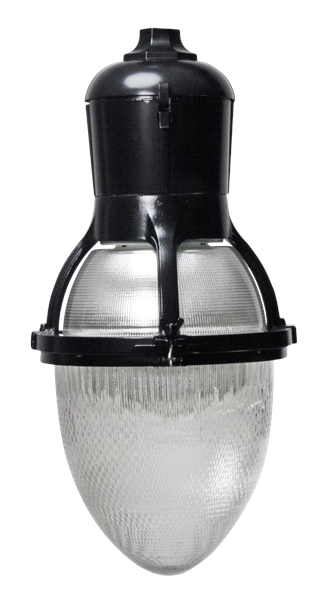

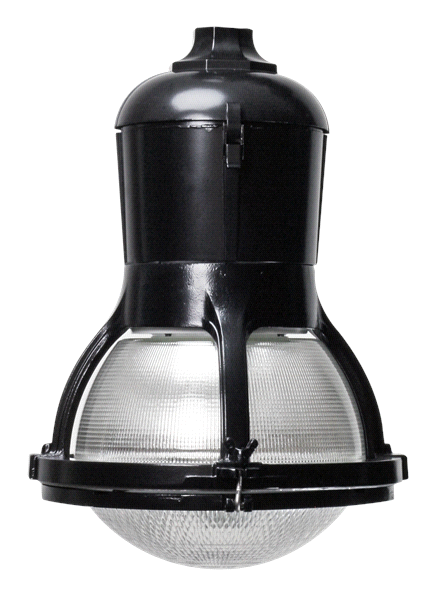

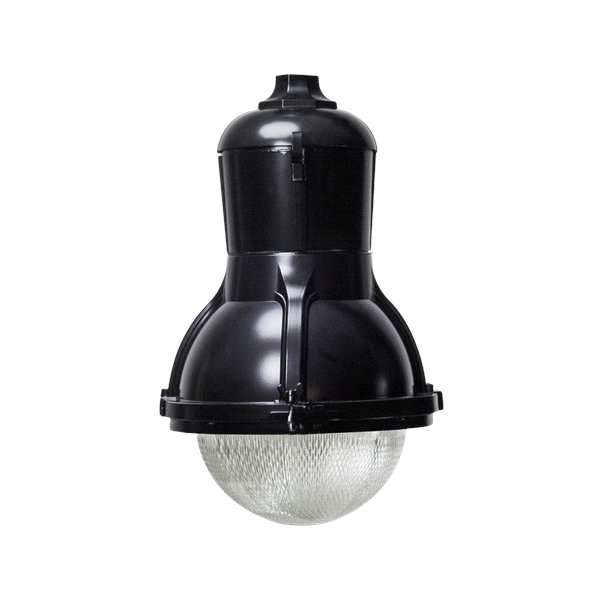

Memphis® Tear Drop Large Roadway LED Pendant

By Holophane

    DLC StandardBuy America(n) Option Available
  • Overview
  • Specifications

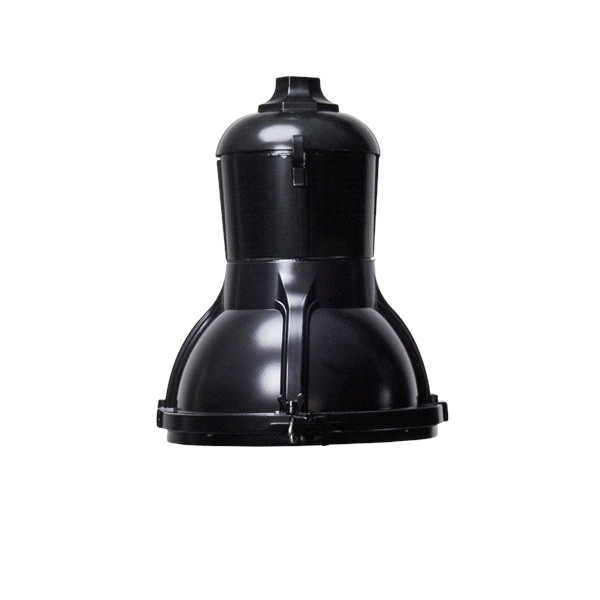

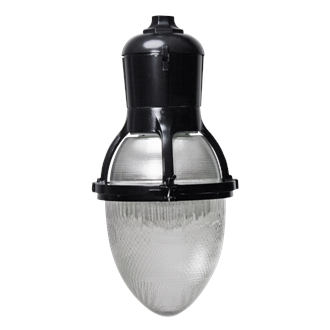

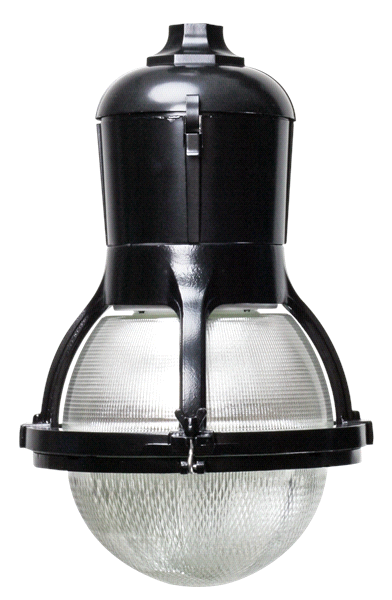

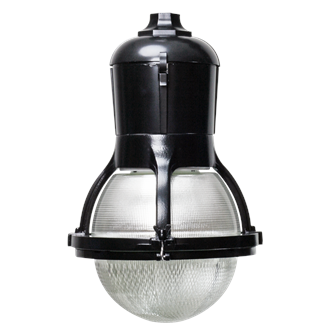

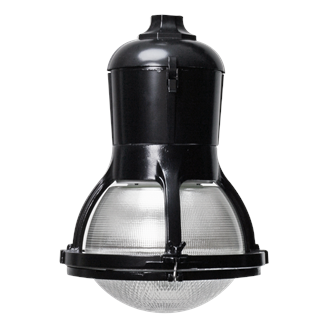

The Memphis® Tear Drop LED (Large) expands the leadership of Holophane within the market for period-styled luminaires serving urban applications with higher mounting heights. This pendant offering spans a wide range of lumen packages to replace 100-400 watt HPS while keeping with a traditional tear drop day-form. Built on breakthrough LEDs and precision-engineered optics, the Memphis Tear Drop LED provides exceptional illumination for roadway applications while saving energy, and reducing maintenance cost. Available with 3 prismatic glass optics, an additional uplight optic option, as well as a flat glass optic for zero-uplight applications. Also, retrofit kits are available for most existing Holophane HID Tear Drop luminaires.
Read More
Read Less
Light Source LED - Static
Lumens 7200 LM, 8800 LM, 11,700 LM, 13,200 LM, 14,000 LM, 14,500 LM, 15,800 LM, 17,200 LM, 17,400 LM, 19,700 LM, 22,100 LM, 24,400 LM, 26,500 LM, 28,400 LM, 31,200 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA, DLC Standard
Environmental Listing IP66
Regulatory Listing cCSAus
Product Type Pendant
Voltage Rating 120-277, 347-480
Mounting Type Pendant
Primary Material Aluminum
Architectural Style Historical
Series MPL3, LTDRL3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LTDRL3.pdf Large Teardrop Retrofit LED 3 11/15/2022 View
    SPEC SHEET MPL3.pdf MPL3 Memphis Large Teardrop LED 11/15/2022 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IM-396.pdf Utility Installation Sheet - Tear Drop LED 3 View
    Installation Instructions IM-397-B.pdf Large Teardrop Retrofit LED 3 1/12/2022 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Tear Drop LED Family Brochure.pdf Tear Drop LED Family Brochure 1/12/2022 View
    Nomenclature Crossover ESL2 & MPL2 Crossover-tool to ESL3 & MPL2 (2).xls ESL2 & MPL2 Crossover Tool 5/3/2022
    Sell Sheet LTDRL3 Sell Sheet.pdf Tear Drop LED 3 Retrofit Kits Flyer 7/11/2022 View
    Sell Sheet Tear Drop LED Large Sell Sheet.pdf Tear Drop LED Large Sell Sheet 1/6/2022 View
