EVO® 4" Round Healthcare

General Illumination LED Downlight & Wall Wash for MRI, Patient Room, and Surgical Suite

By Gotham Lighting

    WarmDimTunable WhiteBuy America(n)
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°

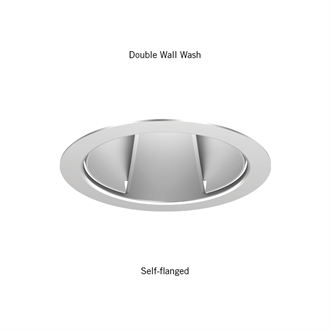

  • Functions: Open, corner, and double wall wash solutions
  • Beam angles: Medium, medium wide, wide
  • Trim options: Flushed or regressed lens
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-4,500 LM
  • Listings: CSA, Wet Location, IP64, IP65, IP66 NSF2 Non-Food/Splash Zone
  • Mainstream Dynamic Lighting: nTune, WarmDim
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Optics: Easy field-interchangeable optics
  • Trims: Easy field-interchangeable open trim
  • Color: Multiple powder paint options and antimicrobial paint finish available
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80, 85, 90
Product Type Housing
Compliance Listing BAA
Environmental Listing IP64, IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Fixture Wattage 23, 28
Voltage Rating 120, 120-277, 277
Trim Style Cone, Corner Wallwash, Double Wallwash, Lensed, Open, Single Wallwash
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Patient Room, Special Applications, Surgical Suite, Healthcare, MRI
Function Downlight, Wall Wash
Product Series EVO
Series EVORDB, EVO4P, EVO4SG, EVO4MWW, EVO4M, EVO4MDWW, EVO4MCWW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO4M.pdf EVO 4" MRI Downlight 4/22/2021 View
    SPEC SHEET EVO4MWW.pdf EVO 4" MRI Open, Corner & Double Wall Wash 4/26/2021 View
    SPEC SHEET EVO4P.pdf EVO 4" Patient Room Downlight 6/15/2021 View
    SPEC SHEET EVO4P-NTUNE.pdf EVO 4” Patient Room with nTune Tunable White & Warm Dimming 4/26/2021 View
    SPEC SHEET EVO4SG.pdf EVO 4" Surgical Suite Downlight 6/15/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 35K 90CRI.pdf EVO4 35K 90CRI 9/8/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4-EVO6 35K 80CRI.pdf EVO4 35K 80CRI 9/8/2022 View
  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5201007 EVO 4"/6"/8" Open, Wall Wash and Shower Trims 4/29/2019 View
    Installation Instructions CJ5201070 EVO Spec App Install Sheet.pdf EVO 4"/6" Surgical Suite Housing and Trim 4/24/2019 View
    Installation Instructions CTAEVO4-6.pdf EVO 4"/6" Ceiling Thickness Adap tor for Unibody frame 1/13/2022 View
    Installation Instructions EVO_RD_FRAME_INSTALL_CJ5201006_pdf.pdf EVO 4"/6"/8" Housing 10/18/2021 View
    Installation Instructions EVOMRI_EVORDB_ Instruc_CJ5200931.PDF EVO 4"/6" MRI Housing with Remote Driver Box 1/28/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO MRI Sell Sheet EVO MRI Sell Sheet 9/23/2019 View
    Sell Sheet EVO Patient Room Sell Sheets EVO Patient Room Sell Sheet 9/30/2019 View
    Sell Sheet EVO Surgical Sell Sheet EVO Surgical Sell Sheet View
