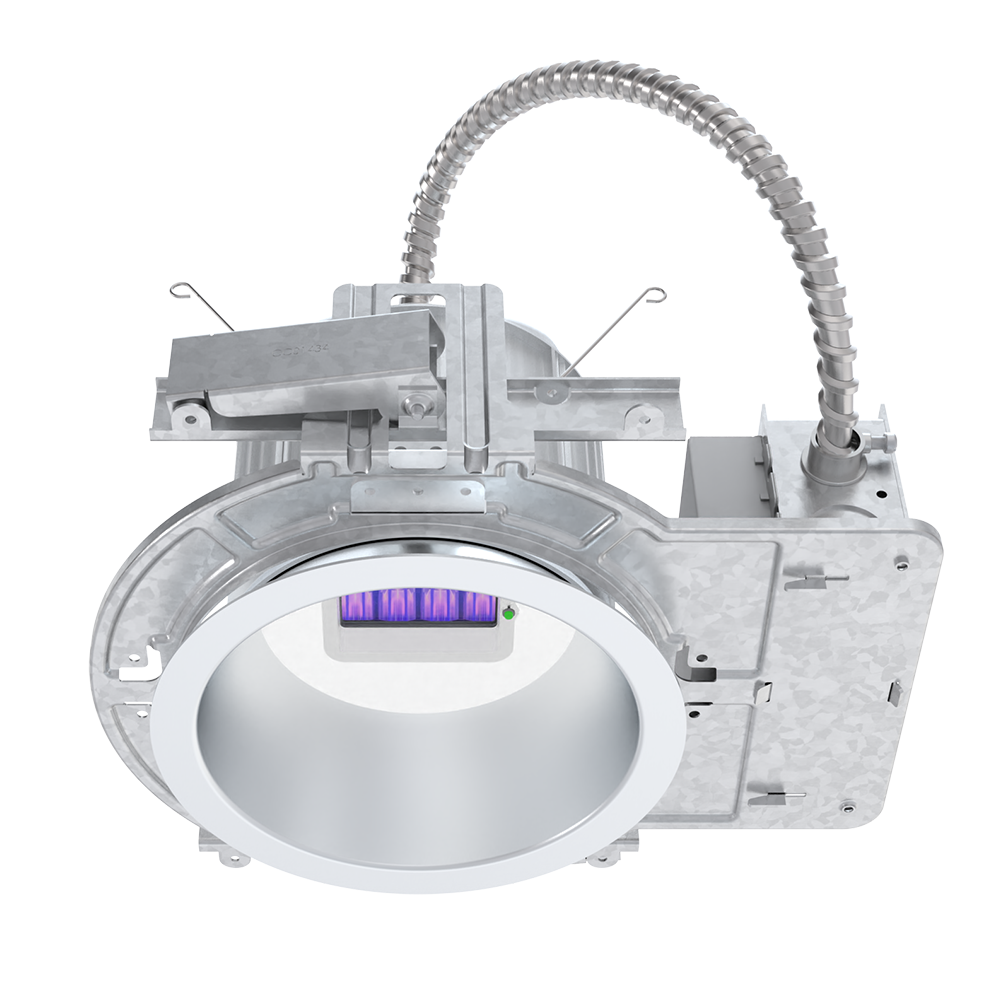

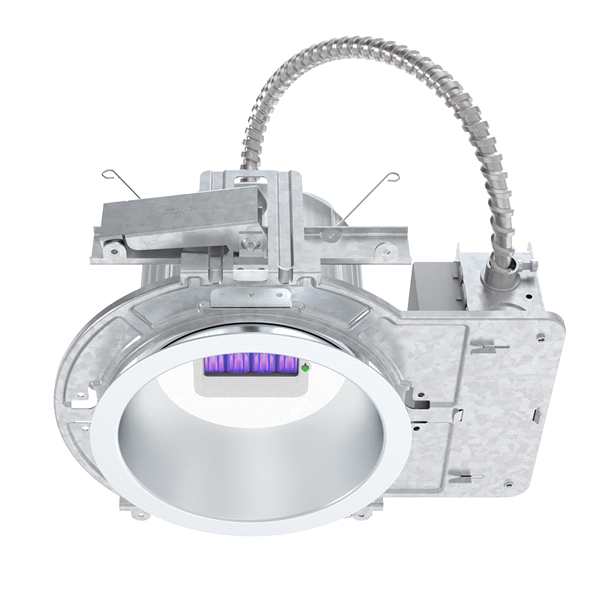

EVO® 6" Round Downlight with Care222® Technology

General Illumination LED New Construction and Remodel Downlight with UV Disinfection* Technology

By Gotham Lighting

    UV SpectrumBuy America(n)
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Functions: Open downlight
  • Beam angles: Medium wide
  • Trim options: Self-flanged, flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 500-2,000 LM
  • Listings: UL, Damp Location, Buy American
  • Driver capabilities: Up to 8 different driver options
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.

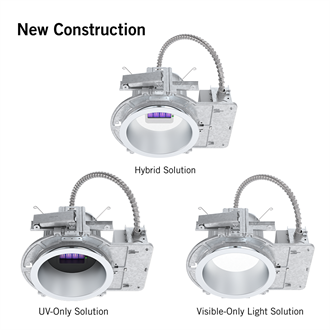

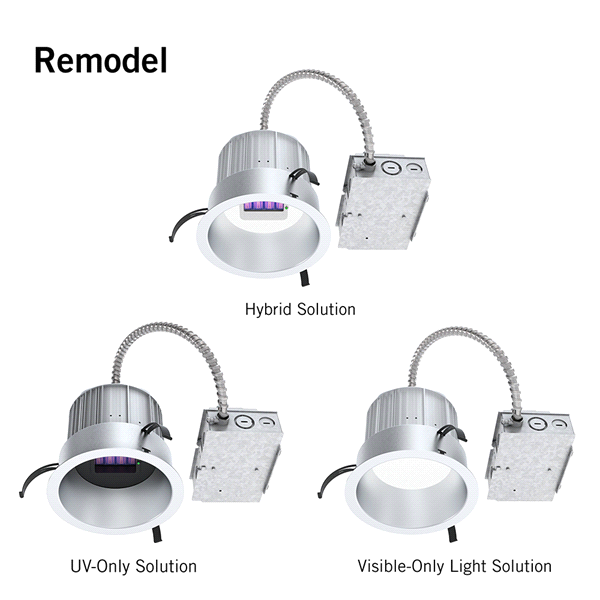

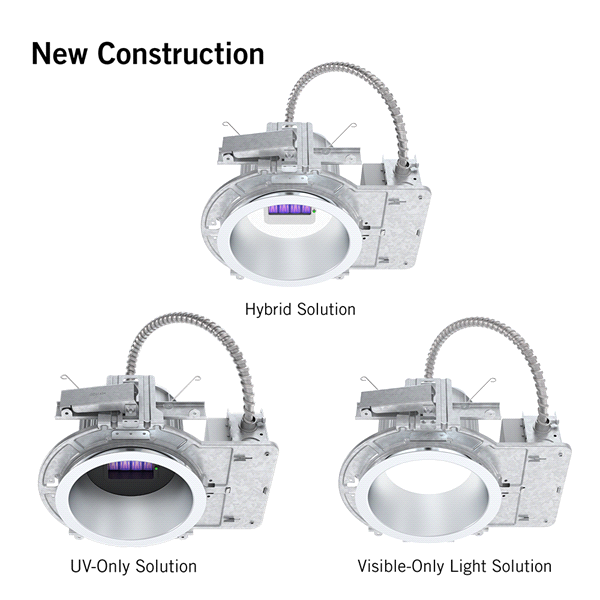

  • EVO® Hybrid Solution: Visible light and the Care222® technology in the same fixture without compromising visually comfortable lighting
  • EVO® UV-Only Solution: Incorporates the Care222® technology without visible light
  • EVO® Visible Light-Only Solution: Emits visible light (with no Care222® technology incorporated) and is intended to create visual consistency with the other two solutions in a space
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings


  • *All references to “disinfection” are referring generally to bioburden reduction and are not intended to refer to any specific definition of the term as may be used for other purposes by the U.S. Food and Drug Administration or the U.S. Environmental Protection Agency. Bioburden reduction of is a function of fixture run time and the distance to the UV light source, airflow, room size, shadow areas and/or other factors, and the level of reduction will vary within a specific space. This fixture is not intended for use in the cure, mitigation or prevention of disease and is not certified or approved for use as a medical device by the FDA. It is the obligation of the end-user to consult with appropriately qualified Professional Engineer(s), a Certified Infection Control professional and a Certified Industrial Hygienist, as applicable, to determine whether this fixture meets the applicable requirements for system performance, code compliance, safety (including safety and hazard alerting signs), suitability and effectiveness for use in a particular application design. In no event will Acuity Brands Lighting be responsible for any loss resulting from any use of this fixture in an application design.
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Static, UV
UV Spectrum 222nm
Lumens 2000 LM, Not Applicable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Not Applicable
CRI 80, 85, 90, Not Applicable
Product Type Downlight
Compliance Listing BAA
Environmental Listing Damp Location
Regulatory Listing UL
Dimming Protocol 0-10V, DALI, Forward Phase
Voltage Rating 120, 120-277, 277, MVOLT
Trim Style Cone, Open
Color Black, Clear, White
Mounting Type Recessed
Special Applications Education, Government, Healthcare, Hospitality, Offices & Banks, Patient Room, Retail
Function Downlight
Product Series EVO
Series EVO6, EVO6RM

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO6-CARE222.pdf EVO 6" Open Downlight with Care222 UV Technology 2/15/2022 View
    SPEC SHEET EVO6RM-CARE222.pdf EVO 6" Open Remodel Downlight with Care222 UV Technology 2/15/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00312-001.pdf EVO 6" with UV Care222 Technology Downlight & Remote Downlight 8/11/2022 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO6 Downlight with Care222 Sell Sheet EVO® 6" Round Downlight with Care222 Technology Sell Sheet 12/2/2021 View
