EVO® 4" Round Shower

General Illumination LED New Construction & Retrofit Downlight for Shower

By Gotham Lighting

    WarmDimTunable WhiteBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS

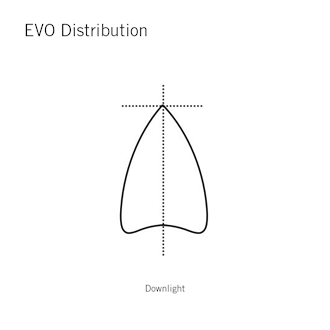

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open downlight
  • Beam angles: Medium wide

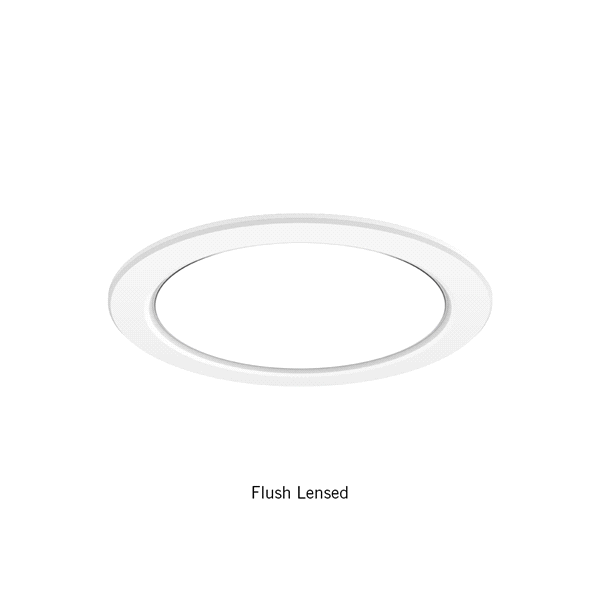

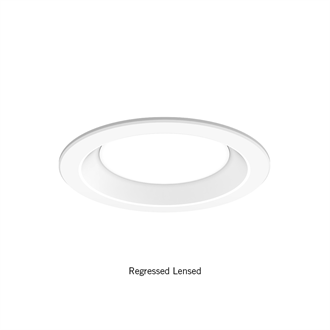

  • Trim options: Flushed or regressed lens
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-4,500 LM
  • Listings: CSA, Wet Location, IP66, NSF2 Non-Food/Splash Zone
  • Mainstream Dynamic Lighting: nTune, WarmDim
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Optics: Easy field-interchangeable optics
  • Trims: Easy field-interchangeable open trim
  • Color: Multiple powder paint options and antimicrobial paint finish available

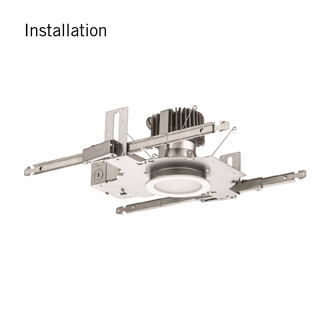

  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, Low UGR
Environmental Listing IP66, NSF, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Voltage Rating 120, 120-277, 277, DC2DC 57VDC
Trim Style Cone, Lensed
Color Black, White
Mounting Type Recessed
Special Applications Education, Healthcare, Hospitality, Residential, Retrofit, Shower, Special Applications, Sports and Recreation
Function Downlight
Product Series EVO
Series EVO4SH, EVO4RSH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO4RSH.pdf EVO 4" Shower Retrofit Downlight 10/31/2022 View
    SPEC SHEET EVO4SH.pdf EVO 4" Shower Downlight 11/17/2022 View
    SPEC SHEET EVO4SH-NTUNE.pdf EVO 4" Shower Downlight with nTune Tunable White & Warm Dimming 11/1/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 30K 90CRI.pdf EVO4 30K 90CRI 10/25/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 35K 90CRI.pdf EVO4 35K 90CRI 9/8/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4-EVO6 35K 80CRI.pdf EVO4 35K 80CRI 9/8/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00376-003 - INSTALLATION INSTRUCTIONS, DC2DC UNIVERSAL SUPPLEMENTAL.pdf DC2DC Supplemental Installation Sheet 5/16/2023 View
    Installation Instructions CJ5201007 EVO 4"/6"/8" Open, Wall Wash and Shower Trims 4/29/2019 View
    Installation Instructions CJ5201070 EVO Spec App Install Sheet.pdf EVO 4"/6" Surgical Suite Housing and Trim 4/24/2019 View
    Installation Instructions CTAEVO4-6.pdf EVO 4"/6" Ceiling Thickness Adap tor for Unibody frame 1/13/2022 View
    Installation Instructions EVO_RD_FRAME_INSTALL_CJ5201006_pdf.pdf EVO 4"/6"/8" Housing 10/18/2021 View
    Installation Instructions EVO-R_INSTALL_CJ5201009.pdf EVO 4"/6"/8" Retrofit Housing View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO Shower Sell Sheet.pdf EVO Shower Sell Sheet 11/13/2019 View
