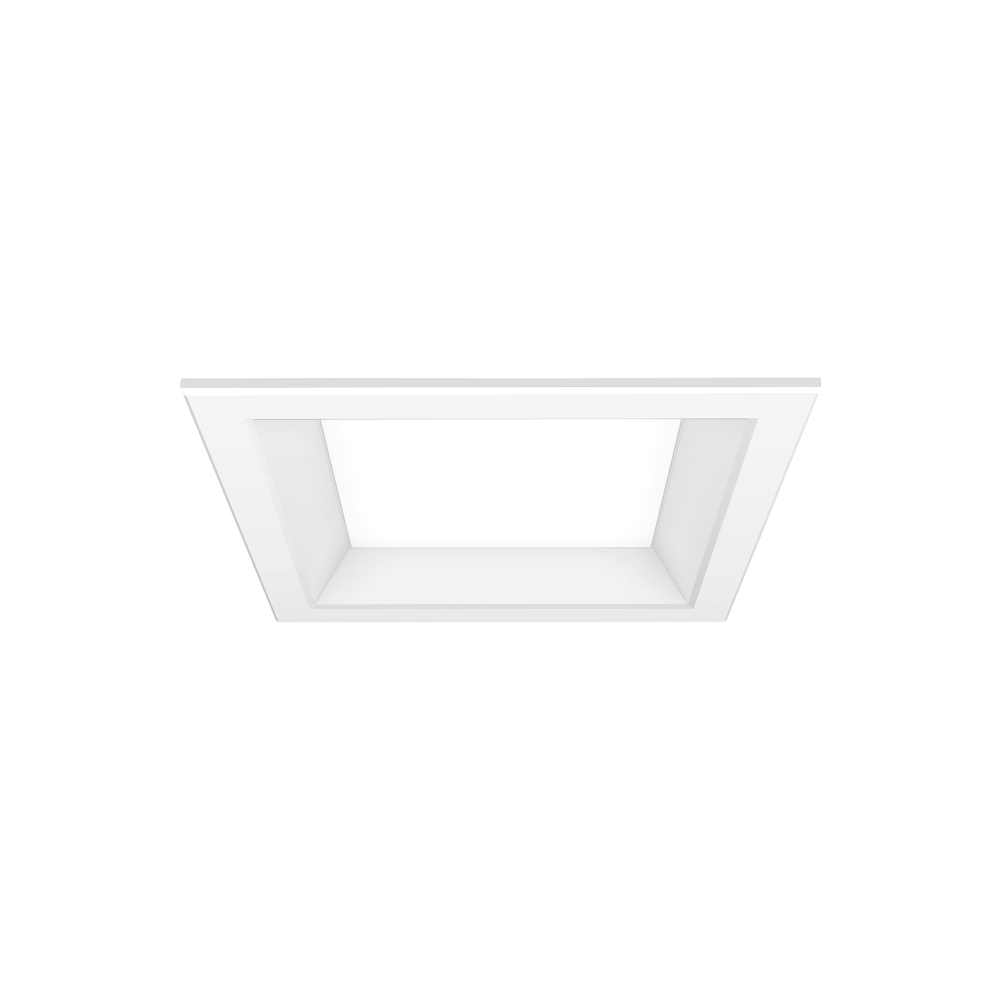

EVO® 4" Square Food Service

General Illumination LED Downlight for Food Service

By Gotham Lighting

    Buy America(n)
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open downlight
  • Beam angles: Medium wide
  • Trim options: Flushed or regressed lens
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-2,500 LM
  • Listings: CSA, Wet Location, IP66, NSF2 Non-Food/Splash Zone
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Optics: Easy field-interchangeable optics
  • Trims: Easy field-interchangeable open trim
  • Color: Multiple powder paint options and antimicrobial paint finish available
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 4 IN
Shape Square
Light Source LED - Static
Lumens 250 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 85, 90
Product Type Downlight
Compliance Listing BAA
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Voltage Rating 120, 120-277, 277
Trim Style Lensed
Color Black, White
Mounting Type Recessed
Special Applications Education, Food Service, Healthcare, Hospitality, Special Applications
Function Downlight
Product Series EVO
Series EVO4SQFS

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO4SQFS-4-LENSED.pdf EVO 4" Food Service Downlight 4/26/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5201071 EVO SQ Spec App Install Sheet.pdf EVO 4"/6" Surgical Suite Housing and Trim View
    Installation Instructions EVO_SQ_SQLW_FRAME_INSTALL_CJ5201108_pdf.pdf EVO 4"/6" Housing 4/24/2019 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO Food Service Sell Sheet.pdf EVO Food Service Sell Sheet 9/23/2019 View
