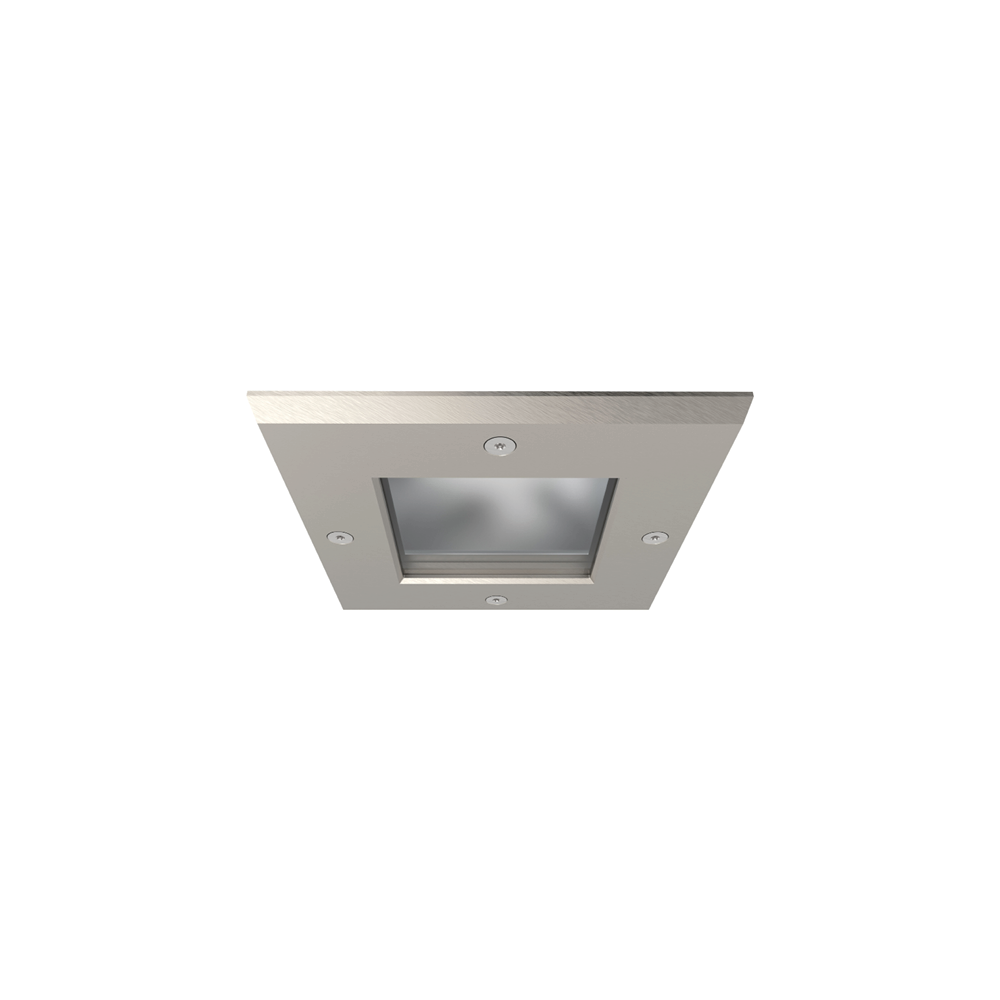

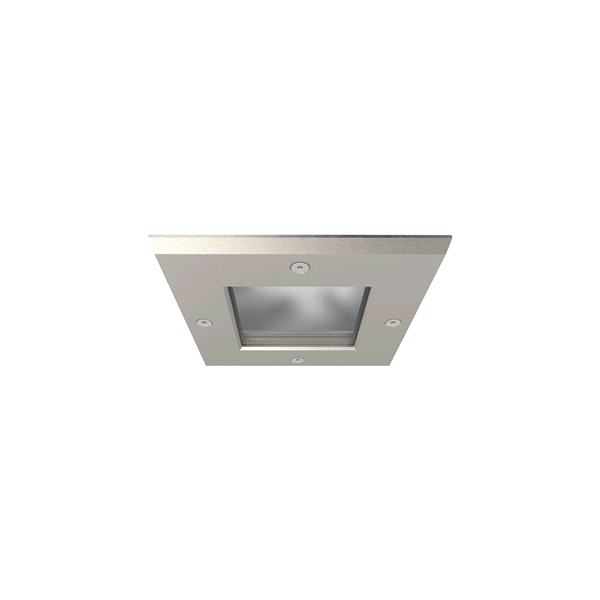

Incito™ 2" Square Vandal Resistant

High Center Beam LED Downlight & Adjustable for Vandal and Tamper Resistance

By Gotham Lighting

    Energy Star®Buy America(n)
  • Overview
  • Specifications
OPTICS
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
  • Functions: Open downlight
  • Beam angles: Ranging from 15° to 45°, 35°x15°, 50°x20°, 50°x60°, 60°x70°
  • Trim options: Solite pattern lens, light frost lens, clear
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-2,000 LM
  • Listings: Energy Star, UL, Wet Location, IP66, IC Rated
  • Driver capabilities: Up to 2 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Optics: Easy field-interchangeable optics
  • Trims: Minimal 3/8” trim flange
  • Mounting: IK10 impact resistant construction with 1/4”polycarbonate lens
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 2 IN
Shape Square
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing IC, IP66, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Digital, Reverse Phase
Voltage Rating 120, 120-277, 277
Trim Style Angle-Cut, Lensed
Color Almond, Black, Blue, Bronze, Gray, Green, Ivory, Red, Silver, White
Mounting Type Recessed
Special Applications Behavioral Health, Confinement, Education, Enclosed & Gasketed, Special Applications, Sports and Recreation, Transportation, Vandal Resistant
Function Adjustable, Downlight
Product Series Incito
Series ICO2SQVR, ICO2SQVRADJ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ICO2SQVR.pdf ICO 2" Vandal Resistant Downlight 4/4/2022 View
    SPEC SHEET ICO2SQVRADJ.pdf ICO 2" Vandal Resistant Adjustable 4/4/2022 View
