Incito™ 2" Square Downlight

High Center Beam LED Downlight

By Gotham Lighting

    Energy Star®Buy America(n)
  • Overview
  • Specifications
OPTICS
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
  • Cutoff: 45-50°
  • Functions: Open downlight
  • Beam angles: Ranging from 15° to 55°, 35°x15°, 50°x20°, 50°x60°, 60°x70°

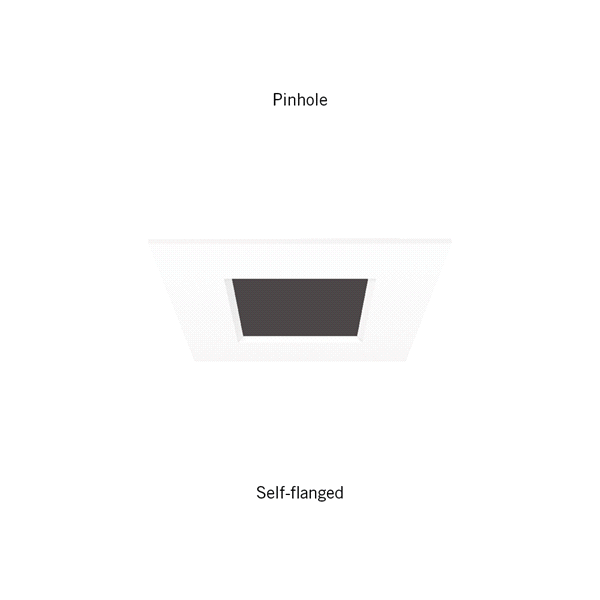

  • Trim options: Self-flanged, flangeless, Pinhole, Shower, Steam Room, Bevel
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-2,000 LM
  • Listings: Energy Star, UL, Wet Location, IC Rated, Buy American
  • Driver capabilities: Up to 5 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular and matte diffuse
  • Optics: Easy field-interchangeable optics
  • Trims: Minimal 3/8” trim flange
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 2 IN
Shape Square
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing IC, IP66, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Digital, Reverse Phase
Fixture Wattage 12, 19.8, 28.6, 3.1, 5.6, 8.7
Voltage Rating 120, 120-277, 277
Trim Style Angle-Cut, Bevel, Lensed, Open, Pinhole
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Natatorium, Offices & Banks, Residential, Retail, Shower, Special Applications, Sports and Recreation, Steam Room
Function Downlight
Product Series Incito
Series ICO2SQ, ICO2SQBEV, ICO1SQPIN, ICO2SQSH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ICO1SQPIN.pdf ICO 2" Pinhole Downlight 5/6/2021 View
    SPEC SHEET ICO2SQ.pdf ICO 2" Open Downlight 5/6/2021 View
    SPEC SHEET ICO2SQBEV.pdf ICO 2" Bevel Downlight 5/6/2021 View
    SPEC SHEET ICO2SQSH STRM.pdf ICO 2" Steam Room Downlight 5/6/2021 View
    SPEC SHEET ICO2SQSH.pdf ICO 2" Shower Downlight 5/6/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 3/9/2022 View
    Installation Instructions EVO2 & ICO2 Installation Instructions CJ52308.pdf EVO/ICO 2" Housing 2/27/2020 View
    Installation Instructions EVO2 & ICO2 Mud Ring-Flangeless Installation Instructions CJ52316.pdf EVO/ICO 2" Flangeless Mud Ring 2/27/2020 View
    Installation Instructions EVO2 & ICO2 NCH,CP,ICAT Installation Instructions CJ52315.pdf EVO/ICO 2" Structural Reinforcement Pan, Chicago Plenum, and IC/Airtight Housings 3/27/2020 View
    Installation Instructions EVO2 & ICO2 Trim Installation Instructions CJ52310.pdf EVO/ICO 2" Trim 2/27/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Incito-2-inch-brochure.pdf Incito 2" Downlight and Cylinder Brochure View
    Sell Sheet Gotham_Incito2_DownlightSellSheet0615_FINAL_r1.pdf Incito 2 in Downlight View
    Sell Sheet Incito Aquare Sell Sheet Incito Aquare Sell Sheet View
