EVO® 8" Round Shower

General Illumination LED Downlight for Shower

By Gotham Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open downlight
  • Beam angles: Medium wide

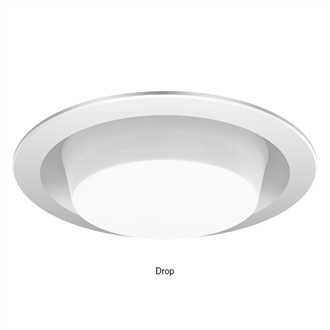

  • Trim options: Dead front regressed or drop
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 2,000-3,000 LM
  • Listings: CSA, Wet Location, IP66, NSF2 Non-Food/Splash Zone
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Color: White, black, and antimicrobial paint finish available
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 8 IN
Shape Round
Light Source LED - Static
Lumens 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 85, 90
Product Type Downlight
Compliance Listing BAA
Environmental Listing IP66, NSF, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 277, 347
Trim Style Cone, Lensed
Color White
Mounting Type Recessed
Special Applications Sports and Recreation, Education, Healthcare, Hospitality, Residential, Shower, Special Applications
Function Downlight
Product Series EVO
Series EVO8SH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO8SH.pdf EVO 8" Shower Downlight 11/2/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5201007 EVO 4"/6"/8" Open, Wall Wash and Shower Trims 4/29/2019 View
    Installation Instructions EVO_RD_FRAME_INSTALL_CJ5201006_pdf.pdf EVO 4"/6"/8" Housing 10/18/2021 View
