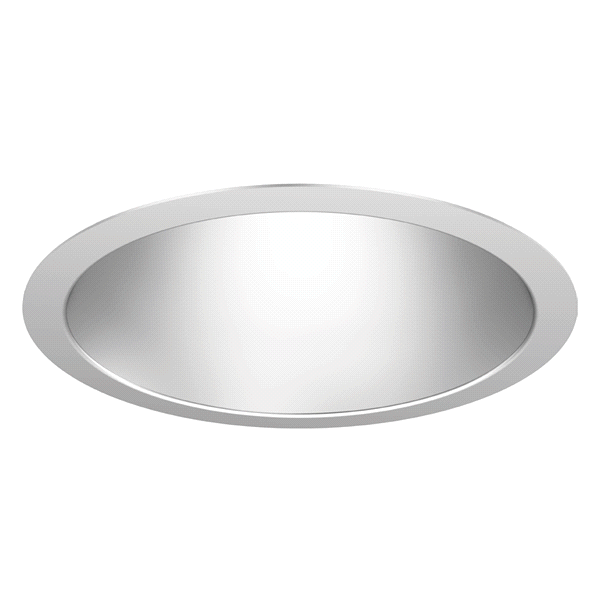

EVO® 8" Round Retrofit Downlight & Wall Wash

General Illumination LED Retrofit Downlight & Wall Wash

By Gotham Lighting

    Buy America(n)
  • Overview
  • Specifications
OPTICS

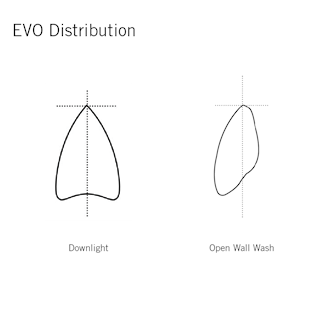

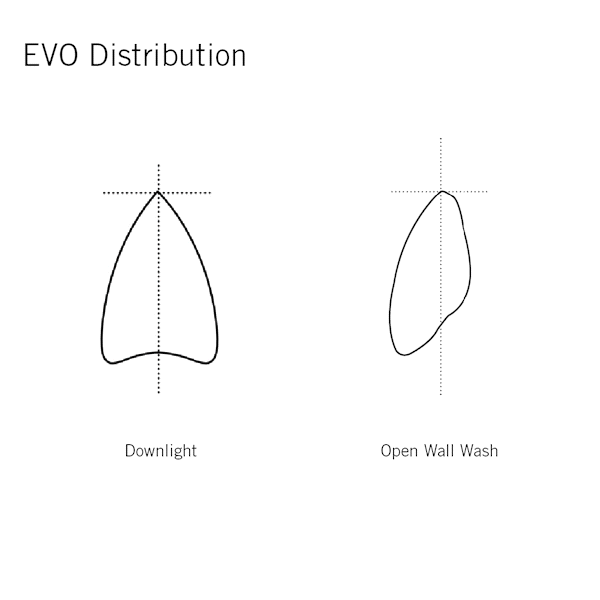

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Downlight and open wall wash solutions
  • Beam angles: Very narrow, narrow, medium, medium wide, wide

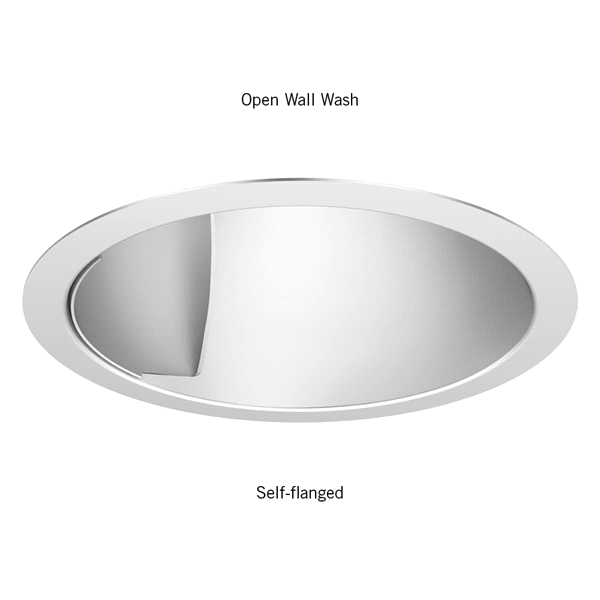

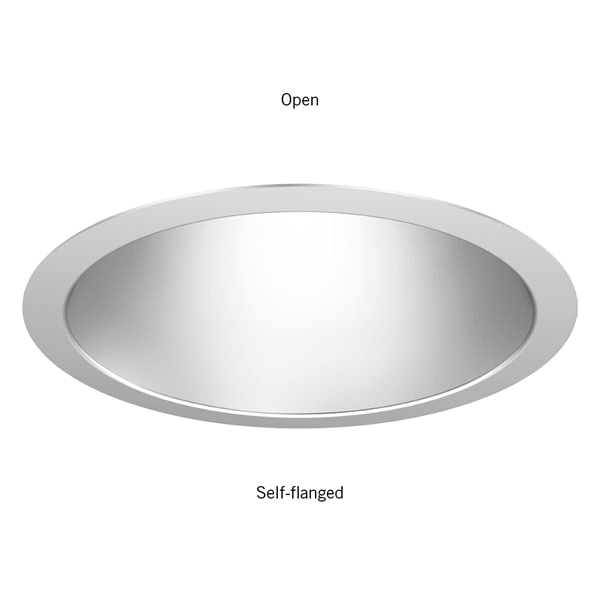

  • Trim options: Self-flanged, flangeless, shower
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 2,000-3,000 LM
  • Listings: CSA, Wet Location
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 8 IN
Shape Round
Light Source LED - Static
Lumens 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 85, 90
Product Type Retrofit Kit
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 277, 347
Trim Style Cone, Open, Single Wallwash
Color Black, Clear, Gold, Pewter, Wheat, White

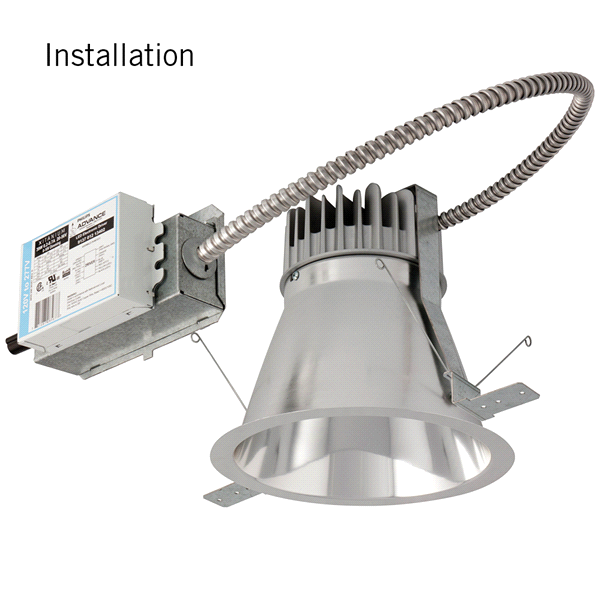

Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Retrofit
Function Downlight, Wall Wash
Product Series EVO
Series EVO8R, EVO8RWW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO8R.pdf EVO 8" Retrofit Open Downlight 4/29/2021 View
    SPEC SHEET EVO8RWW.pdf EVO 8" Retrofit Open Wall Wash 4/29/2021 View
