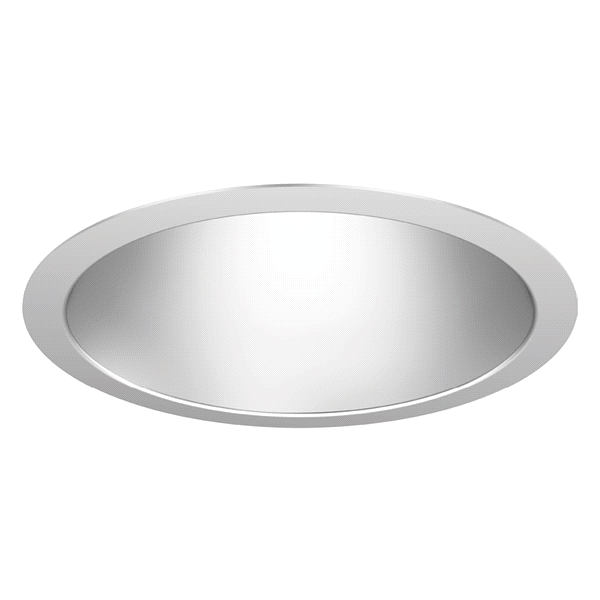

EVO® 8" Round Downlight

General Illumination LED Downlight

By Gotham Lighting

    Buy America(n)
  • Overview
  • Specifications
OPTICS

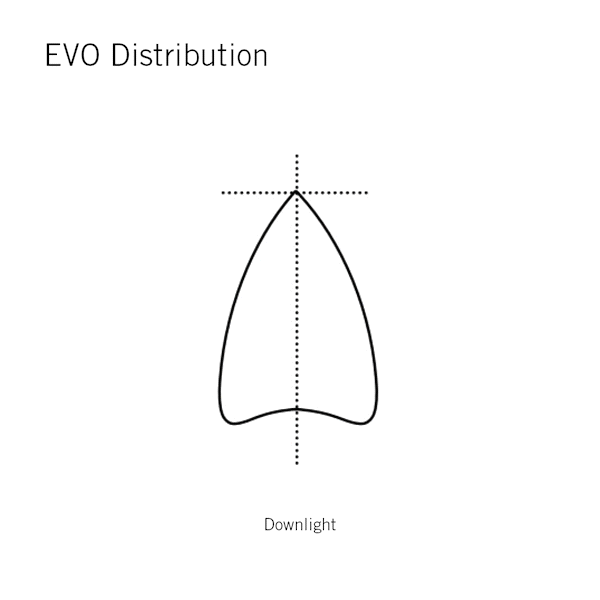

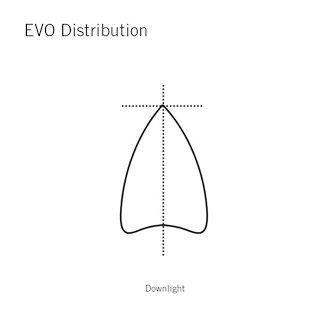

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°

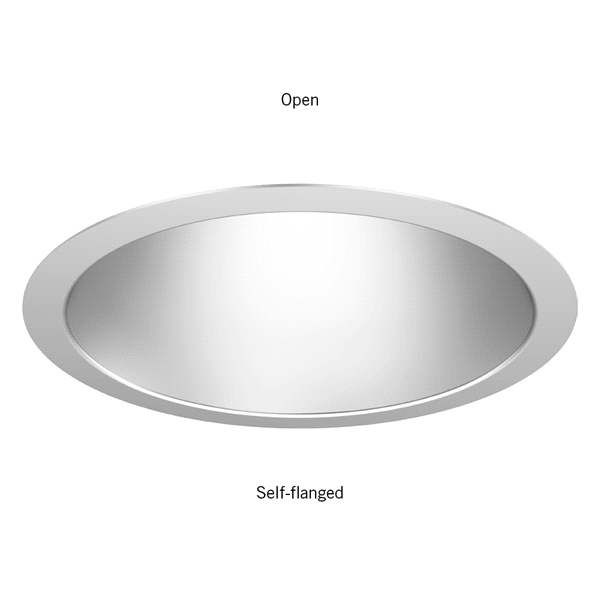

  • Functions: Open downlight
  • Beam angles: Very narrow, narrow, medium, medium wide, wide

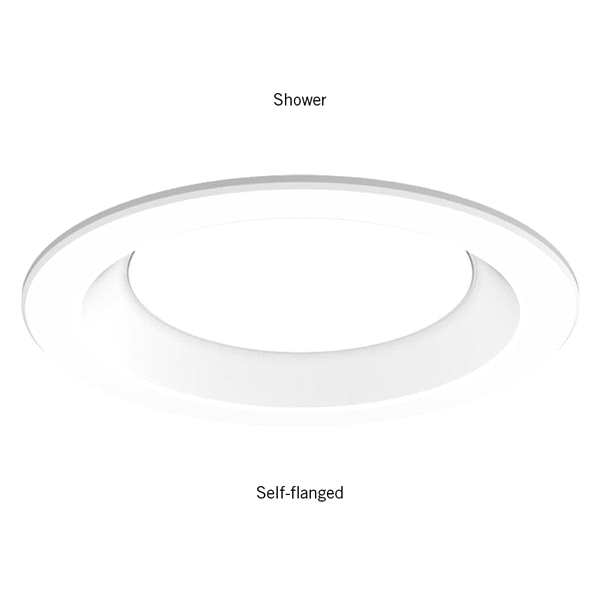

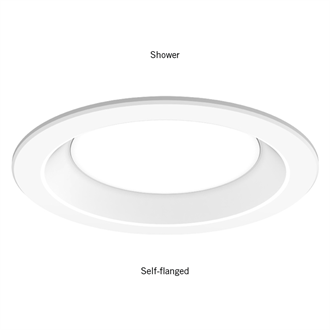

  • Trim options: Self-flanged, shower
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 2,000-3,000 LM
  • Listings: CSA, Wet Location
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular

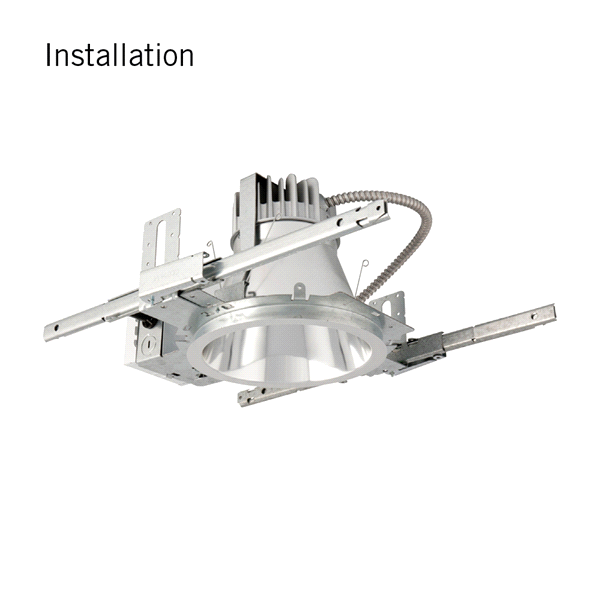

  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 8 IN
Shape Round
Light Source LED - Static
Lumens 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 85, 90
Product Type Downlight
Compliance Listing BAA
Environmental Listing IP66, NSF, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 277, 347
Trim Style Cone, Lensed, Open
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Shower, Special Applications, Sports and Recreation
Function Downlight
Product Series EVO
Series EVO8SH, EVO8

Read More Read Less
