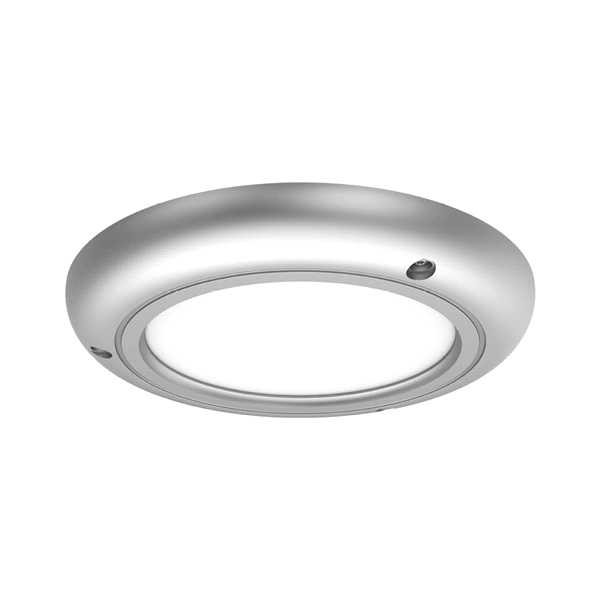

EVO® 6" Round Vandal Resistant

General Illumination LED Downlight for Vandal and Tamper Resistance

By Gotham Lighting

    Buy America(n)
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open downlight
  • Beam angles: Very narrow, narrow, medium, medium wide, wide
  • Trim options: Glass or polycarbonate lens
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-4,500 LM
  • Listings: CSA, Wet Location, IP55, IP65
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Color: Multiple powder paint options available
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 85, 90
Product Type Downlight
Compliance Listing BAA
Environmental Listing IP65, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Lensed
Color Black, Bronze, Clear, Gold, Gray, Pewter, Silver, Wheat, White
Mounting Type Recessed
Special Applications Behavioral Health, Confinement, Education, Enclosed & Gasketed, Sports and Recreation, Transportation, Vandal Resistant
Function Downlight
Product Series EVO
Series EVO6VR

Read More Read Less
