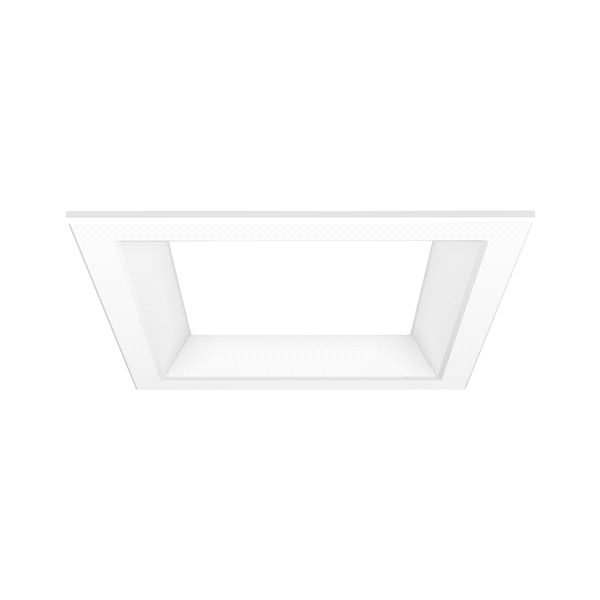

EVO® 6" Square Healthcare

General Illumination LED Downlight for MRI, Patient Room, and Surgical Suite

By Gotham Lighting

    WarmDimTunable WhiteLow UGR
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open downlight
  • Beam angles: Medium wide
  • Trim options: Flush or regressed lens
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-5,000 LM
  • Listings: CSA, Wet Location, IP64, IP65, NSF2 Non-Food/Splash Zone
  • Mainstream Dynamic Lighting: nTune, WarmDim
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Trims: Easy field-interchangeable open trim
  • Color: White, black, antimicrobial paint finish available
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 6 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80, 85, 90
Product Type Housing
Compliance Listing Low UGR
Environmental Listing IP64, IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Fixture Wattage 23, 28
Voltage Rating 120, 120-277, 277, 347
Trim Style Lensed, Open
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Healthcare, MRI, Patient Room, Special Applications, Surgical Suite
Function Downlight
Product Series EVO
Series EVORDB, EVO6SQP, EVO6SQSG, EVO6SQM

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO6SQM.pdf EVO 6" MRI Downlight 11/2/2022 View
    SPEC SHEET EVO6SQP.pdf EVO 6" Patient Room Downlight 11/2/2022 View
    SPEC SHEET EVO6SQP-NTUNE.pdf EVO 6" Patient Room Downlight with nTune Tunable White & Warm Dimming 11/1/2022 View
    SPEC SHEET EVO6SQSG.pdf EVO 6" Surgical Suite Downlight 11/2/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO6 40K 80CRI.pdf EVO6 40K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 80CRI.pdf EVO6 35K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 90CRI.pdf EVO6 35K 90CRI 8/22/2022 View
  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5201071 EVO SQ Spec App Install Sheet.pdf EVO 4"/6" Surgical Suite Housing and Trim View
    Installation Instructions EVO_SQ_SQLW_FRAME_INSTALL_CJ5201108_pdf.pdf EVO 4"/6" Housing 4/24/2019 View
    Installation Instructions EVOMRI_EVORDB_ Instruc_CJ5200931.PDF EVO 4"/6" MRI Housing with Remote Driver Box 1/28/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO MRI Sell Sheet EVO MRI Sell Sheet 9/23/2019 View
    Sell Sheet EVO Patient Room Sell Sheets EVO Patient Room Sell Sheet 9/30/2019 View
    Sell Sheet EVO Surgical Sell Sheet EVO Surgical Sell Sheet View
