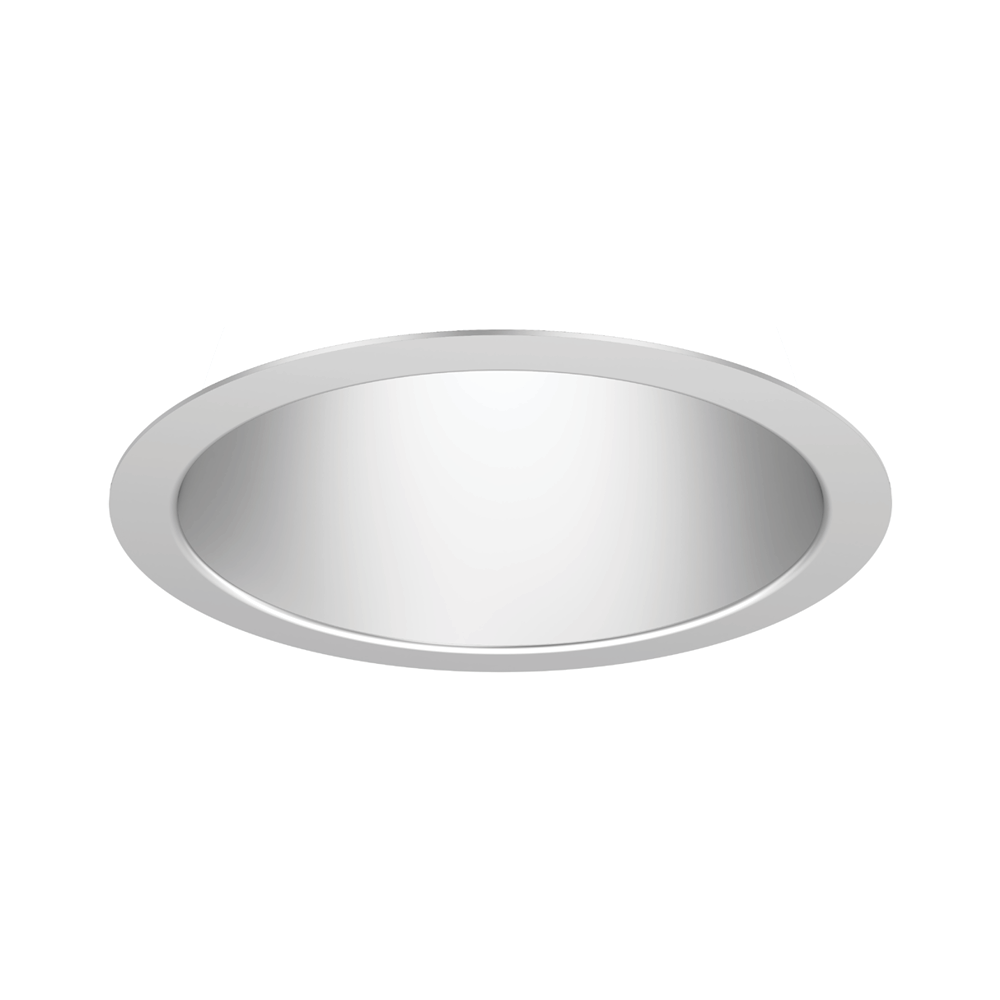

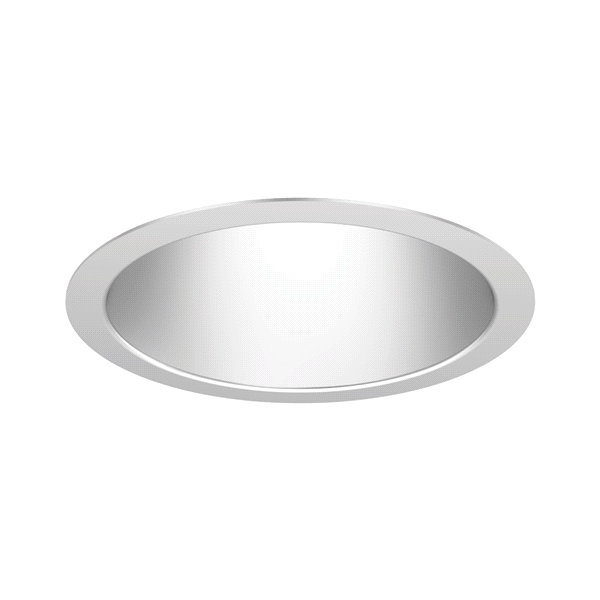

EVO® 6" Round Retrofit Downlight & Wall Wash

General Illumination LED Retrofit Downlight & Wall Wash

By Gotham Lighting

    Energy Star®Buy America(n)
  • Overview
  • Specifications
OPTICS

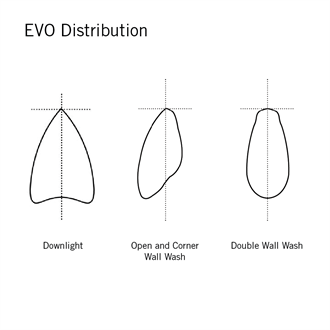

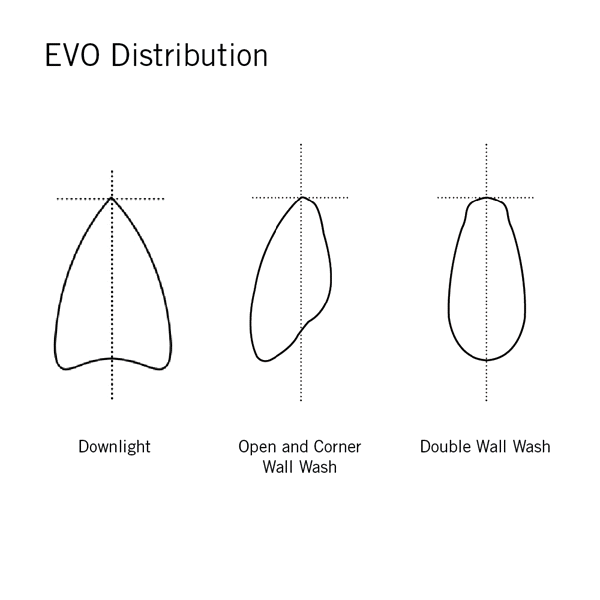

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°

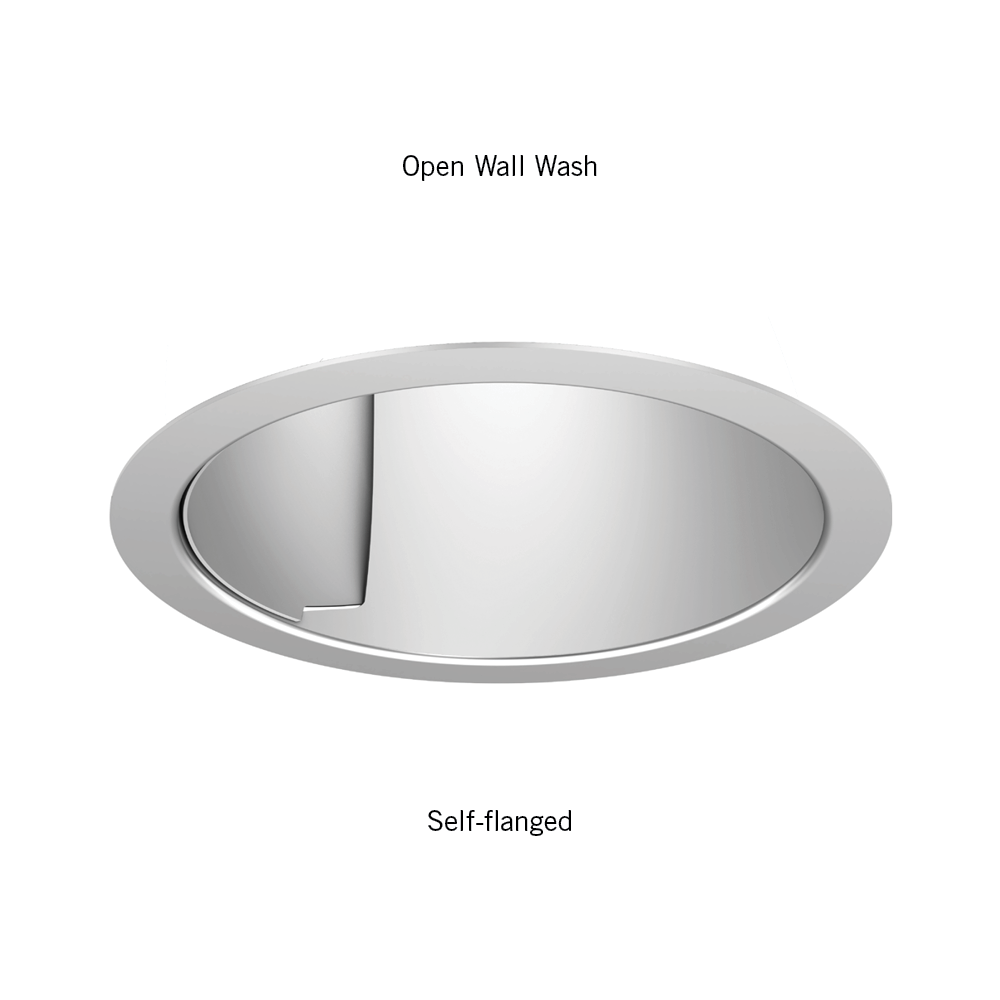

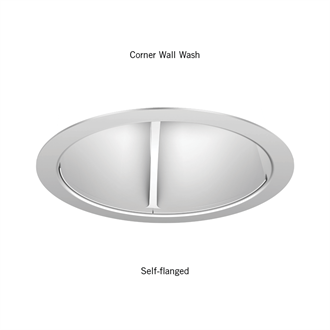

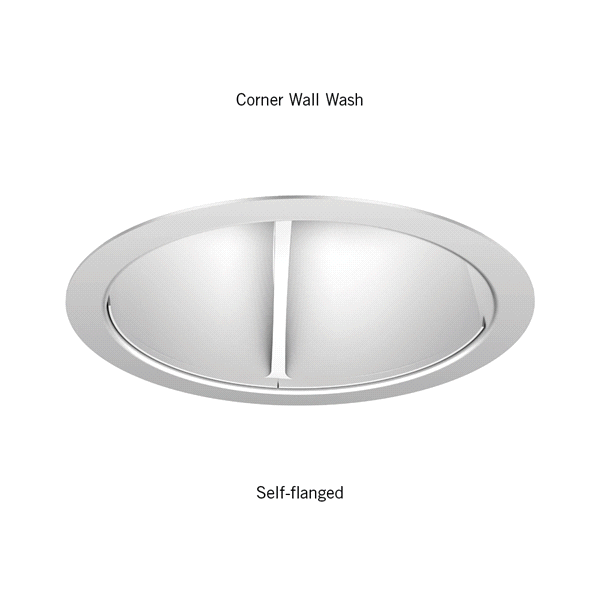

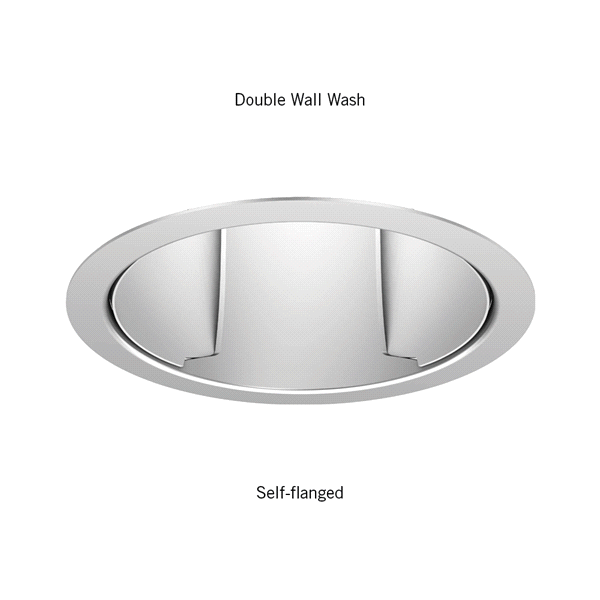

  • Functions: Open, corner, and double wall wash solutions
  • Beam angles: Very narrow, narrow, medium, medium wide, wide

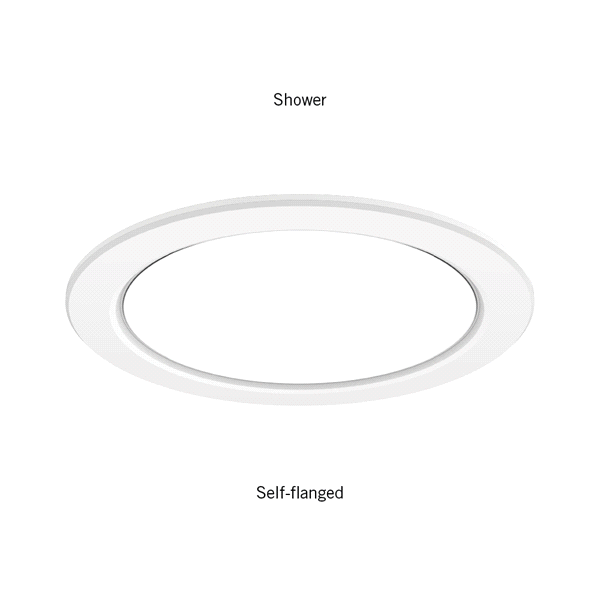

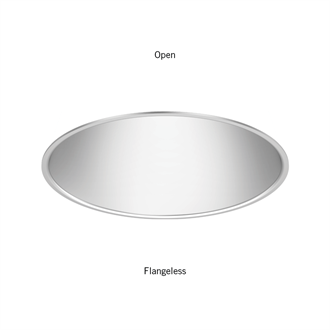

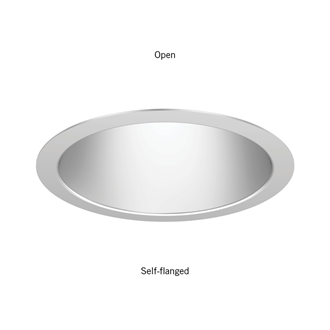

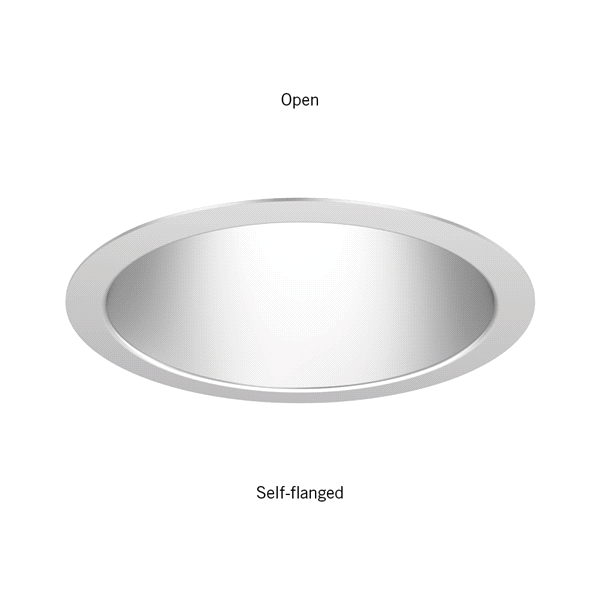

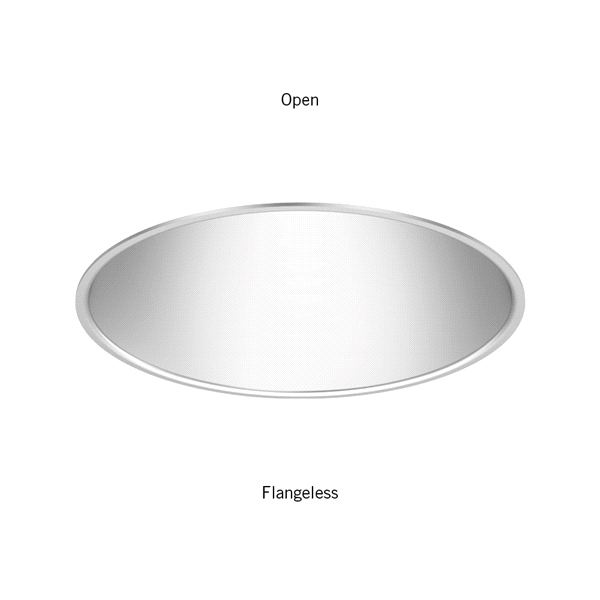

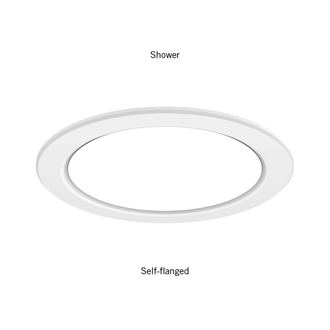

  • Trim options: Self-flanged, flangeless, shower
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-4,500 LM
  • Listings: Energy Star, CSA, Wet Location
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Trims: Easy field-interchangeable open trim
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 85, 90

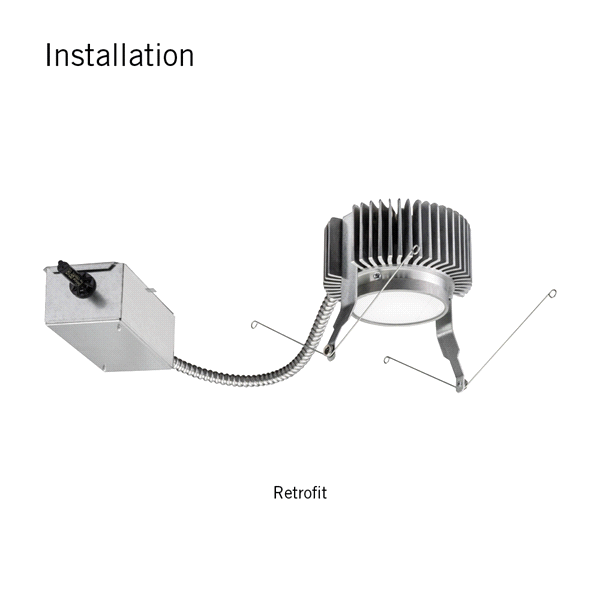

Product Type Retrofit Kit
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing IP66, NSF, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Corner Wallwash, Double Wallwash, Lensed, Open, Single Wallwash
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Entertainment, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Retrofit, Shower, Special Applications, Sports and Recreation
Function Downlight, Wall Wash
Product Series EVO
Series EVO6R, EVO6RSH, EVO6RWW, EVO6RDWW, EVO6RCWW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO6R-OPEN.pdf EVO 6" Retrofit Open Downlight 7/6/2021 View
    SPEC SHEET EVO6RSH.pdf EVO 6" Shower Retrofit Downlight 4/29/2021 View
    SPEC SHEET EVO6RWW.pdf EVO 6" Round Retrofit Downlight & Wall Wash 7/6/2021 View
