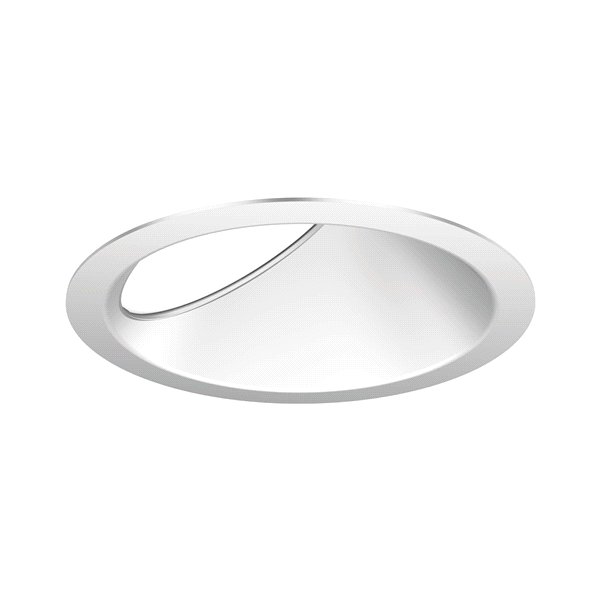

EVO® 6" Round Wall Wash

General Illumination LED Wall Wash

By Gotham Lighting

    WarmDimTunable WhiteEnergy Star®Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open, corner, and double wall wash, and lensed wall wash solutions
  • Trim options: Self-flanged, flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-17,500 LM
  • Listings: Energy Star, CSA, Wet Location
  • Mainstream Dynamic Lighting: nTune, WarmDim
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Trims: Easy field-interchangeable open trim
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 6000 LM, 8000 LM, 10,000 LM, 12,000 LM, 15,000 LM, 17,500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277, 347, DC2DC 57VDC
Trim Style Corner Wallwash, Double Wallwash, Single Wallwash
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Wall Wash
Product Series EVO
Series EVO6LW, EVO6DWW, EVO6CWW, EVO6WW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO6LW.pdf EVO 6" Lensed Wall Wash 5/3/2023 View
    SPEC SHEET EVO6LW-DC2DC.pdf EVO 6" Lensed Wallwash Downlight with DC2DC Architecture 4/24/2023 View
    SPEC SHEET EVO6LW-NTUNE.pdf EVO 6" Lensed Wall Wash with nTune Tunable White and Warm Dimming 4/29/2021 View
    SPEC SHEET EVO6LW-NTUNE-DC2DC.pdf EVO 6" Lensed Wall Wash nTune Tunable White with DC2DC Architecture 4/17/2023 View
    SPEC SHEET EVO6WW.pdf EVO 6" Open, Corner & Double Wall Wash 5/3/2023 View
    SPEC SHEET EVO6WW-NTUNE.pdf EVO 6" Open, Corner & Double Wall Wash with nTune Tunable White & Warm Dim 11/1/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO6 40K 80CRI.pdf EVO6 40K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 80CRI.pdf EVO6 35K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 90CRI.pdf EVO6 35K 90CRI 8/22/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00376-003 - INSTALLATION INSTRUCTIONS, DC2DC UNIVERSAL SUPPLEMENTAL.pdf DC2DC Supplemental Installation Sheet 5/16/2023 View
    Installation Instructions CJ5201007 EVO 4"/6"/8" Open, Wall Wash and Shower Trims 4/29/2019 View
    Installation Instructions CTAEVO4-6.pdf EVO 4"/6" Ceiling Thickness Adap tor for Unibody frame 1/13/2022 View
    Installation Instructions EVO_Flangeless_CJ5200914_REV-A_pdf.pdf EVO 6" Flangeless Mud Ring 4/24/2019 View
    Installation Instructions EVO_RD_FRAME_INSTALL_CJ5201006_pdf.pdf EVO 4"/6"/8" Housing 10/18/2021 View
