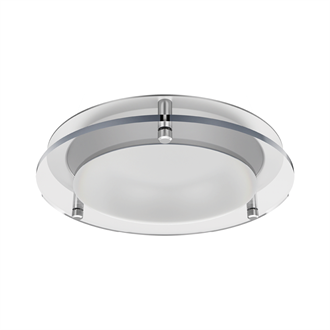

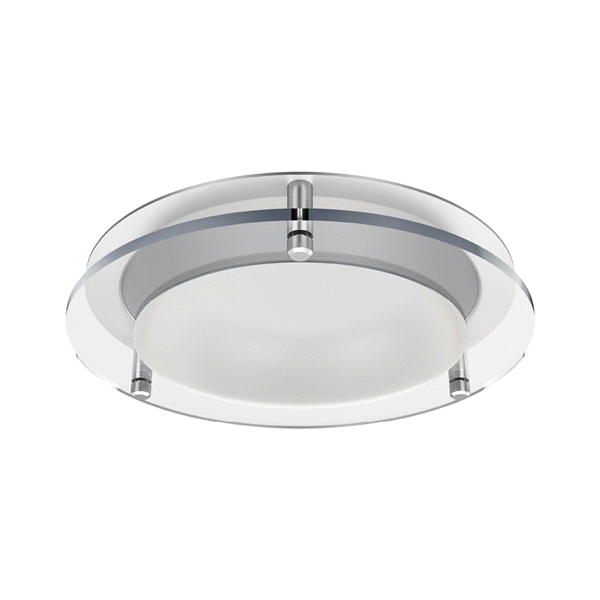

EVO® 6" Round Decorative

General Illumination LED Downlight for Decorative

By Gotham Lighting

    Buy America(n)
  • Overview
  • Specifications
OPTICS

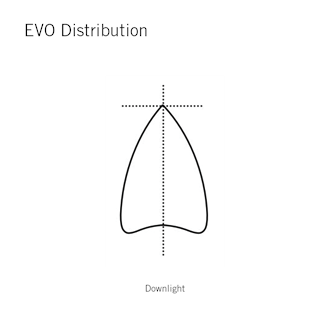

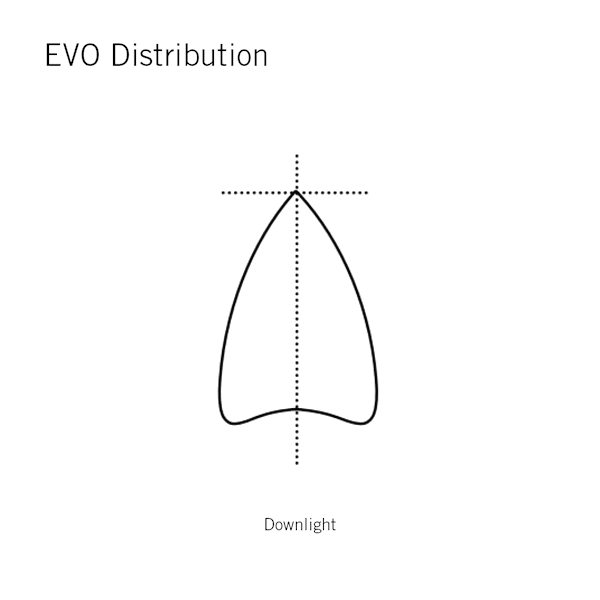

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open downlight
  • Beam angles: Medium wide

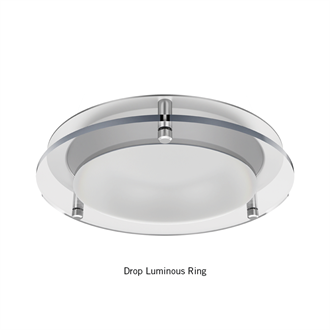

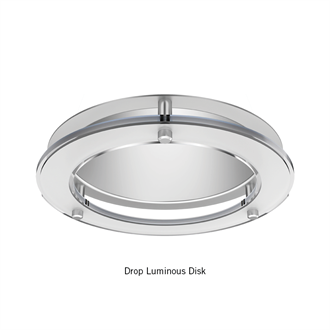

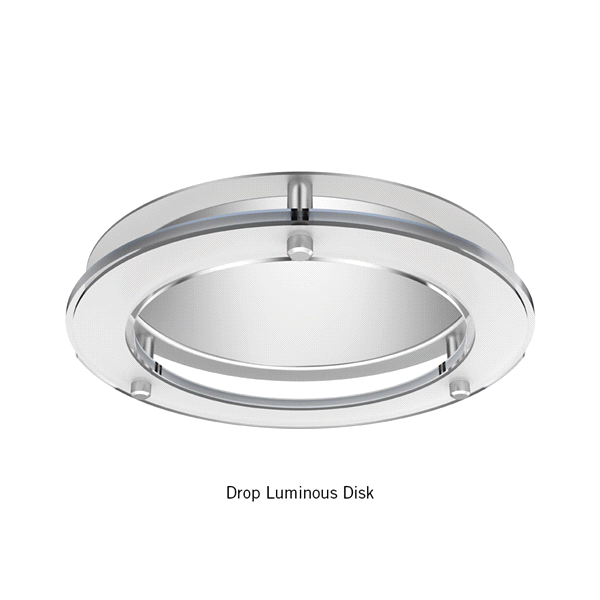

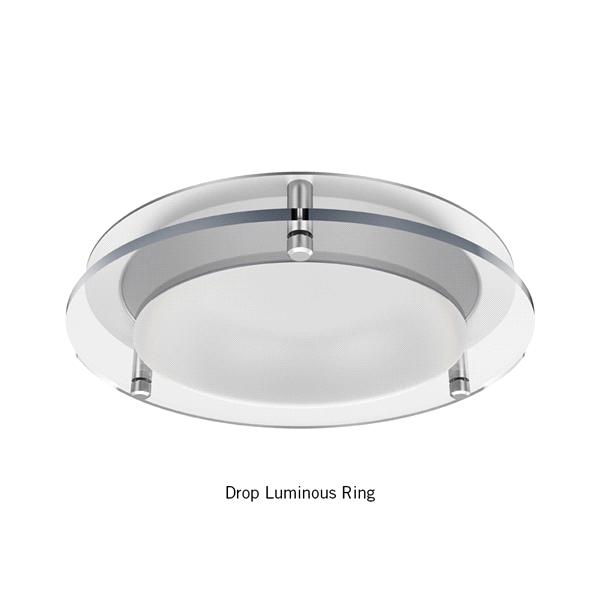

  • Trim options: Drop luminous ring or drop luminous disk
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-4,500 LM
  • Listings: CSA, Wet Location
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 85, 90
Product Type Downlight
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277, 347
Trim Style Decorative
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Decorative, Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Downlight
Product Series EVO
Series EVO6DLR, EVO6DLD

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO6DECO.pdf EVO 6" Decorative Downlight 5/20/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Deco Ring_Disk_CJ5201130 (Discontinued) DLD or DLR Decorative Glass Ring, 6" & 8" Trim View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures EVO_vs_Incito Comparison Guide View
    Brochures Gotham EVO Brochure Solid-State Downlighting- Science Powers Design View
    Brochures Surface-Mounted Lighting - Lighting Architectural Spaces Surface-Mounted Lighting - Lighting Architectural Spaces View
    Sell Sheet GAL_2897_EVO Decorative Sell Sheet_0519_lo.pdf EVO Decorative Spec Sheet 9/23/2019 View
