Design Select (15 days or less)

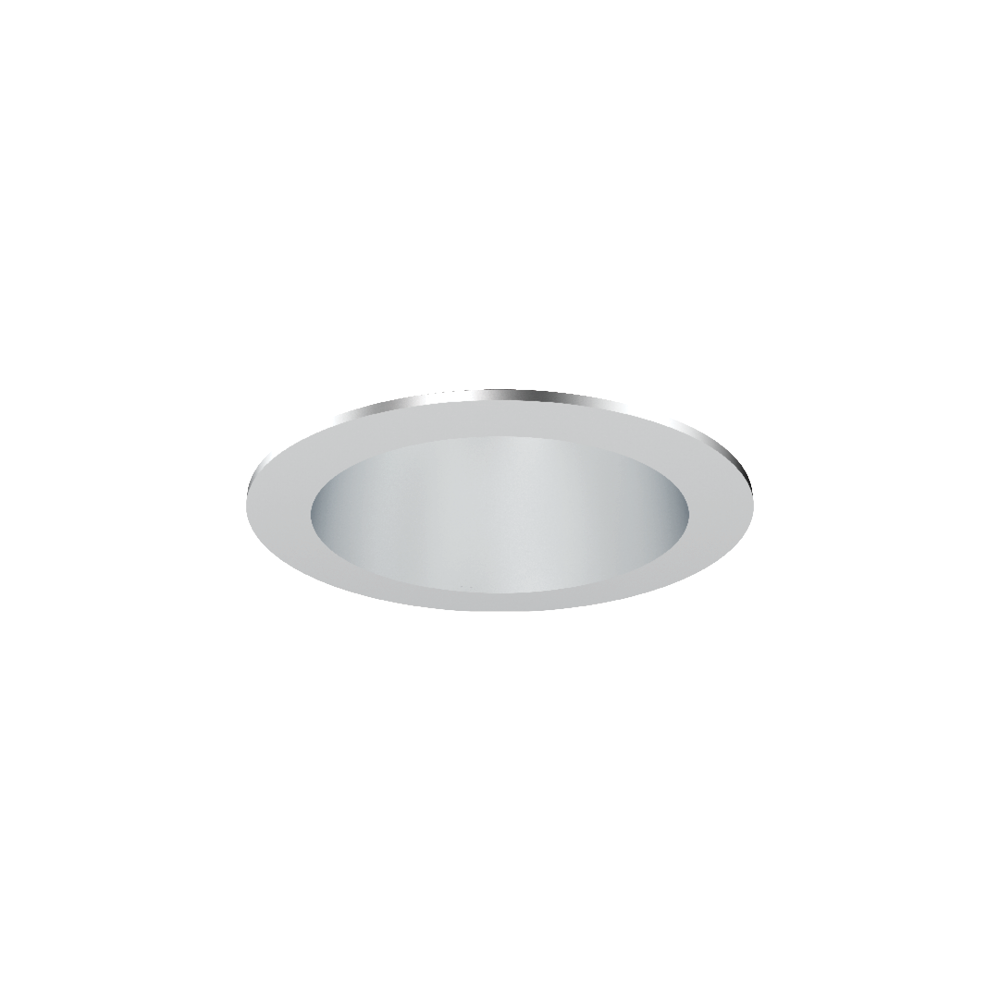

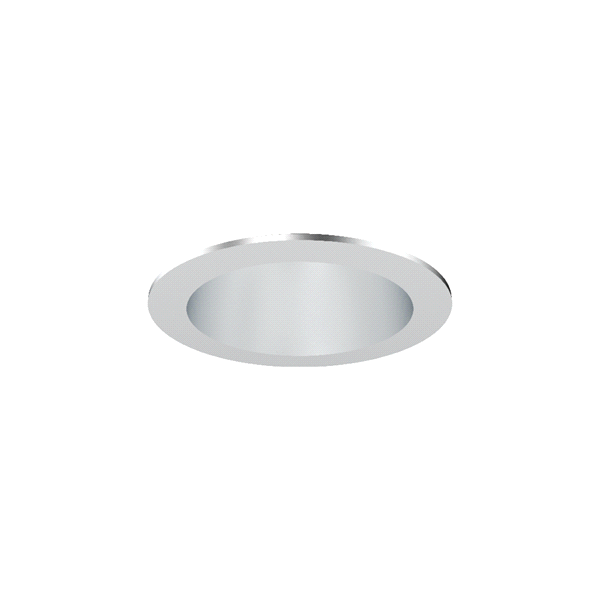

EVO® 2" Round Downlight

General Illumination LED Downlight
    Energy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 2 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 85, 90
Product Type Downlight
Compliance Listing BAA and BABA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing IC, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Digital, Reverse Phase
Fixture Wattage 12, 12.7, 19.8, 21.2, 28.6, 3.1, 3.4, 31.7, 5.6, 6.3, 8.7, 9.7
Voltage Rating 120, 120-277, 277

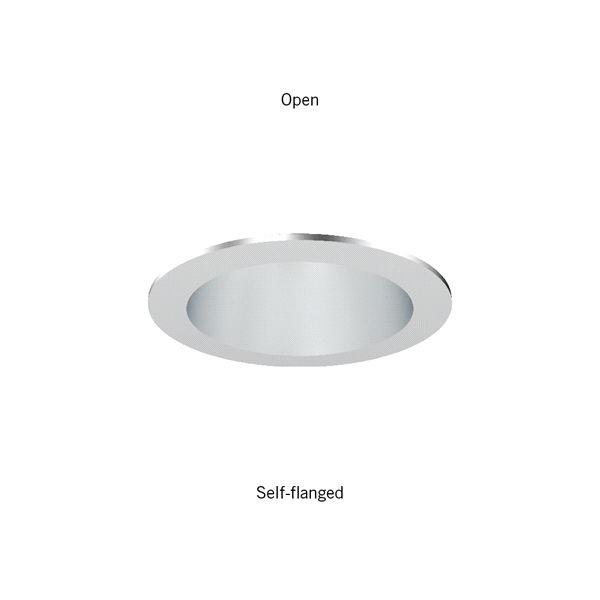

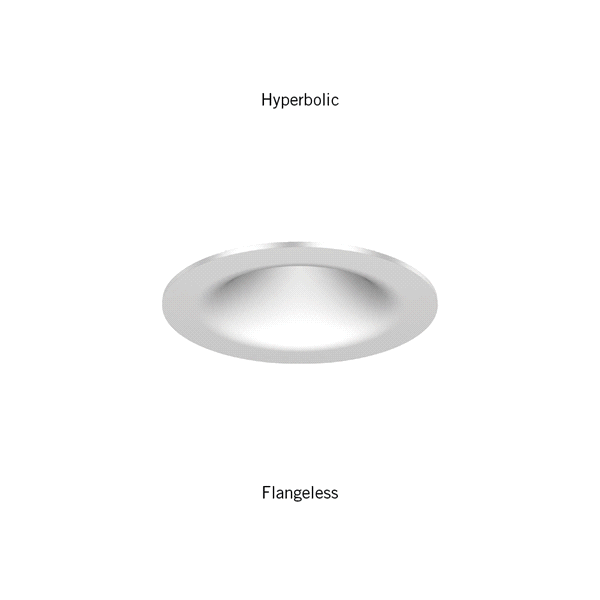

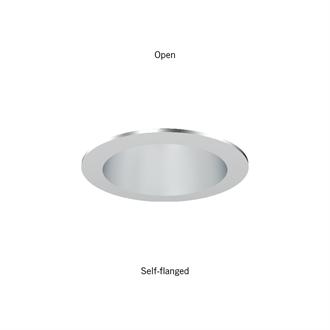

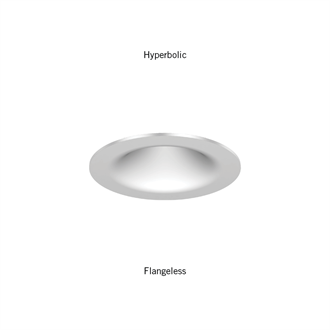

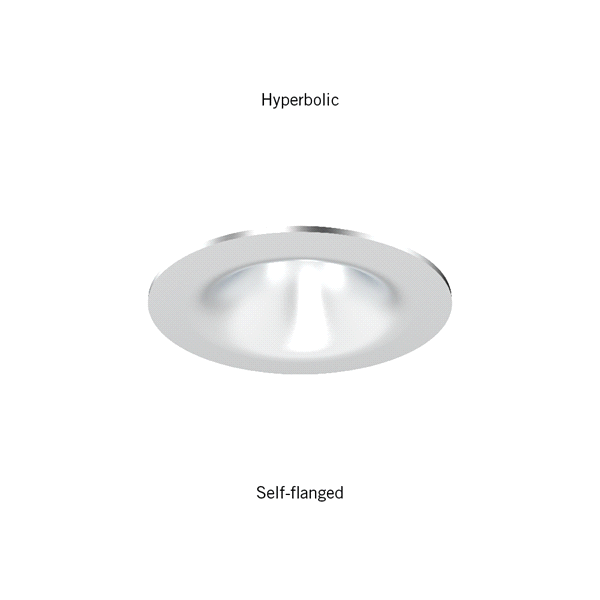

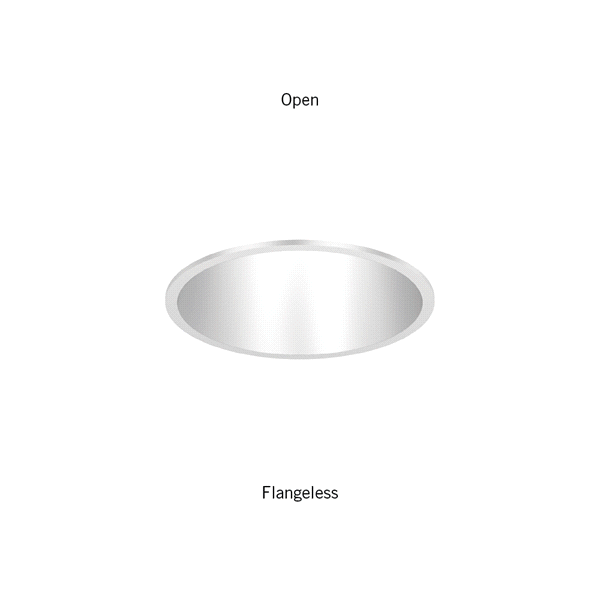

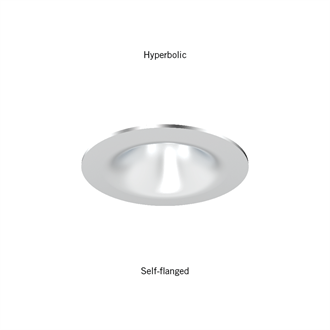

Trim Style Cone, Hyperbolic, Open

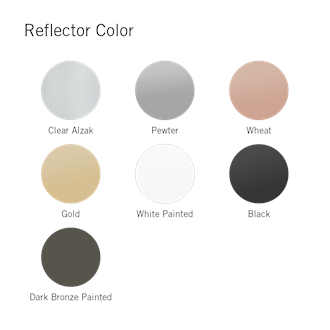

Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Downlight
Product Series EVO
Series EVO2, EVO2HYP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet EVO2.pdf EVO 2" Open Downlight 5/30/2024 View
    Spec Sheet EVO2HYP.pdf EVO 2" Hyperbolic Downlight 4/26/2023 View

    Design Select
    Take Me There
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 8/9/2022 View
    Installation Instructions CJ52308-NOM.pdf EVO/ICO 2" Housing - English/Spanish 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Installation Instructions CJ52308.pdf EVO/ICO 2" Housing 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Mud Ring-Flangeless Installation Instructions CJ52316.pdf EVO/ICO 2" Flangeless Mud Ring 2/26/2020 View
    Installation Instructions EVO2 & ICO2 NCH,CP,ICAT Installation Instructions CJ52315.pdf EVO/ICO 2" Structural Reinforcement Pan, Chicago Plenum, and IC/Airtight Housings 3/26/2020 View
    Installation Instructions EVO2 & ICO2 Trim Installation Instructions CJ52310.pdf EVO/ICO 2" Trim 2/26/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet RK Template_Gotham_EVO2 DLT.pdf EVO2 Round and Square Replacement Kits 5/2/2023 View
    Replacement Part Spec Sheet RK Template_Gotham_EVO2 HYP DLT.pdf EVO2HYP Round & Square Replacement Part Kits 6/4/2024 View
