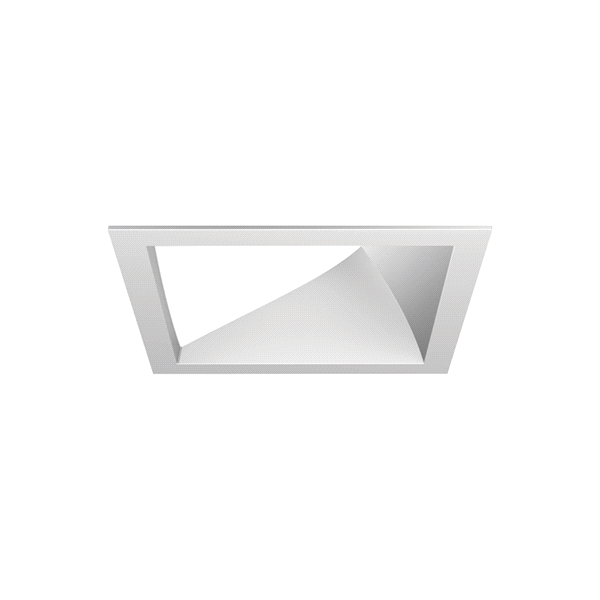

EVO® 4" Square Wall Wash

General Illumination LED Wall Wash

By Gotham Lighting

    WarmDimTunable WhiteColor ChangingBuy America(n)
  • Overview
  • Specifications
OPTICS

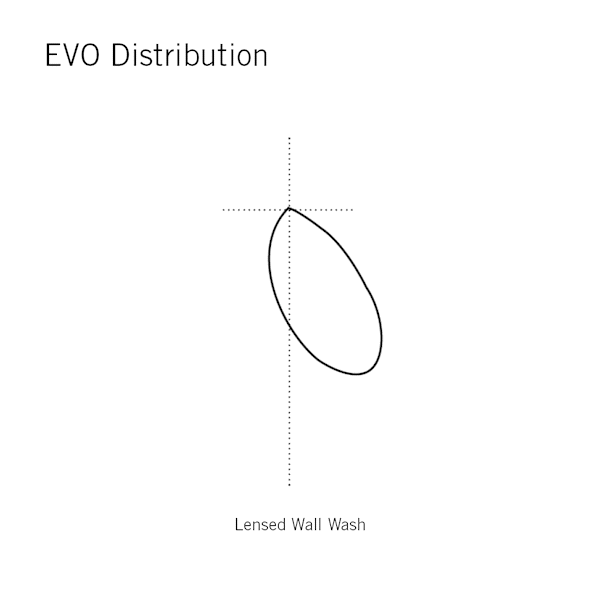

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Lensed wall wash

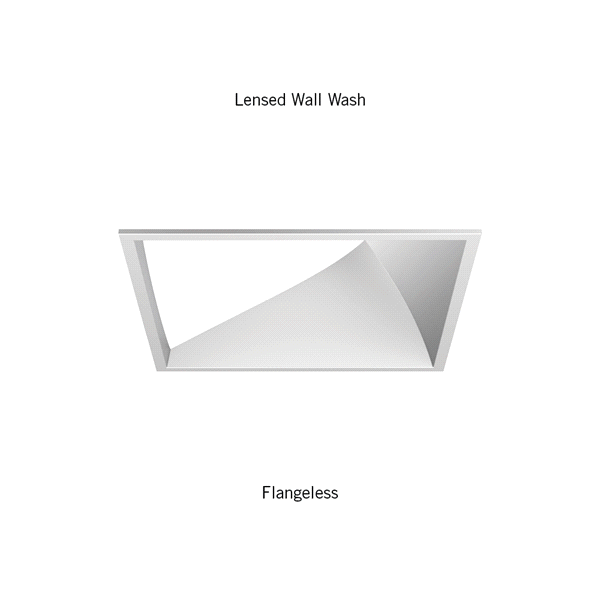

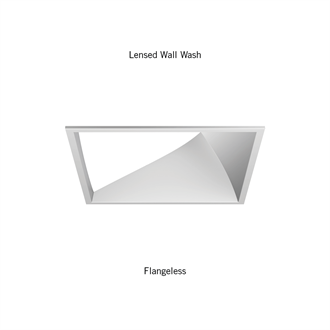

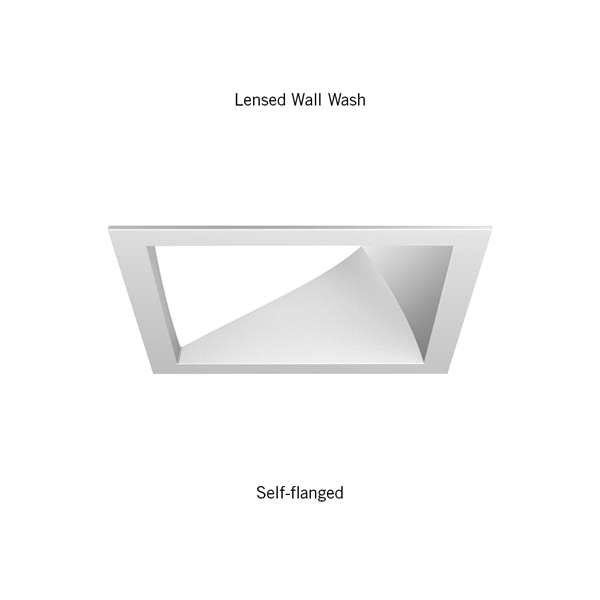

  • Trim options: Self-flanged, flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-3,000 LM
  • Listings: CSA, Wet Location
  • Mainstream Dynamic Lighting: nTune, WarmDim, Architainment (RGBW)
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular and matte diffuse
  • Optics: Easy field-interchangeable optics
  • Trims: Interchangeable open trim

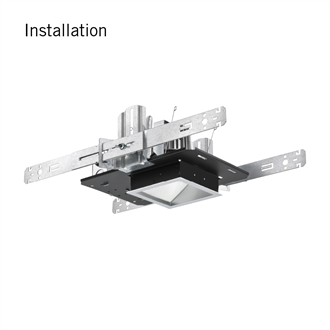

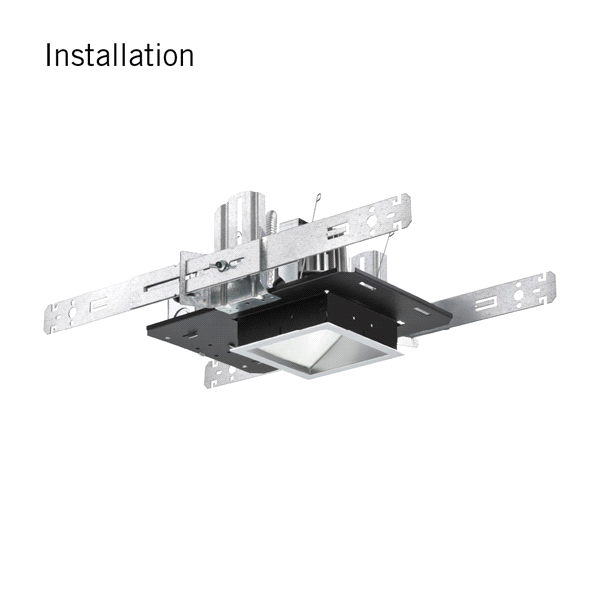

  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 4 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Dynamic Feature Architainment Color, Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1200 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, RGBW, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA
Environmental Listing Non-IC, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277, 347
Trim Style Lensed, Single Wallwash
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Wall Wash
Product Series EVO
Series EVO, EVO4SQLW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO4SQLW.pdf EVO 4" Lensed Wall Wash 5/11/2022 View
    SPEC SHEET EVO4SQLW-NTUNE.pdf EVO 4" Lensed Wall Wash with nTune Tunable White & Warm Dimming 4/26/2021 View
    SPEC SHEET EVO-SQLW-4-ARTC.pdf EVO 4" Lensed Wall Wash with Architainment RGBW Color 5/6/2021 View
    SPEC SHEET EVO-SQLW-4-TUWH.pdf EVO 4" Lensed Wall Wash with Tunable White 5/6/2021 View
    SPEC SHEET EVO-SQLW-4-WDIM.pdf EVO 4" Lensed Wall Wash with Warm Dimming 5/6/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions EVO_SQ_SQLW_FRAME_INSTALL_CJ5201108_pdf.pdf EVO 4"/6" Housing 4/24/2019 View
    Installation Instructions EVO_SQ_TRIM_INSTALL_CJ520182.pdf EVO 4"/6" Square Open and Lensed Wall Wash Trims View
    User Manual DMX with RDM Manual.pdf DMX with RDM Manual 9/14/2021 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO Square Lensed Wall Wash Sell Sheet EVO Square Lensed Wall Wash Sell Sheet 9/30/2019 View
    Sell Sheet Mainstream Dynamic EVO Square Lensed Wall Wash Mainstream Dynamic EVO Square Lensed Wall Wash Sell Sheet View
