Incito™ 2" Round Wall Mount Cylinder

High Center Beam LED Downlight, Wall Wash, & Adjustable Cylinder
    Low UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 2 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 90
Product Type Cylinder
Compliance Listing Low UGR
Environmental Listing Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Reverse Phase
Fixture Wattage 12, 19.8, 28.6, 3.1, 5.6, 8.7
Voltage Rating 120, 120-277, 277

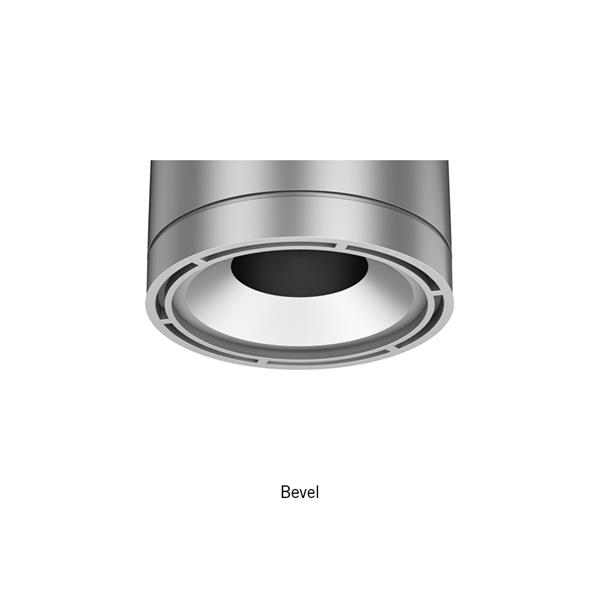

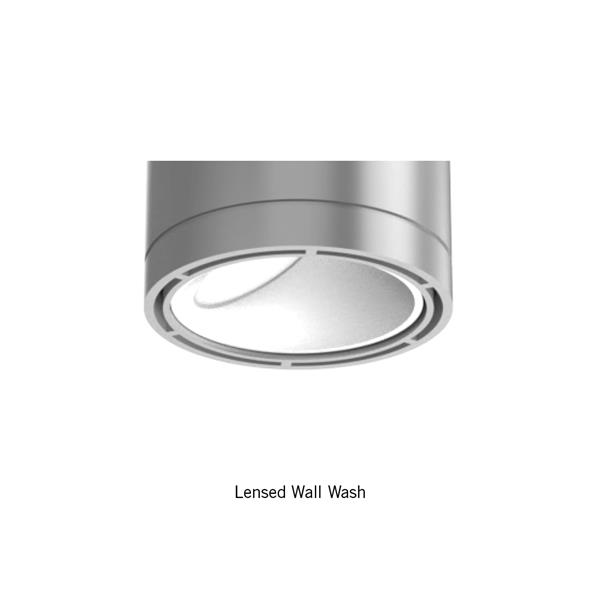

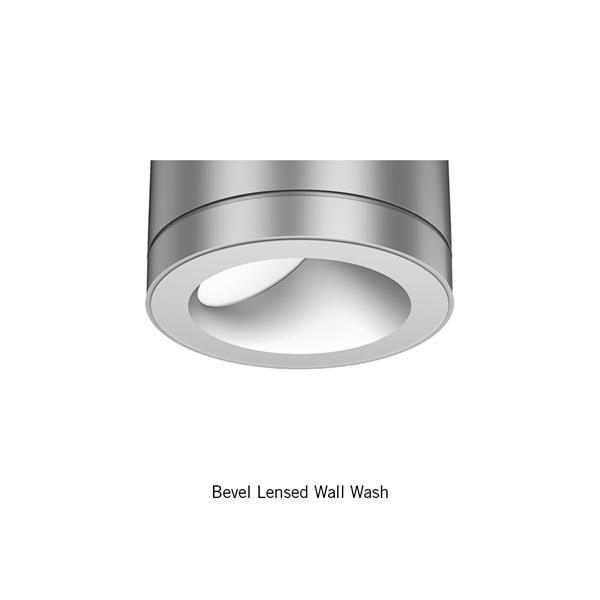

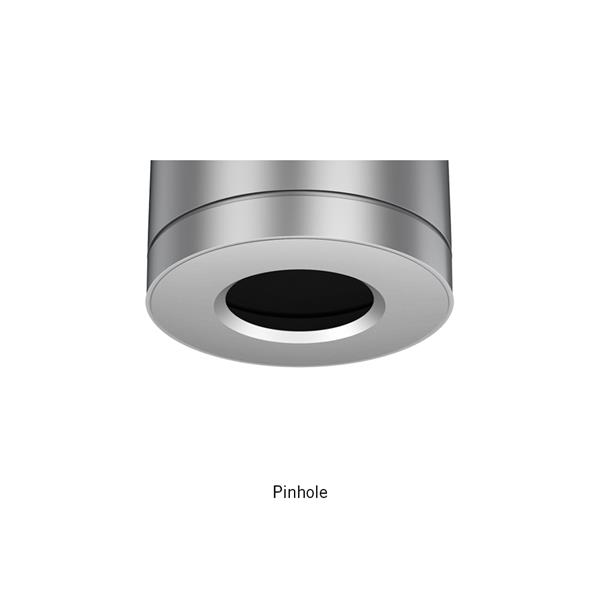

Trim Style Bevel, Cone, Lensed, Open, Pinhole, Single Wallwash
Color Beige, Black, Blue, Bronze, Clear, Gold, Gray, Green, Pewter, Red, Silver, Wheat, White

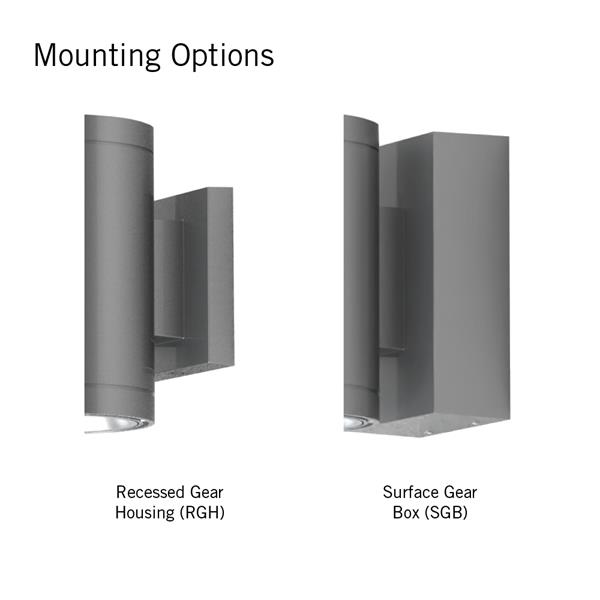

Mounting Type Surface
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail

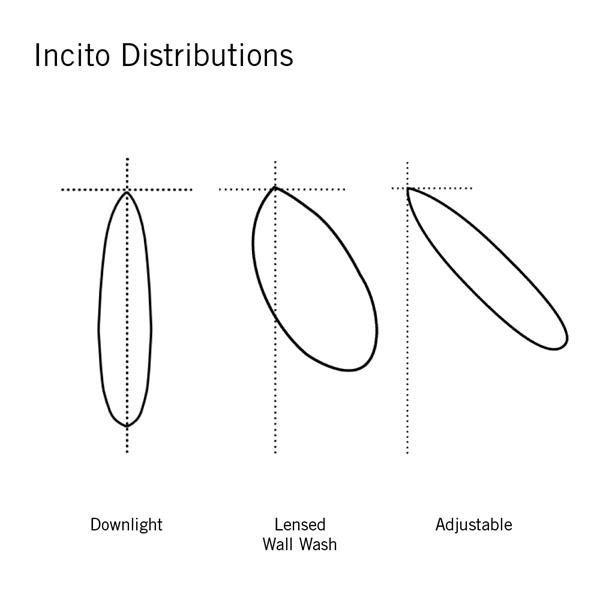

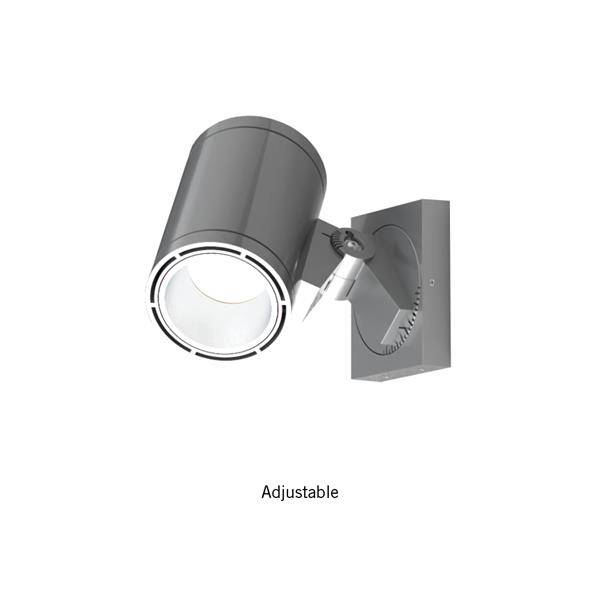

Function Adjustable, Downlight, Wall Wash
Product Series Incito
Series ICO2WC, ICO2WTRC, ICO2WCLW, ICO2WCBEV, ICO1WCPIN, ICO2WCBEVLW, ICO1WTRCPIN, ICO2WTRCBEV

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ICO1WCPIN.pdf ICO 2" Pinhole Wall Mount Cylinder 10/18/2024 View
    Spec Sheet ICO1WTRCPIN.pdf ICO 2" Pinhole Adjustable Wall Mount Cylinder 10/18/2024 View
    Spec Sheet ICO2WC.pdf ICO 2" Open Wall Mount Cylinder 10/1/2024 View
    Spec Sheet ICO2WCBEV.pdf ICO 2" Bevel Wall Mount Cylinder 9/20/2022 View
    Spec Sheet ICO2WCBEVLW.pdf ICO 2" Bevel Lensed Wall Wash Wall Mount Cylinder 9/20/2022 View
    Spec Sheet ICO2WCLW.pdf ICO 2" Lensed Wall Wash Wall Mount Cylinder 9/20/2022 View
    Spec Sheet ICO2WTRC.pdf ICO 2" Open Adjustable Wall Mount Cylinder 10/1/2024 View
    Spec Sheet ICO2WTRCBEV.pdf Incito 2" LED Tround Tilt and Rotate Wall Mount Bevel Cylinder 1/13/2021 View

    Design Select
    Take Me There
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 8/9/2022 View
    Installation Instructions CJ52317 Rev A.pdf EVO/ICO 2" Adjustable Wall Mount Cylinder - English/French 8/9/2022 View
    Installation Instructions EVO2 & ICO2 SGBCC Installation Instructions 912-00223-001.pdf EVO/ICO 2" Cylinder with Surface Gear Box and Conduit - English/French 8/8/2022 View
    Installation Instructions EVO2 & ICO2 SGBCC Installation Instructions 912-00223-001_NOM.pdf EVO/ICO 2" Cylinder with Surface Gear Box and Conduit - English/Spanish 8/8/2022 View
    Installation Instructions EVO2 & ICO2 Wall Mount Cyl Installation Instructions CJ52311.pdf EVO/ICO 2" Wall Mount Cylinder - English/French 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Wall Mount Cyl Installation Instructions CJ52311-NOM.pdf EVO/ICO 2" Wall Mount Cylinder -English/Spanish 8/9/2022 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Gotham Cylinder Brochure_0421 EVO & Incito Cylinder Portfolio Brochure 9/25/2023 View
    Brochures Incito-2-inch-brochure.pdf Incito 2" Downlight and Cylinder Brochure 1/4/2017 View
    Sell Sheet 2in Tilt and Rotate Cylinder_Sell Sheet.pdf EVO/Incito 2in Tilt and Rotate Cylinder Sell Sheet 1/11/2021 View
