Incito™ 4" Round Surface Mount Cylinder

High Center Beam LED Downlight & Wall Wash Cylinder

By Gotham Lighting

    Energy Star®Buy America(n)
  • Overview
  • Specifications
OPTICS
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
  • Cutoff: 45°

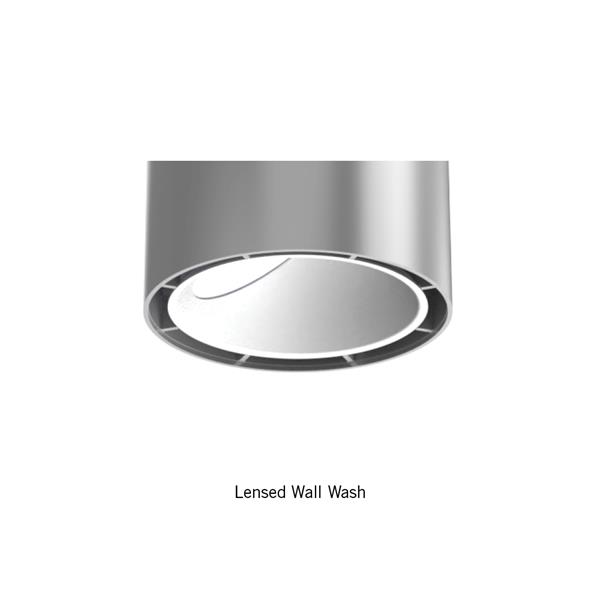

  • Functions Lensed wall wash solution

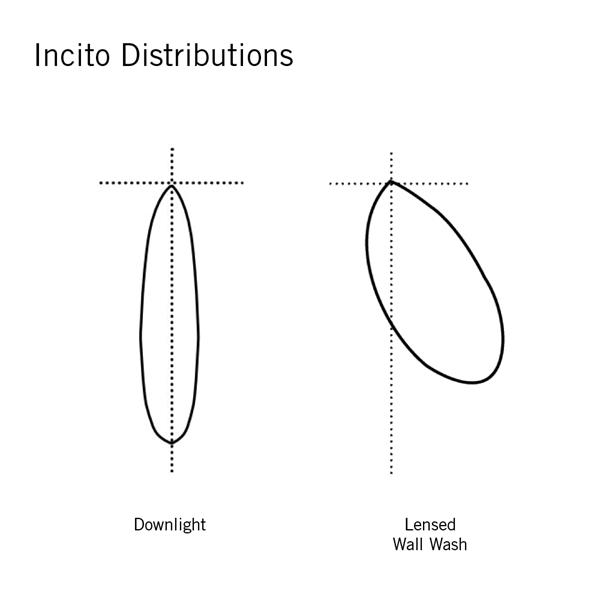

  • Beam angles: Ranging from 10° to 65°
  • Trim options: Cone
PERFORMANCE
Our high-performing cylinders provide the quality of light and consistency needed to efficiently create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 500-5,000 LM
  • Listings: Energy Star, CSA, Damp Location, Wet Location
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify cylinders, we offer an ample array of mounting types, trims, sizes, and colors allowing for a complete custom design.
  • Colors: 20 standard colors and full breath of RAL custom colors

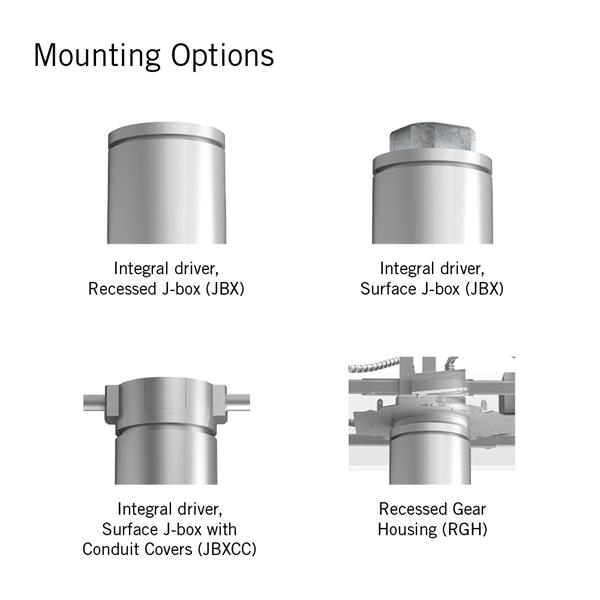

  • Mounting: Conduit covers with five conduit entries that can be interchanged in the field for extra flexibility
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Cylinder
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Fixture Wattage 14.3, 18.8, 24.3, 31.9, 33.6, 40.2, 47.1, 54, 6.52, 7.34, 9.48
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Lensed, Open, Single Wallwash
Color Almond, Black, Blue, Bronze, Clear, Gold, Gray, Green, Ivory, Pewter, Red, Silver, Wheat, White
Mounting Type Surface
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Downlight, Wall Wash
Product Series Incito
Series ICO4SC, ICO4SCLW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ICO4SC.pdf Incito 4" LED Round Cylinder with Surface Ceiling mount 5/6/2021 View
    SPEC SHEET ICO4SCLW.pdf ICO 4" Lensed Wall Wash Surface Mount Cylinder 5/6/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00164-001 RGH Instruction.pdf EVO 4"/6", ICO 4" Cylinder with Recessed Gear Housing (RGH) 8/9/2022 View
    Installation Instructions CJ53521 EVO_ICO 4-6IN CYL CEILING_JBX_JBXCC_INSTAL.pdf EVO 4"/6", ICO 4" Surface Mount Cylinder with Integral driver and Recess or Surface J-box 8/10/2022 View
    Installation Instructions CJ53523 EVO_ICO 4-6IN CYL DMX521_RDM.pdf EVO 4"/6", ICO 4" Cylinder with DMX/RDM 1/18/2021 View
    Installation Instructions CJ97038 EVO_ICO 4-6IN SC_LW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6", ICO 4" Lensed Wall Wash Surface Mount Cylinder Fixture Aiming 3/31/2020 View
