EVO® 6" Round Pendant Mount Cylinder

General Illumination LED Downlight & Wall Wash Cylinder

By Gotham Lighting

    WarmDimTunable WhiteEnergy Star®Buy America(n)
  • Overview
  • Specifications
OPTICS

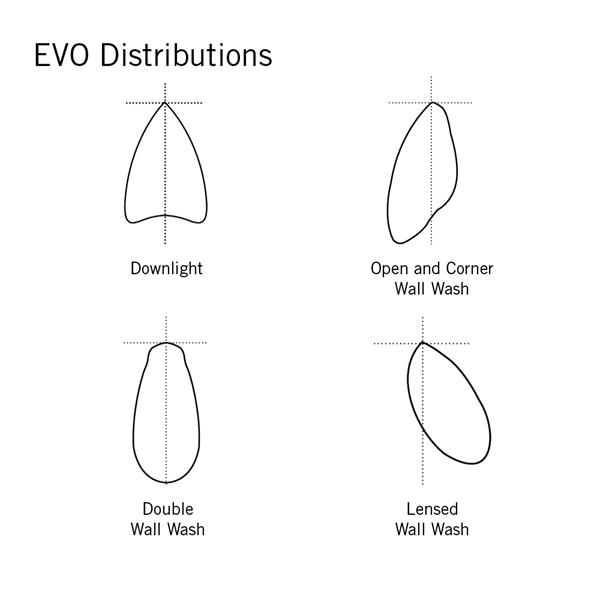

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°

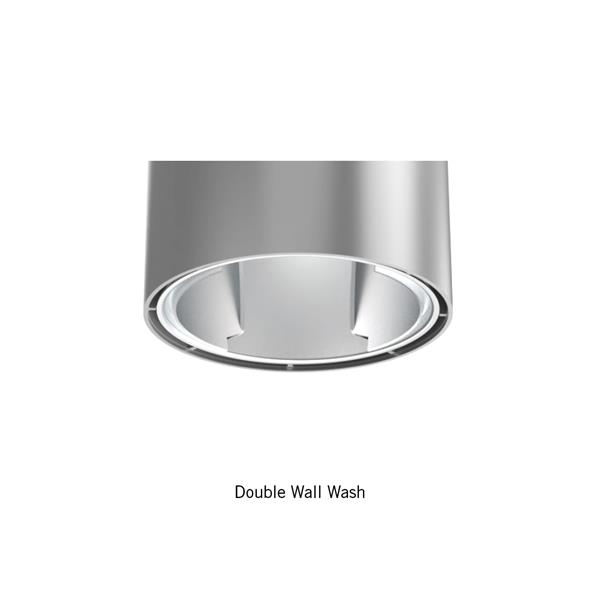

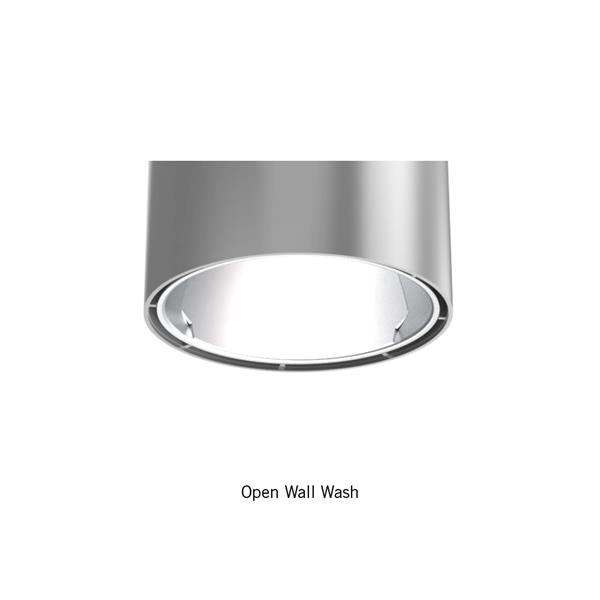

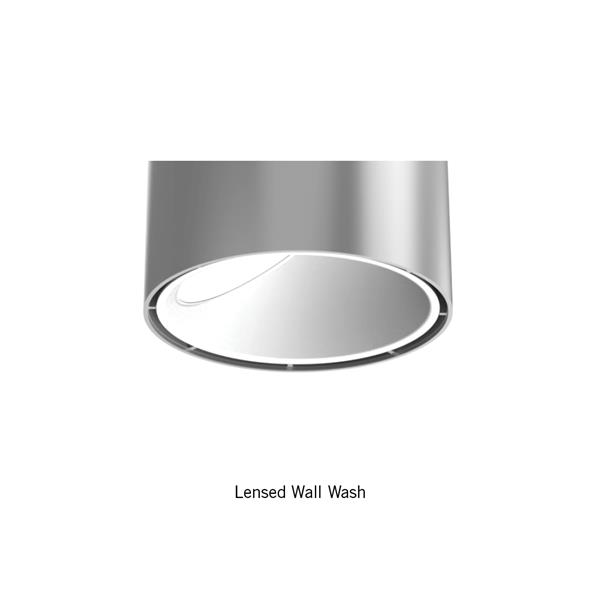

  • Functions: Downlight, open wall wash, corner wall wash, double wall wash, and lensed wall wash solutions
  • Beam angles: Very narrow, narrow, medium, medium wide, wide
  • Trim options: Cone
PERFORMANCE
Our high-performing cylinders provide the quality of light and consistency needed to efficiently create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-8,000 LM
  • Listings: Energy Star, CSA, Damp Location, Wet Location
  • Mainstream Dynamic Lighting: nTune and WarmDim
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify cylinders, we offer an ample array of mounting types, trims, sizes, and colors allowing for a complete custom design.
  • Colors: 20 standard colors and full breath of RAL custom colors

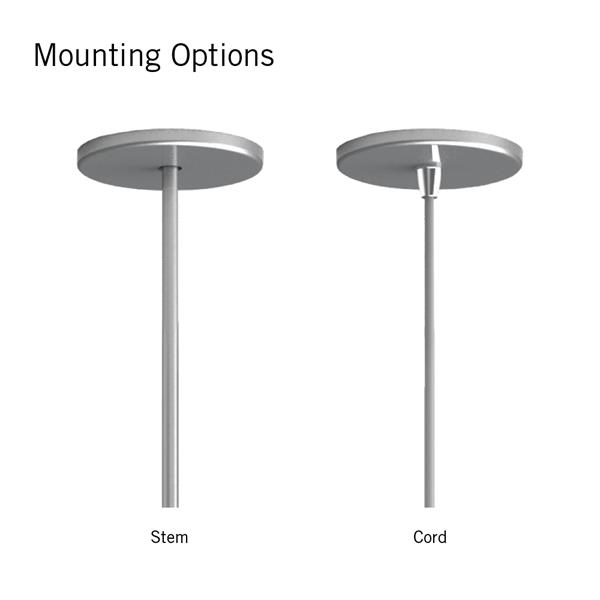

  • Mounting: Stem suspension is suitable for indoor or outdoor applications and easy to modify with conduit entries at a diameter of 5/8 inch
  • Mounting: Cord suspension provides a tight and straight suspension, with a cord significantly smaller than most, and designed with no aircraft cable
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 6000 LM, 8000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80
Product Type Cylinder
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing Wet Location
Regulatory Listing CSA, UL
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Fixture Wattage 47.7, 48.8, 5.1, 50, 54, 59, 78, 8.66, 11.8, 12.4, 14.7, 15.7, 17.1, 20.6, 20.8, 22, 25.2, 26.3, 27.6, 3.25, 30.5, 31.2, 33.1, 40.9, 41.7, 45.3, 47.1, 35.5, 36.5, 40.5, 9.86, 10.1, 10.7
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Corner Wallwash, Double Wallwash, Lensed, Open, Single Wallwash
Color Almond, Black, Blue, Bronze, Clear, Gold, Gray, Green, Ivory, Pewter, Red, Silver, Wheat, White
Mounting Type Pendant
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Special Applications
Function Downlight, Wall Wash
Product Series EVO
Series EVO6PC, EVO6CC, EVO6PCWW, EVO6PCCWW, EVO6PCDWW, EVO6PCLW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO6CC NTUNE.pdf EVO 6" Open Cord Mount Cylinder with nTune Tunable White & Warm Dimming 4/29/2021 View
    SPEC SHEET EVO6CC.pdf EVO 6" Open Cord Mount Cylinder 4/29/2021 View
    SPEC SHEET EVO6PC NTUNE.pdf EVO 6" Open Stem Mount Cylinder with nTune Tunable White & Warm Dimming 4/29/2021 View
    SPEC SHEET EVO6PC.pdf EVO 6" Open Stem Mount Cylinder 4/20/2022 View
    SPEC SHEET EVO6PCLW.pdf EVO 6" Lensed Wall Wash Stem Mount Cylinder 4/20/2022 View
    SPEC SHEET EVO6PCLW-NTUNE.pdf EVO 6" Lensed Wall Wash Stem Mount Cylinder with nTune Tunable White & Warm Dimming 4/29/2021 View
    SPEC SHEET EVO6PCWW.pdf EVO 6" Open, Corner & Double Wall Wash Stem Mount Cyliner 4/20/2022 View
    SPEC SHEET EVO6PCWW-NTUNE.pdf EVO 6" Open, Corner & Double Wall Wash Stem Mount Cylinder with nTune Tunable White & Warm Dimming 4/29/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View

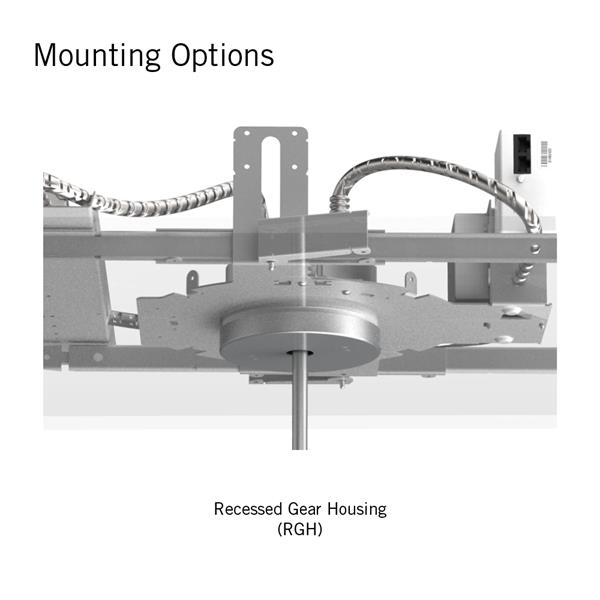

    Installation Instructions 912-00164-001 RGH Instruction.pdf EVO 4"/6", ICO 4" Cylinder with Recessed Gear Housing (RGH) 8/9/2022 View

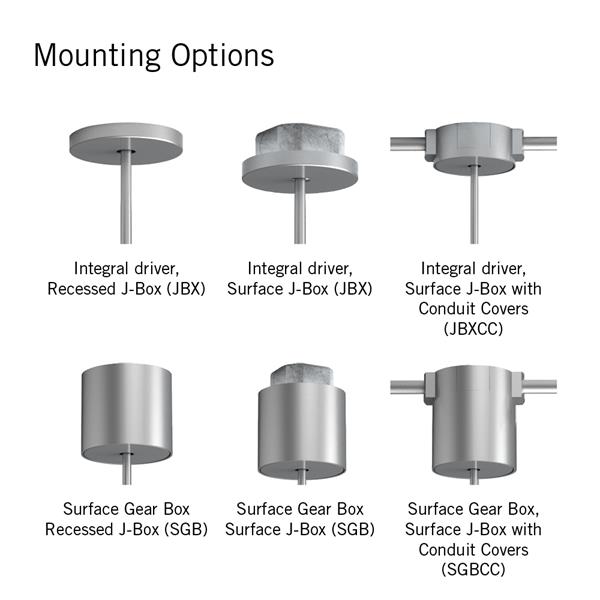

    Installation Instructions CJ53520 EVO_ICO 4-6IN CYL STEM_JBX_JBXCC_INSTALL.pdf EVO 4"/6", ICO 4" Stem Mount Cylinder with Integral drivers and Recessed or Surface J-box 8/10/2022 View
    Installation Instructions CJ53523 EVO_ICO 4-6IN CYL DMX521_RDM.pdf EVO 4"/6", ICO 4" Cylinder with DMX/RDM 1/18/2021 View
    Installation Instructions CJ53531 EVO_ICO 4-6IN CYL CORD_JBX_JBXCC_INSTALL.pdf EVO 4"/6", ICO 4" Cord Mount Cylinder with Integral Driver and Recessed or Surface J-Box 8/10/2022 View
    Installation Instructions CJ53532 EVO4-6IN_ICO4 CYL STEM_SGB_SGBCC_INSTALL.pdf EVO 4"/6", ICO 4" Stem Mount Cylinder with Surface Gear Box and Recessed or Surface J-box 8/10/2022 View
    Installation Instructions CJ53533 EVO_ICO 4-6IN CYL CORD_SGB_SBGCC_INSTALL.pdf EVO 4"/6", ICO 4" Cord Mount Cylinder with Surface Gear Box and Recessed or Surface J-box 8/10/2022 View
    Installation Instructions CJ97039 EVO_ICO 4-6IN_WW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6" Open WallWash Cylinder Fixture Aiming 3/31/2020 View
    Installation Instructions CJ97040 EVO_ICO 4-6IN PC_LW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6", ICO 4" Lensed Wall Wash Stem Mount Cylinder Fixture Aiming 3/31/2020 View
