HLDMPC Cylinder

Holophane® Industrial Pendant with Cord Mount Cylinder with Care222® Technology

By Holophane

    UV Spectrum
  • Overview
  • Specifications
HLDM™ reduces active pathogens* on non-porous surfaces using Ushio Care222® far-UVC disinfection** technology. HLDM features a mercury-free far-UVC excimer lamp that contains a patented short pass filter for narrow band 222nm emission. This removes wavelengths that penetrate the living tissue in skin or beyond the tear layer in eyes***.

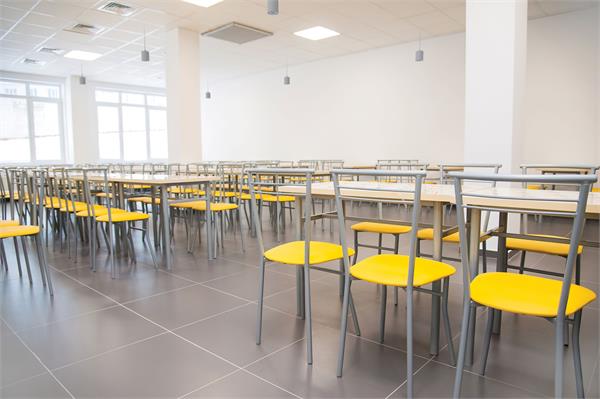

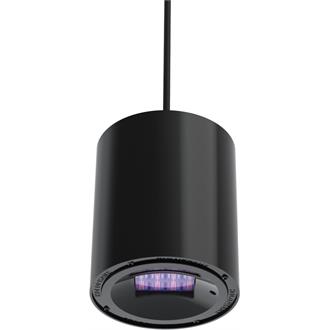

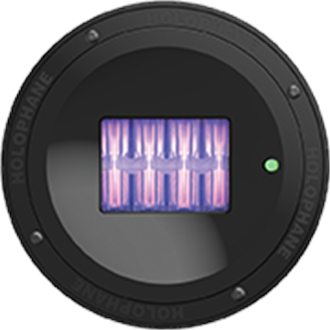

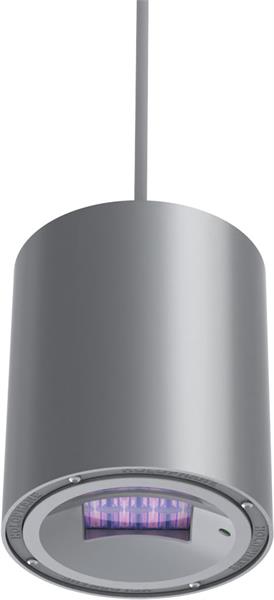

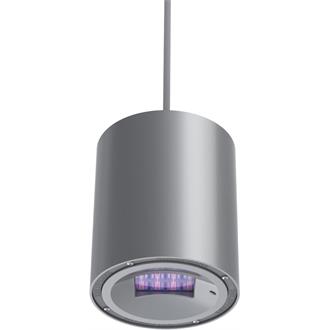

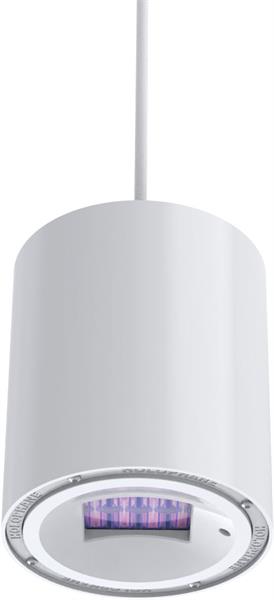

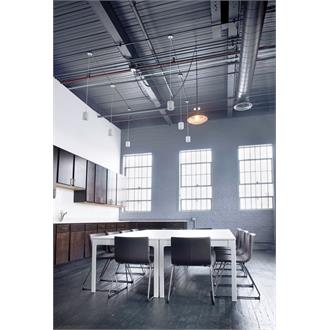

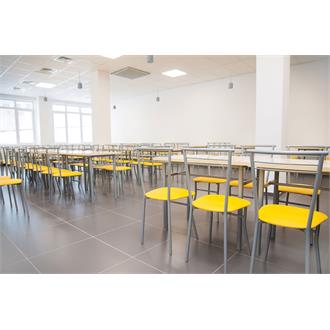

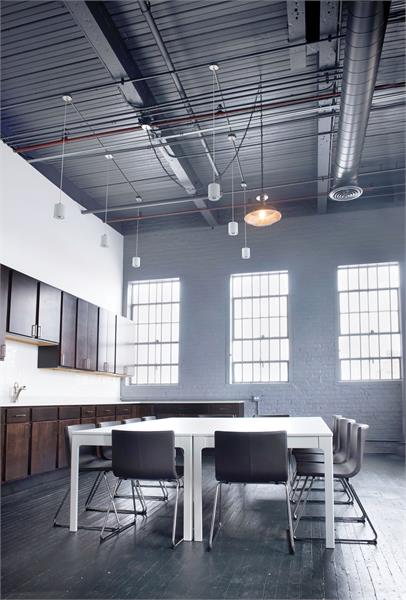

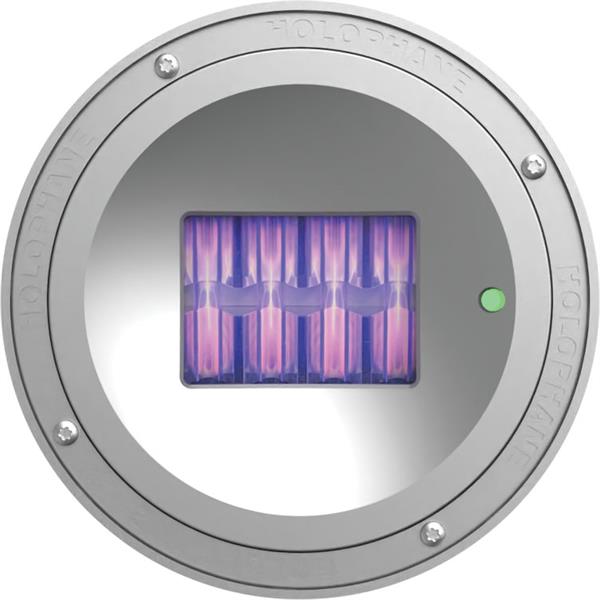

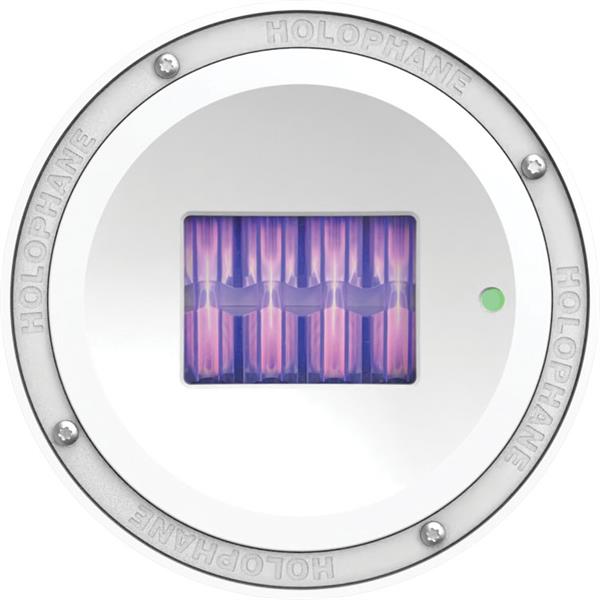

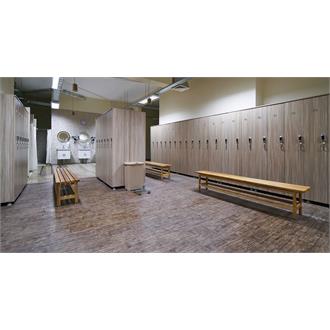

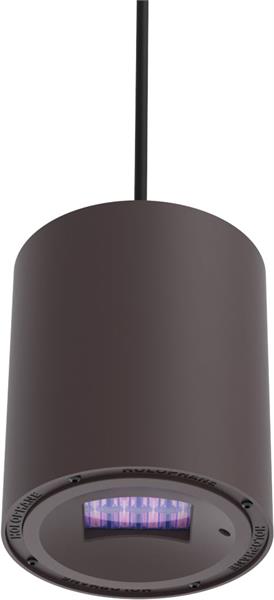

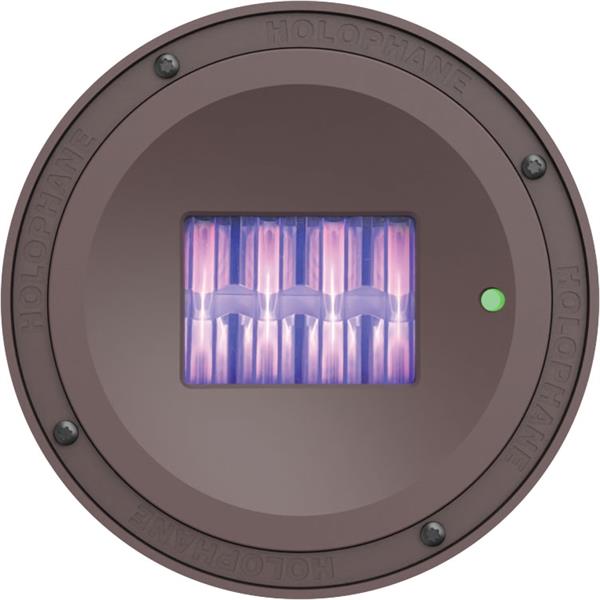

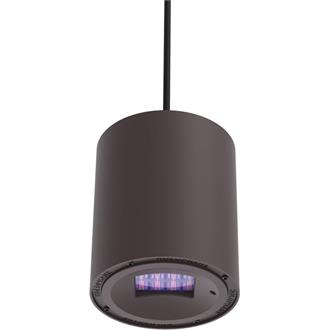

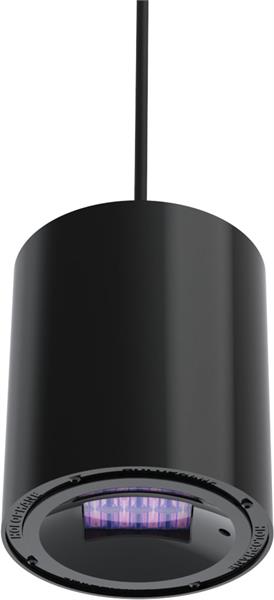

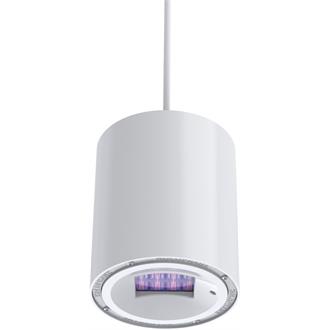

HLDM pendant with cord mount cylinder is available in black, bronze, silver and white finishes. Discreet form factor seamlessly integrates into spaces and is ideal for locker rooms, break rooms, cafeterias and other continual-use areas. UV source emits a soft violet glow from a 1.75" x 2.25" opening when powered. LED status indicator visible from room. UV module serviceable from below.

* Refer to product specification sheets at acuitybrands.com/UV-Products for efficacy claims and claim substantiation regarding specific products and pathogens
**All references to “disinfection” are referring generally to the reduction of pathogenic bioburden and are not intended to refer to any specific definition of the term as may be used for other purposes by the U.S. Food and Drug Administration or the U.S. Environmental Protection Agency. Reduction of the pathogenic bioburden is a function of fixture run time and the distance to the UV light source, airflow, room size, shadow areas and/or other factors, and the level of reduction will vary within a specific space. This fixture is not intended for use in the cure, mitigation or prevention of disease and is not certified or approved for use as a medical device by the FDA. It is the obligation of the end-user to consult with a qualified Professional Engineer and a Certified Industrial Hygienist, if applicable, to determine whether this fixture meets the applicable requirements for system performance, code compliance, safety (including safety and hazard alerting signs), suitability and effectiveness for use in a particular application design.
*** According to the International Ultraviolet Association
Read More
Read Less
Light Source UV
UV Spectrum 222nm
Environmental Listing Damp Location
Regulatory Listing UL
Product Type Cylinder
Voltage Rating 120-277
Mounting Type Pendant
Mounting Location Ceiling
Primary Material Aluminum
Architectural Style Contemporary
Series HLDMPC

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Holophane-Care222-HLDMPC-Cylinder-Pendant with Cord.pdf HLDMPC FAR-UV Filtered 222nm Disinfection Technology Pendant with Cord 4/13/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions HLDMPC Installation Instructions 912-00264-002 rev G.pdf HLDMPC Installation Instructions 9/22/2022 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions HLDM cylinders UVC Module repair kit installation instructions 912-00264-004 rev F.pdf HLDM cylinders UVC Module repair kit installation instructions 9/22/2022 View
    Replacement Part Spec Sheet HLDM Series repair kit installation instruction 912-00264-004.pdf HLDM Series repair kit installation instruction sheet 7/14/2021 View
    Replacement Part Spec Sheet hldmpc-replacement-parts_module_swivel_adapter_canopies.pdf HLDMPC replacement parts 7/9/2021 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Care222® Technology One Sheet Care222® Technology One Sheet 9/21/2021 View
    Brochures HLDM™ Care222® Brochure HLDM™ Care222® Brochure 7/1/2021 View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 9/26/2022 View
