Product Image
BLT with Care222 Technology in Office
Hospital Hallway.jpg

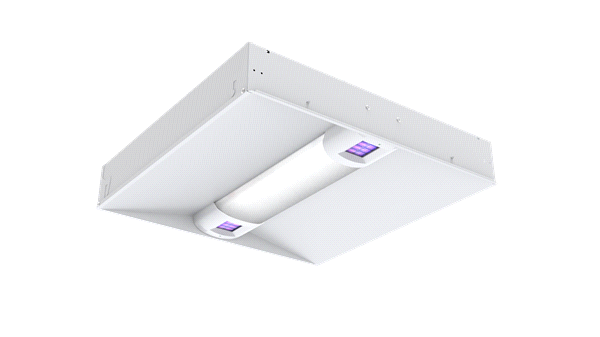

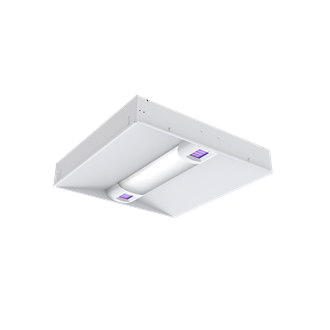

BLT with Care222(R) Technology

Recessed lay-in available with UV technology

By Lithonia Lighting

    UV Spectrum
  • Overview
  • Specifications
The BLT with Care222® technology combines Lithonia Lighting's low-profile LED recessed lay-in with UV light disinfection* technology. Now, this luminaire does so much more than lighting! There are 2x2 and 2x4 size options, both available with single or dual modules of Care222. This technology utilizes 222nm wavelengths to inactivate viruses and bacteria** by disrupting the DNA/RNA which prevents reproduction. It inactivates pathogens on the surface or in the air and when used within safety guidelines, can be used in occupied spaces. Plus, it has endless configuration options including wired and wireless controls through the nLight® platform.

For more information on the BLT with Care222 Technology, click here.



This product would be perfect for schools, commercial offices, retail shops, or any indoor high-trafficked area where people are present.

*All references to “disinfection” are referring generally to bioburden reduction and are not intended to refer to any specific definition of the term as may be used for other purposes by the U.S. Food and Drug Administration or the U.S. Environmental Protection Agency. Bioburden reduction is a function of fixture run time and the distance to the UV light source, airflow, room size, shadow areas and/or other factors, and the level of reduction will vary within a specific space. This fixture is [these fixtures are] not intended for use in the cure, mitigation or prevention of disease and is [are] not certified or approved for use as [a] medical device[s] by the FDA. It is the obligation of the end-user to consult with appropriately qualified Professional Engineer(s), a Certified Infection Control professional and a Certified Industrial Hygienist, as applicable, to determine whether this fixture meets [these fixtures meet] the applicable requirements for system performance, code compliance, safety (including safety and hazard alerting signs), suitability and effectiveness for use in a particular application design.

Read More
Read Less
Size 2x2, 2x4
Shape Rectangular, Square
Light Source LED - Static, UV
Dynamic Feature Not Applicable
Lumens 3000 LM, 4000 LM, 4600 LM, 4800 LM, 6000 LM, 7200 LM, 8500 LM, 10,000 LM, 12,000 LM
Product Type Troffer
Environmental Listing Damp Location, IC
Regulatory Listing CSA, UL
Dimming Protocol 0-10V
Voltage Rating 120-277, 347
Color White
Mounting Type Recessed
Series 2BLT2, 2BLT4, RK22BLT4

Read More Read Less
