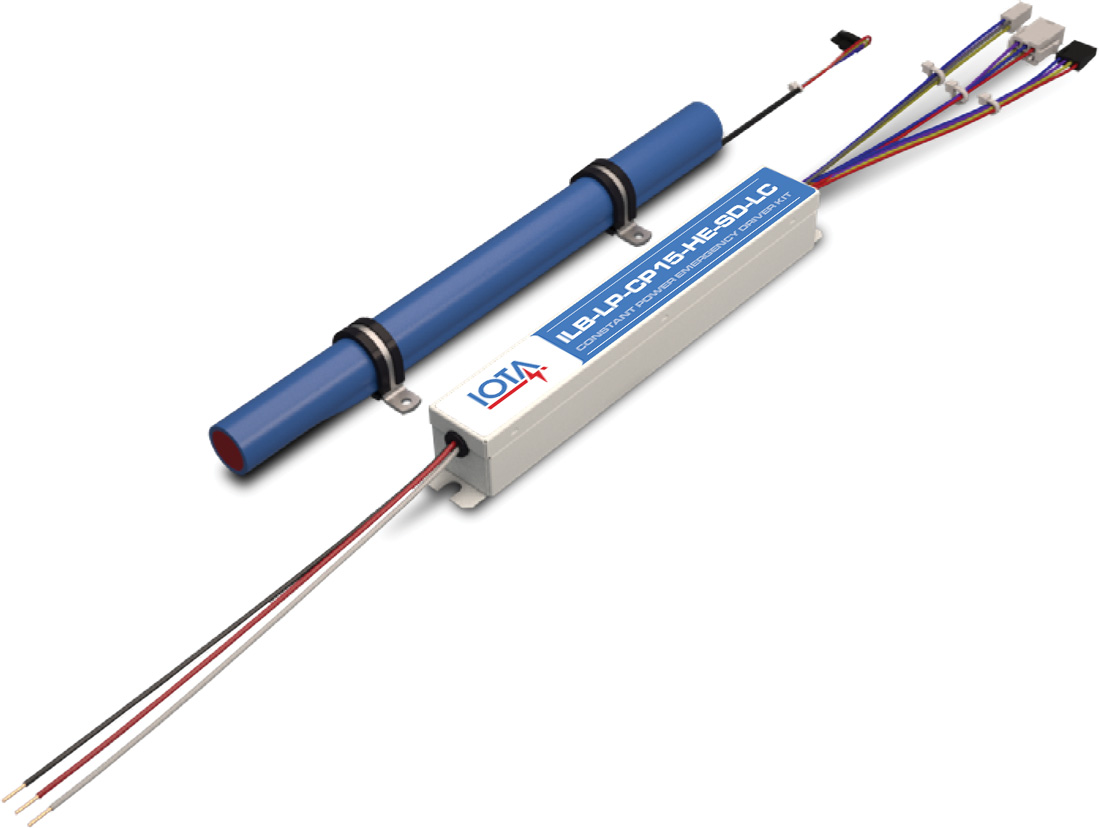

ILBLP CP15 HE SD LC Emergency LED Driver

15 Watt Modular Constant Power Emergency LED Driver with External Lithium Battery

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILBLP CP15 HE SD LC from IOTA is a UL Recognized LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP15 HE SD LC switches power from the normal AC Driver and operates the fixture for 90 minutes in the emergency mode from the unit’s battery supply. The unit contains a charger and converter circuit in a narrow profile enclosure with separate battery for installation within the channel space or wireway. The ILBLP CP15 HE SD LC will operate an LED load at 15 watts with constant power at a rated output voltage of 20V-55V. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.
LED Operation
  • 15 watts Constant Power
  • 20-55 VDC Nominal Output
Product Advantages
  • Constant Power Performance
    Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Versatile Component Design
    Minimal enclosure and separate lithium battery design provides installation flexibility within fixture compartment spaces.
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
Features
  • Auto-Sense 20-55VDC output is UL 1310 Certified, Output Class 2 Compliant
  • Circuitry enclosed in white painted steel case
  • Long life high temperature recyclable Lithium Iron-Phosphate battery
  • AC-Activate circuity simplifies wiring by eliminating the need for manual battery connection during installation
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • 5-Year Warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified to CA Title 20 and registered in the Modernized Appliance Efficiency Database (MAEDBS)
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 20-55 VDC
Output Power 15 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing UR
Compliance Listing CA Title 20, ROHS
Series ILBLP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ILBLP CP15 HE SD LC Specifications Specification Sheet for the ILBLP CP15 HE SD LC 4/19/2022 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILBLP CP15 LC - Battery (with clamps) 3D STEP file of the ILBLP CP15 HE SD LC external battery (with mounting clamps) 3/15/2021
    3D Model ILBLP CP15 LC - Unit 3D STEP file of the ILBLP CP15 HE SD LC unit housing 3/15/2021
    Installation Instructions Installation Manual - ILBLP "LC" models Installation and Operation Manual for ILBLP "LC" emergency drivers with external battery 5/9/2022 View
    Material Safety Data Sheet MSDS - 16V-9.6V Lithium-ion Material Safety Data Sheet for 16V and 9.6V Lithium-ion batteries 1/7/2022 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins LP Designs with Advanced Lithium Technology How engineering diligence and careful handling helps improve reliability of IOTA ILBLP drivers 6/25/2020 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 View
    Sell Sheet IOTA-Contractor-Insider_AC-Activate-Explained.pdf How IOTA AC Activate Saves Time and Money on the Jobsite 11/5/2021 View
