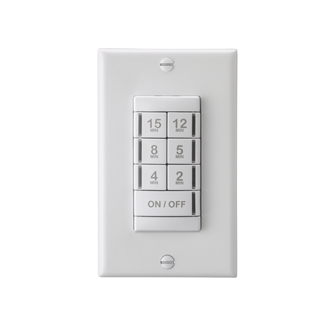

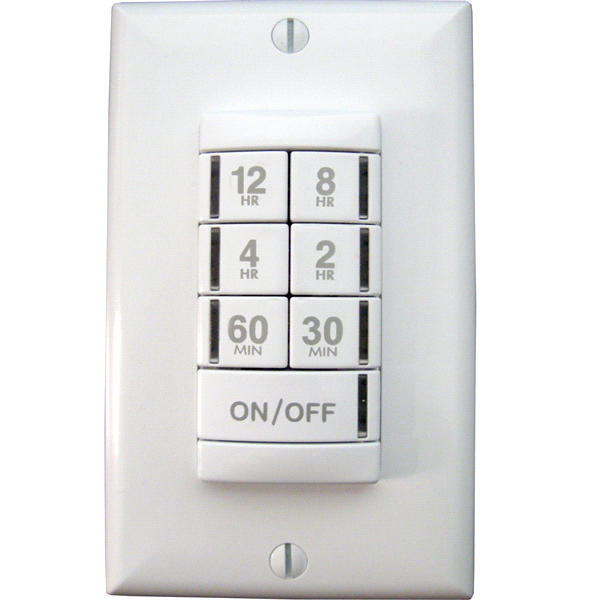

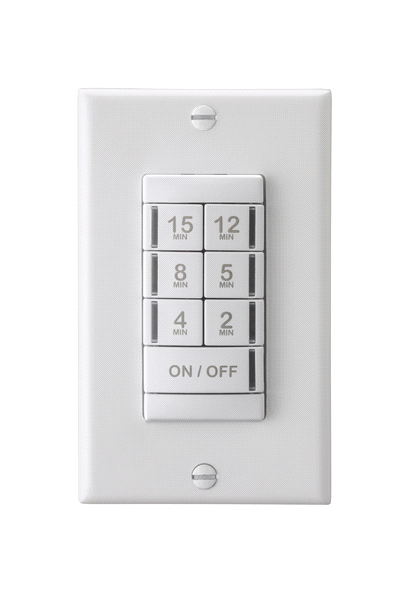

PTS Series

Interval Timer Switch

By SensorSwitch

  • Overview
  • Specifications
The PTS Series Electronic Auto Shut-off Timer Switches provide a simple to use and simple to apply lighting control alternative to wall switch occupancy sensors. These elegant decorator style wall stations each provide six preset countdown timer selections as well as an on/off push-button. The PTS units are powered from 120/277 VAC (optional 347 VAC) and are intended to switch a line voltage lighting load or small motor load (see specifications). Additionally, the PTS devices can be applied without requiring a neutral wiring connection, making them ideal for retrofit applications.

Self-Contained Relay
Interchangeable Hot & Load Wires
No Neutral Required
Self-Grounding Mounting Strap
No Minimum Load Requirements
Push-Button Programmable w/o Removing the Switch Plate
Fixed or Adjustable Preset Times
Optional Flicker Timeout Warning
Optional Audible Timeout Warning at 2 min & 1 min
Continuous LED Flash for Last 30 sec of Button's Time Setting
Green On/Off Switch Status LED
Green LED Time Indicators
Read More
Read Less
Control Device Type On/Off Switch
Mounting Type Surface
Product Type Switch
Color Black, Gray, Ivory, Light Almond
Finish Gloss
Voltage Rating 120, 277
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series PTS
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PTS_Series.pdf Electronic Auto Off Timer Switch 6/2/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Wiring Diagram Wall Switch Wiring Diagrams.pdf Wall Mount Wiring Diagrams View
