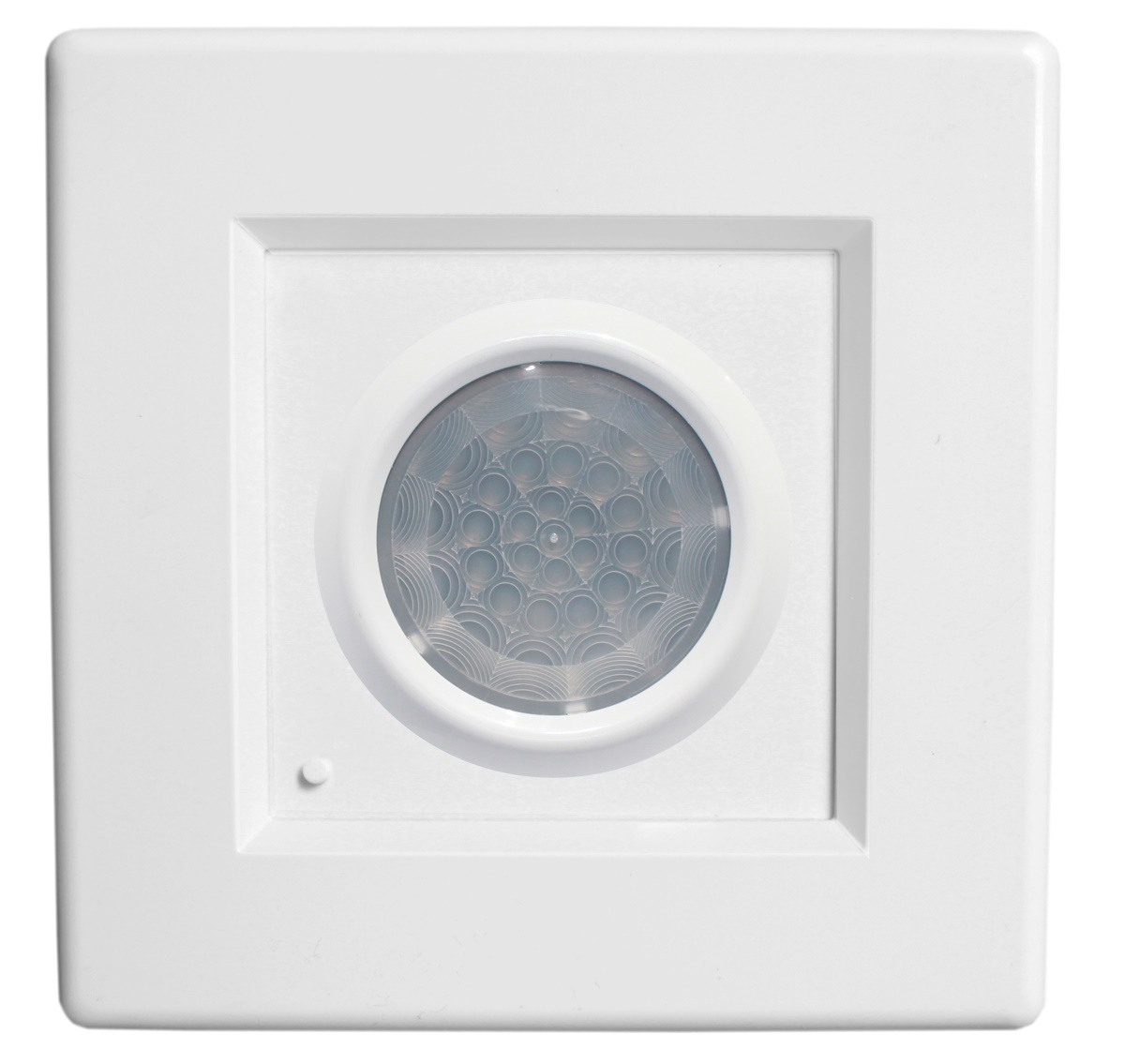

RMR 6 480

High Bay 360~176;, Recessed, Line Volt, PIR, 480 VAC

By SensorSwitch

  • Overview
  • Specifications
High bay lighting control is made simple with the RMR 6 480 Series occupancy sensor. This unique sensor is line powered and enables direct switching of 480 VAC lighting loads. Designed to recess mount into linear high bay fluorescent fixtures using standard 4" x 4" junction box spacing, this sensor's 360~176; coverage pattern overlaps that of most T5, or T8 fixtures used in warehouse applications.

The RMR 6 480 provides 5 wires for installation. Two pairs of hot and load wires dual switch the 480 VAC line feeds to a ballast, thus meeting the NEC requirements for simultaneously disconnecting all ungrounded conductors. High humidity or cold damp environments are accommodated by adding the LT option.
PIR Occupancy Detection
Up to 45 ft Mounting
360~194;~186; Coverage
Two Self-Contained Relays - No Power Packs needed
No Minimum Load Requirements
Push-Button Programmable
Time Delay: 30 sec to 20 min
Green LED Indicator
100 Hr. Lamp Burn-in Timer Mode
Read More
Read Less
Control Device Type Daylight Sensor, Dimming Switch
Mounting Type Recessed
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Voltage Rating 208, 347, 480
Environmental Listing High Humidity
Series RMR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less
