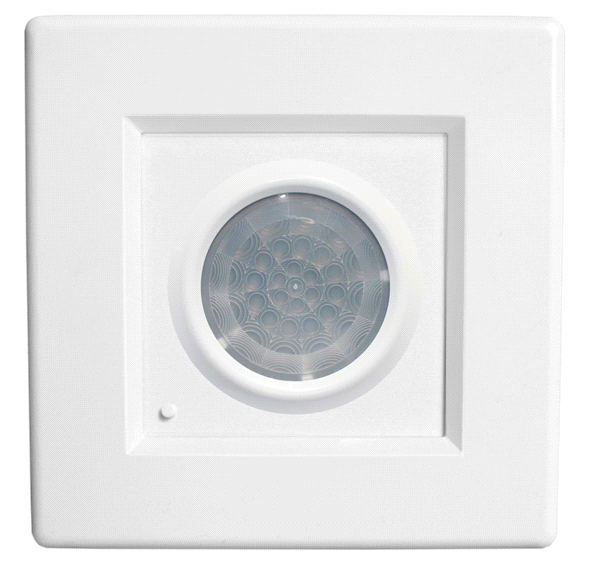

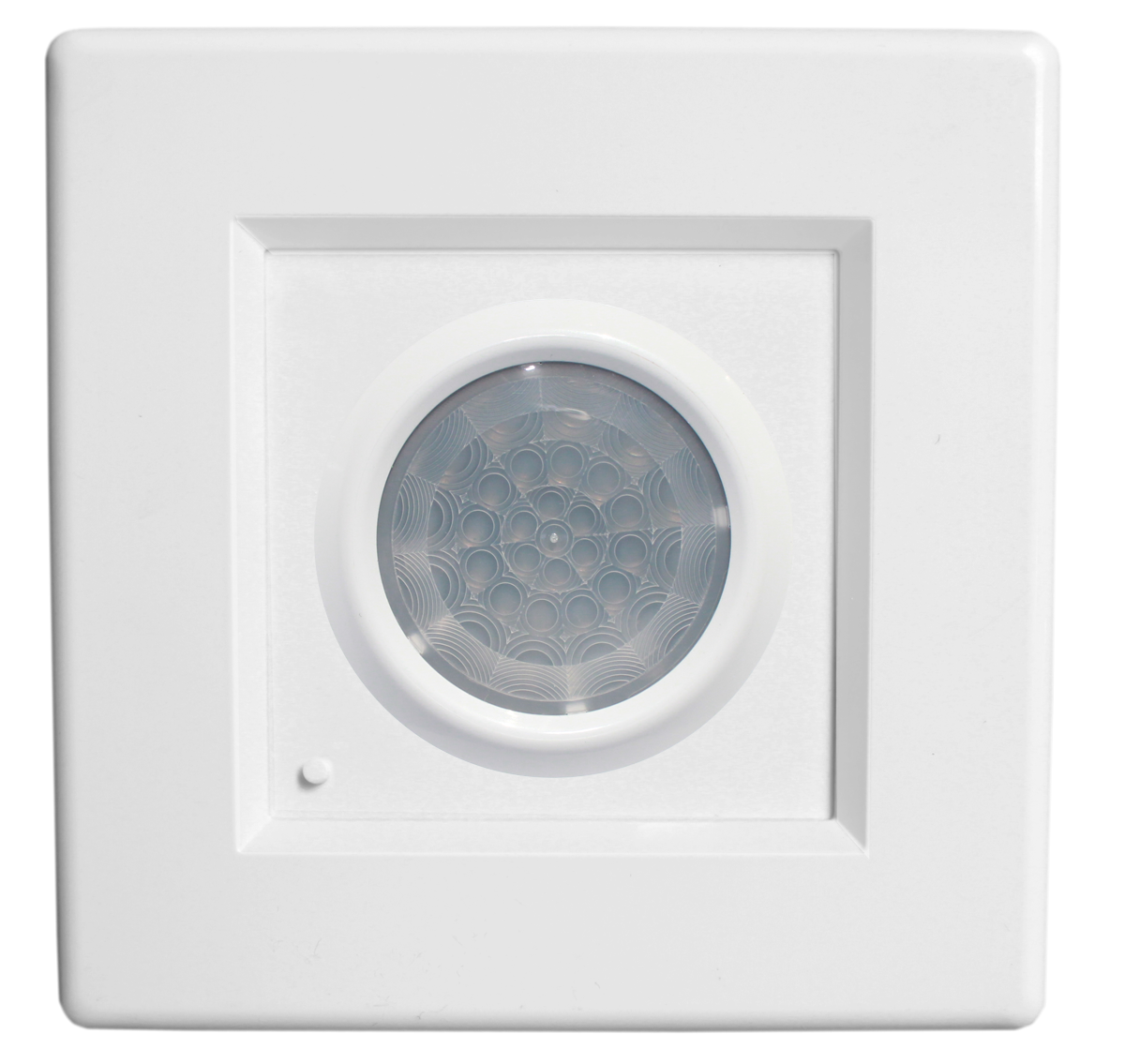

RMR 50 208

High Bay Aisleway, Recessed, Line Volt, 208 VAC

By SensorSwitch

  • Overview
  • Specifications
High bay lighting control is made simple withthe RMR 50 208 Series occupancy sensor. This unique sensor is line powered and enables direct switching of 208/240 VAC lighting loads. Designed to recess mount into a linear high bay fluorescent fixture using standard 4~191; x 4~191; junction box spacing, this sensor~191;s view pattern covers the area lit by three typically spaced T-5 or T-8 fixturesused in a warehouse aisleway. Therefore, when mounted at a fixture, the coverage area extends out to the area that is lighted by the neighboring fixtures. This creates an effect where the lights go on ahead of the occupant.The RMR 50 208 switches both line voltage feeds going to a ballast, thus meeting the NEC requirements for simultaneously disconnecting all ungrounded conductors. High humidity or cold damp environmentsare accommodated by adding the LT option.
100% Digital PIR Detection, Excellent RF ImmunityUp to 45 ft Mounting, Coverage up to 110 Linear ftSelf-Contained Relay - No PowerPack needed, Compatible w/ LEDs, Electronic & Magnetic Ballasts, CFLs, &Incandescents, Push-Button Programmable, User Adjustable Time Delays, No Field Calibration or Sensitivity Adjustments RequiredConvenient Test Mode, 100 Hr Lamp Burn-in Timer, Green LED Indicator
Read More
Read Less
Control Device Type Daylight Sensor, Dimming Switch
Mounting Type Recessed
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Voltage Rating 208, 347, 480
Environmental Listing High Humidity
Series RMR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
