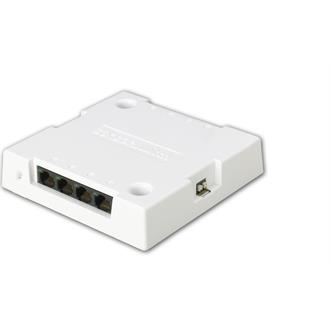

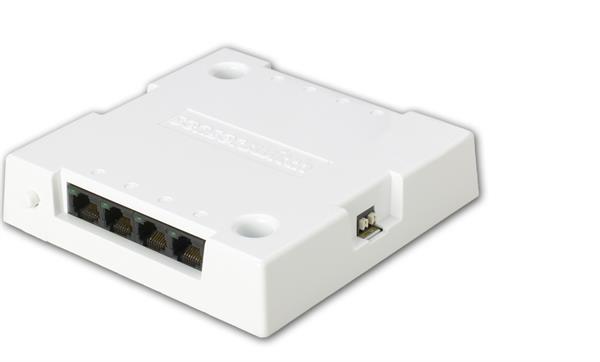

nBRG 8

nLight Bridge - 8 Port

By nLight

    DLC Standard / PremiumBuy America(n)
  • Overview
  • Specifications
The nLight 8-Port Bridge increases the number of lighting control zones in an nLight system. This ability stems from the fact that each Bridge has 8 RJ-45 ports into which zones of daisy-chained nLight-enabled devices can connect. The Bridge also is an integral component of the communication backbone in an nLight network. Fundamentally, Bridges act as hubs by aggregating traffic from the connected downstream zones and placing it onto the backbone. They also act as routers by forwarding information from the backbone out to the applicable downstream zones. The Bridge's actual backbone link is formed by connecting to another Bridge or a Gateway via CAT-5 cabling through one of its RJ 45 ports. Finally, Bridges can combine system power from zones that are net contributors of power (i.e. those with downstream power packs and power supplies) and distribute it to zones that are net consumers of power (i.e. those with only sensors). Maximum power output per port is 40mA.
Communicates w/ nLight Network
Remotely Upgradeable
Push-Button Programmable
Green LED Indicators for each Port
Supports up to 128 Devices per Port
Read More
Read Less
A+ Capable Yes
Control Device Type Interface Device
Mounting Type Surface, Unit to J Box
Networkable Control Networkable Control
Product Type System Controller
Color White
Finish Gloss
Voltage 120, 347
Compliance Listing BAA, DLC Standard, ROHS
Regulatory Listing C-UL-US, UL
Series NBRG
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET nBRG 8 nBRG 8 12/28/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions nBRG8_IG_20201117.pdf nBRG 8 Installation Guide 11/17/2020 View
    Riser Model nbridge.dwg nBRG Riser
    Technical Bulletins nLight BAA Flyer.pdf nLight Buy America(n) Act Flyer 4/6/2022 View
