nPP16 ER
By nLight
- Overview
- Specifications
The nLight nPP16 ER Series relay pack is used to switch luminaires powered via an emergency circuit. Ideal for use along side a standard nPP16 relay pack that controls a zone's normal powered lighting, the nPP16 ER is designed to switch up to 16 Amps of lighting load.

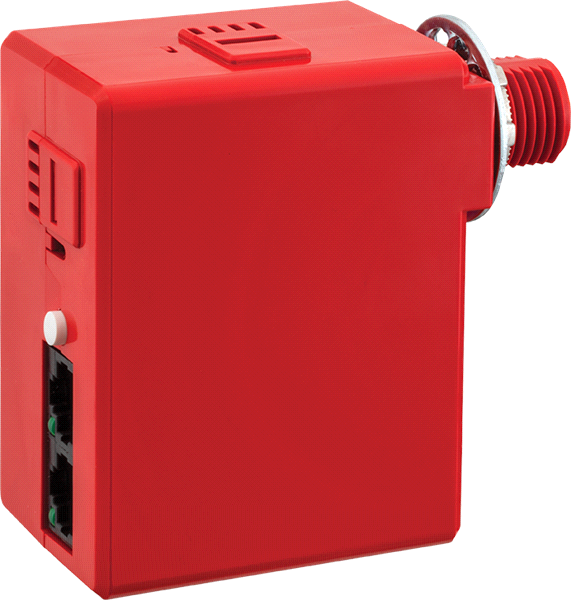

The nPP16 ER's two RJ-45 connectors make control wiring with standard CAT-5 cabling easy and clean. An elongated chase nipple facilitates attachment directly to a junction box or fixture through a 1/2 inch~157; knockout. A push button and LEDs are also provided which allow users the ability to manually alter settings or test emergency operation.
Automatically Overrides Emergency Lights On Upon Normal Power Loss
Communicates w/ nLight Network
Remotely Configurable/Upgradeable
Self-Contained Relay Switches Emergency Lighting Load
Measures & Reports Current through Relay
Test/Programming Button
Green LED Indicator
Extended Chase Nipple
A+ Capable | Yes |
Control Device Type | Dimming Switch |
Mounting Type | Unit to J Box |
Networkable Control | Networkable Control |
Control Protocol | 0-10V |
Product Type | Power Pack |
Color | Red |
Finish | Gloss |
Voltage | 120, 347 |
Compliance Listing | BAA, CA Title 24, DLC Standard |
Regulatory Listing | C-UL-US, UL |
Series | NPP16 |
Application Type | Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET NPP16 ER EFP.pdf nLight nPP16 ER Emergency Power/Relay Pack Spec Sheet 5/8/2023 View
Need to Create a Submittal Spec Sheet? Take Me There
-
Photometry & Revit (BIM)
-
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Installation Instructions IN-10.3 - 09-06-17.pdf nLight Power Pack Programming Instructions 6/7/2023 View Installation Instructions IS-NPP16ER-EFP-004.pdf nLight nPP16 ER Installation Instruction Sheets 2/14/2023 View Installation Instructions IS-NPP16IM-ER-EFP.pdf nLight nPP16 IM ER Installation Instruction Sheets 11/9/2018 View Technical Bulletins nLight BAA Flyer.pdf nLight Buy America(n) Act Flyer 4/6/2022 View -
