nES 7 Family

Micro 360~176;, Embedded, Low Volt, PIR

By nLight

    DLC Standard
  • Overview
  • Specifications
OVERVIEW

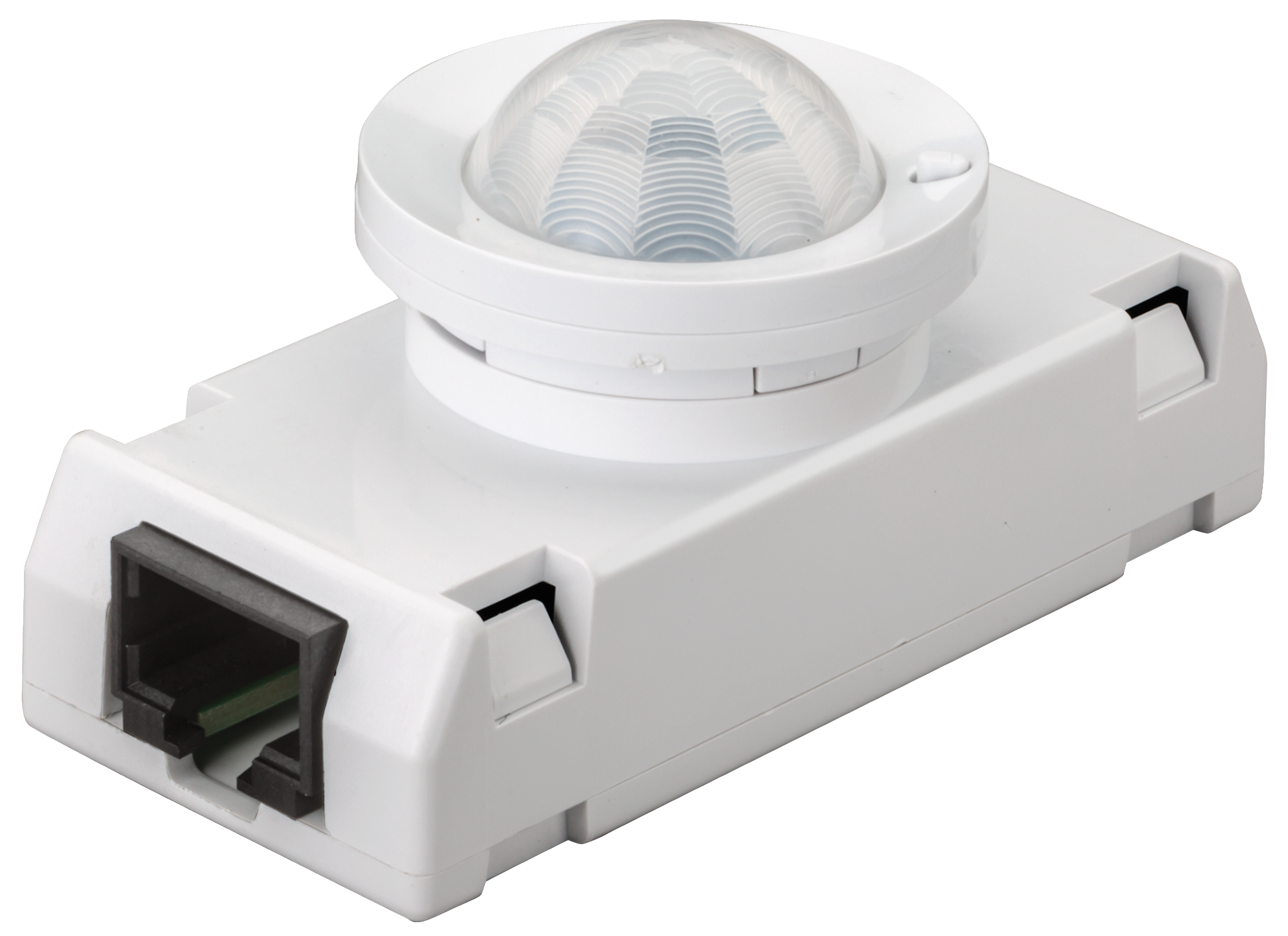

The nES 7 is a small passive infrared occupancy sensor designed to be easily embedded into luminaires. This sensor provides excellent line of sight 360~176; PIR detection of small motion and walking motion. The nES 7 is ideal for small rooms without obstructions or areas with primarily walking motion (e.g. corridors, library stacks). Additionally, an optional integrated photocell enables daylight harvesting control as well. Typically one or more nES 7 sensors are paired with either nEPP5 D embedded relay pack(s) or nLight-enabed relay pack(s) or panel.

For rooms like classrooms and private offices or any space with obstructions, the nES PDT 7 dual technology sensor is recommend.
PIR Occupancy Detection
360~194;~186; Coverage
Lens Rotates 15~194;~186; - Enables Adjustment after Installation
Communicates w/ nLight Network
Remotely Configurable/Upgradeable
Adjustable Time Delay
Non-Volatile Settings Memory
Green LED Indicator
Read More
Read Less
A+ Capable Yes
Control Device Type Daylight Sensor, Occupancy Sensor
Mounting Type Fixture Embedded
Networkable Control Networkable Control
Product Type Sensor
Finish Gloss
Voltage Low Voltage
Compliance Listing DLC Standard, ROHS
Regulatory Listing C-UR, UR
Series NES
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET nes_7 nLight nES 7 Passive Infrared Occupancy Sensor Spec Sheet 2/15/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    2D Model nes7_dwg.dwg
    2D Model nes7lt_dwg.dwg
    Installation Instructions IN-1.3.pdf nLight Occupancy Sensor Programming Instructions View
    Riser Model nes riser.dwg nES riser model
