LBR4 Round Series

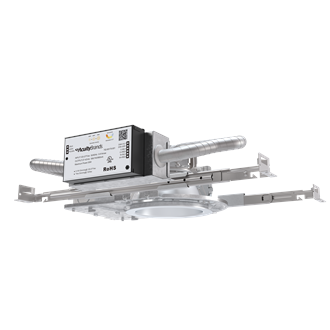

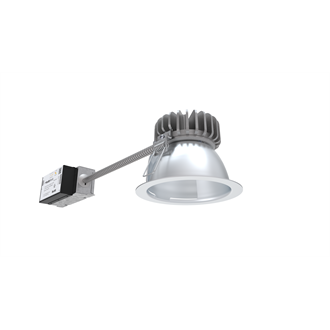

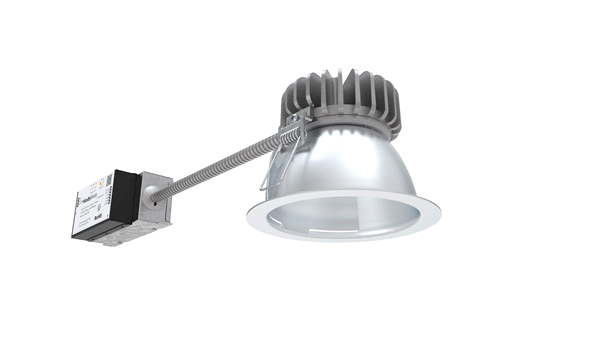

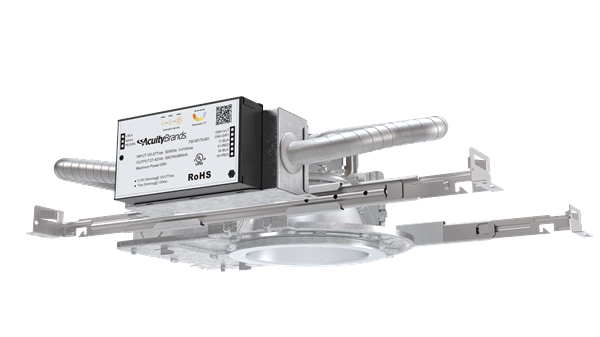

LBR 4” Round Retrofit | Remodel | New Construction Downlight

By Lithonia Lighting

    Switchable Lumens  Switchable CCTs
  • Overview
  • Specifications
LBR is everything you need in a downlight at an affordable price. Whether it’s the seamless install from-below design, abundant energy savings or maintaining glare-free aesthetics, LBR is the perfect solution for any renovation, remodel or new construction project. To top it off, LBR has a broad offering of aperture sizes, drivers, accessories, and switchable CCTs and lumens.

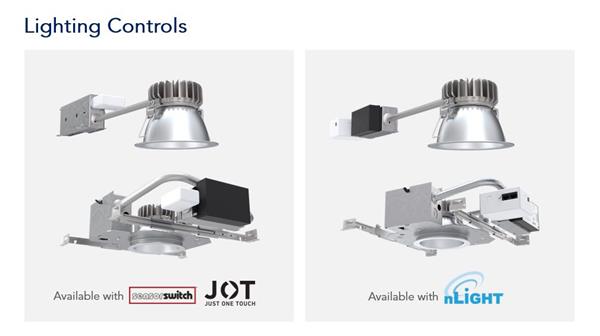

LBR4 is now available with SensorSwitch JOT!
  • Wireless, app-free solution to single room lighting control
  • Absolutely no 0-10V control wires and no mobile apps are needed to install and pair JOT enabled products
  • Lightning speed installation right out of the box all and pair JOT enabled products
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, Switchable
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 90
Product Type Retrofit Kit
Compliance Listing Chicago Plenum
Environmental Listing ASTM Airtight, Damp Location, Wet Location
Regulatory Listing CSA, UL
Dimming Protocol 0-10V, DALI, Electronic Low Voltage, Triac
Fixture Wattage 10, 11.2, 11.6, 12.8, 13.4, 13.5, 14.2, 14.8, 15.5, 15.8, 16.4, 21, 21.8, 24.1, 25, 25.5, 25.6, 27, 27.1, 28.6, 28.7, 29.5, 31, 31.7, 33.1, 34.7, 35.4, 37.5, 37.6, 39, 40.6, 41.5, 6.8, 8, 8.2, 8.53, 9.75, 9.8, 18, 18.8, 20.2
Voltage Rating 120-277, 347
Trim Style Open, Single Wallwash
Color Black, Clear, White
Mounting Type Recessed
Series LBR4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LBR4.pdf LBR4 Round Series 12/13/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LBR-LDN-LDN Switchable Dimming Compatibility Dimming Compatibility Cheat Sheet 8/20/2020 View
    Installation Instructions 912-00125_C.1_LBR Installation Instructions.pdf LBR Retrofit main installation instructions 8/24/2020 View
    Installation Instructions 912-00158-001_B.1 Smash Plate.pdf Smash Plate mounting pan installations and instruction for use 8/24/2020 View
    Installation Instructions 912-00171-001_A.3_Goof Ring Installation Instr.pdf 4", 6" & 8" round goof ring installation instructions 8/24/2020 View
    Installation Instructions 912-00184-001_RevC_LBR 4IN-6IN PF Install.pdf LBR 4IN & 6IN PF mounting frame accessory installation instructions 4/5/2021 View
    Installation Instructions 912-00217-LBR_CP_Installation_Instructions.pdf LBR CP Installation Instructions 12/10/2020 View
    Installation Instructions 912-00226-LBR _347_ Installation.pdf LBR 347V Installation Instructions 2/25/2021 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet Lithonia Basic Retrofit Sell Sheet LBR Retrofit Sell Sheet 8/27/2021 View
    Sell Sheet LL_398514.29_LBR New Construction Sell Sheet_0721.pdf LBR New Construction Sell Sheet 8/26/2021 View
