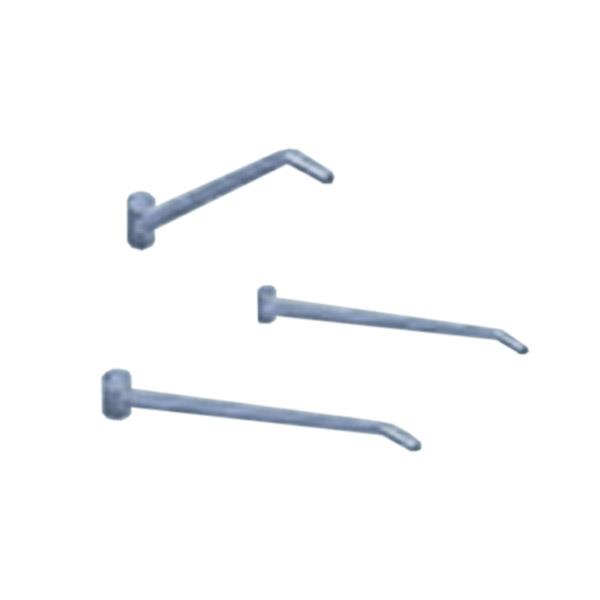

BR Upsweep Arms

Non-Decorative Arms and Brackets
  • Overview
  • Specifications
Read More
Read Less
Product Type Arm
Arm Mounting Type HUB
Mounting Type Post Top
Primary Material Aluminum
Architectural Style Utility
Series BR1210, BR1209, BR1212, BR1211, BR1214, BR1213
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet BR_Upsweep.pdf BR Upsweep Arms 3/20/2024 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets Pole Arm Selection Guide.xlsx Arms & Brackets Selection Guide 1/12/2021
  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD BR1211 1.dwg 2D DWG Aluminum upswept arm Dimensions 3/29/2023
    CAD BR1211-2.dwg 2D DWG Aluminum upswept arm Dimensions 3/29/2023

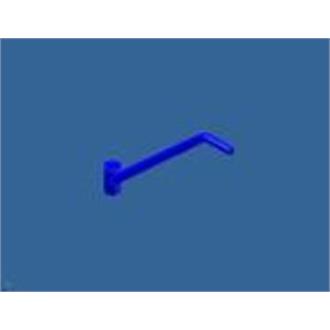

    Holophane DWGs BR1209 1.pdf BR1209 1 Aluminum Upswept single arm 45IN Span, Fits 4.5IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1209 2.pdf BR1209 2 Aluminum 2@180 Upswept arm 45IN Span, Fits 4.5IN OD Pole Top 3/20/2024 View

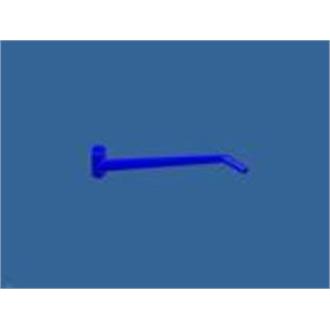

    Holophane DWGs BR1210 1.pdf BR1210 1Aluminum Upswept single arm 68IN Span, Fits 4.5IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1210-2.pdf BR1210 2 Aluminum 2@180 Upswept arm 68IN Span, Fits 4.5IN OD Pole Top 3/20/2024 View

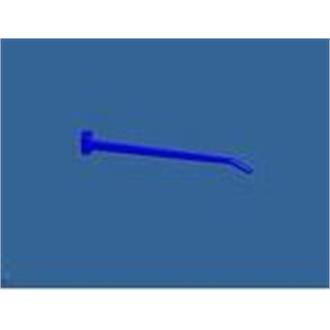

    Holophane DWGs BR1211-1.pdf BR1211-1 Aluminum Upswept single arm 90IN Span, Fits 4.5IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1211-2.pdf BR1211-2 Aluminum 2@180 Upswept arm 90IN Span, Fits 4.5IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1212-1.pdf BR1212-1 Aluminum Upswept single arm 45IN Span, Fits 6 IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1212-2.pdf BR1212-2 Aluminum 2@180 Upswept arm 45IN Span, Fits 6 IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1213-1.pdf BR1213-1 Aluminum Upswept single arm 68IN Span, Fits 6 IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1213-2.pdf BR1213-2 Aluminum 2@180 Upswept arm 68IN Span, Fits 6 IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1214-1.pdf BR1214-1 Aluminum Upswept single arm 90IN Span, Fits 6 IN OD Pole Top 3/20/2024 View
    Holophane DWGs BR1214-2.pdf BR1214-1 Aluminum 2@180 Upswept arm 90IN Span, Fits 6 IN OD Pole Top 3/20/2024 View
