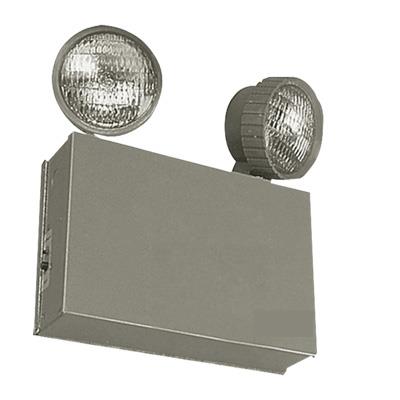

C4224 Emergency Lighting Unit

Cortez™ Die-Formed Steel Emergency Unit Discontinued

By Holophane

  • Overview
  • Specifications
Read More
Read Less
Light Source Halogen, Incandescent
Regulatory Listing NFPA 101, NFPA 70, NOM, UL
Product Type Emergency Lighting Unit
Voltage Rating 120/277
Mounting Type Surface
Mounting Location Wall
Primary Material Steel
Series C4224

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet C42-16-24-36-50.pdf 16W, 24W, 36W, 50W 3/8/2023 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions EMCSA00866 C4250, C42125, C42180, C42275 Large Housing, Installation instruction sheet 6/13/2017 View
    Installation Instructions EMCSA00873 C4216, C4224, C4236 Small Housing, Installation instruction sheet 7/19/2016 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Holophane Emergency Cross Over Sheet.pdf A quick reference guide to the Holophane Emergency products updated in Feb 2016. 4/6/2016 View
    Brochures Holophane Life Safety Portfolio Holophane Life Safety Portfolio 12/27/2021 View
    White Paper Non Title 20 Life Safety Flyer Non Title 20 Life Safety Flyer 2/24/2021 View
